Airwave Technologies AT-5210 2-Person Digital Wireless Handheld Microphone System (A: 470 to 489 MHz)
Airwave Technologies AT-5210 Overview
The Airwave Technologies AT-5210 is a 5th-generation, dual-channel digital wireless handheld microphone system engineered for professional audio applications, including live events, conferences, performances, schools, theaters, and houses of worship. Designed for two presenters or performers, it includes two lightweight handheld microphone/transmitters, each equipped with a directional microphone capsule, and a dual-channel receiver optimized for rack mounting in portable flight cases or permanent installations.
With intuitive, user-friendly features, the AT-5210 delivers reliable wireless performance and crystal-clear digital audio at distances of up to 328', making it an ideal solution for presenters, educators, meeting participants, clergy, performers, and lecturers alike.

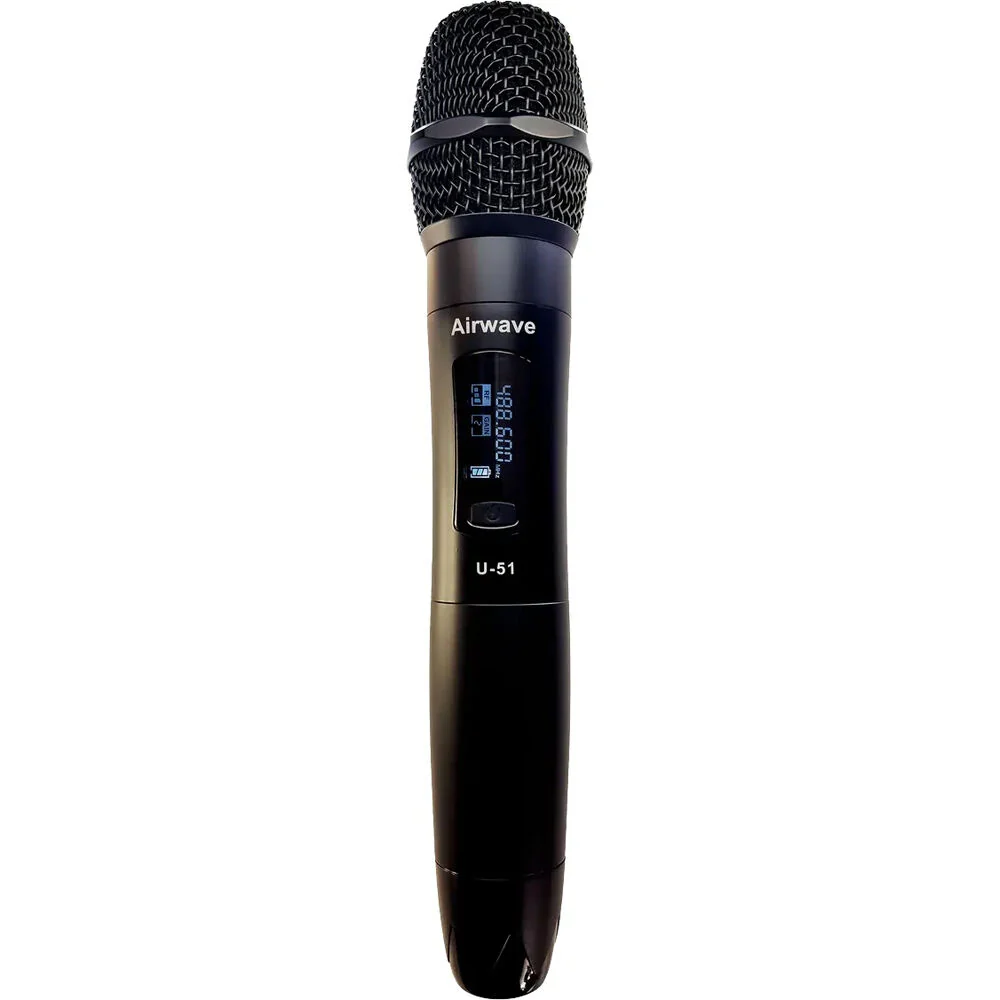

Two U-51 Handheld Microphone/Transmitters
- The U-51 handheld microphone/transmitters combine a lightweight, ergonomic design with user-friendly functionality. Each unit features a clear LCD screen that displays key operational information at a glance.
- Engineered specifically for speech and vocal performance, the U-51 capsule utilizes a directional pickup pattern that focuses on the speaker?s voice while minimizing background noise. This helps reduce the risk of feedback, even on loud or acoustically challenging stages.
- Each transmitter runs for up to 8 hours on two AA batteries and offers selectable RF output power levels (2, 10, or 30mW), allowing for reliable performance, even in difficult RF environments. The wireless range extends up to 328', providing flexibility for larger venues.

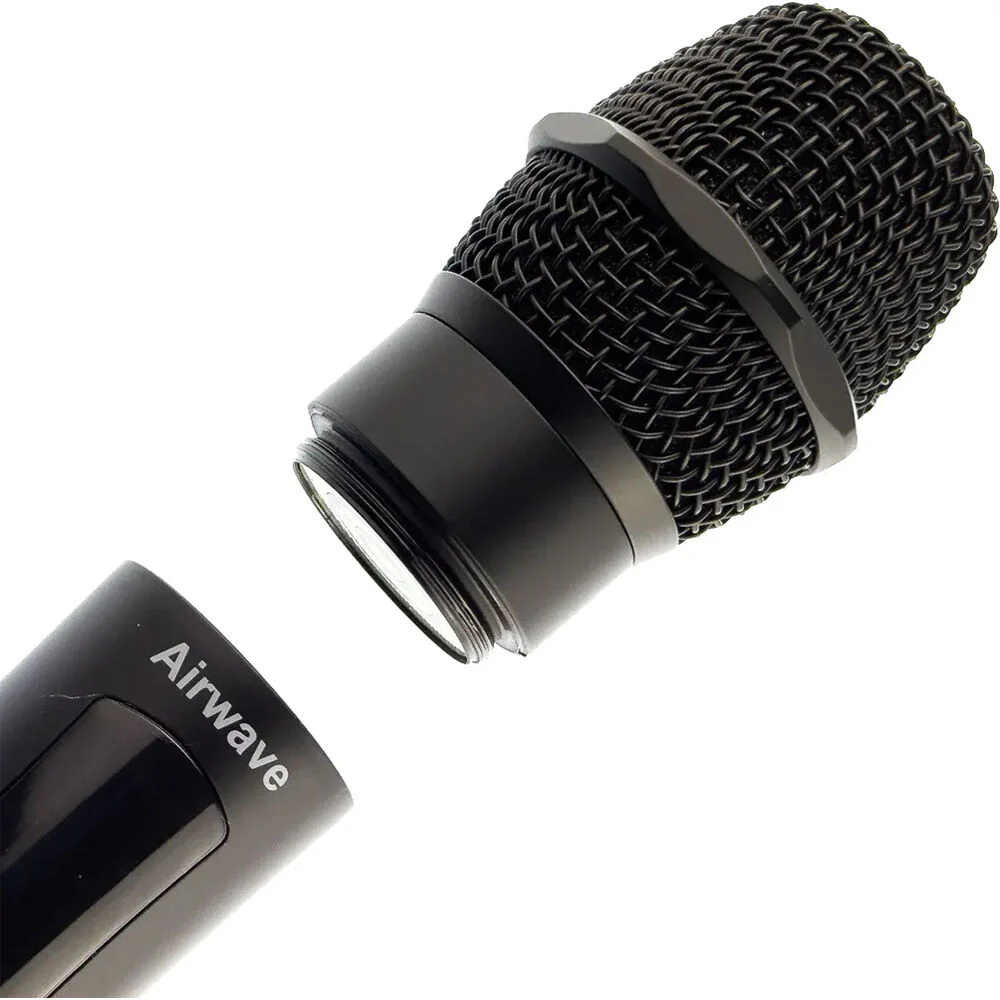

- For added convenience, the power switch doubles as a mute function, and the microphone capsule is user-replaceable, allowing for easy maintenance or future upgrades.

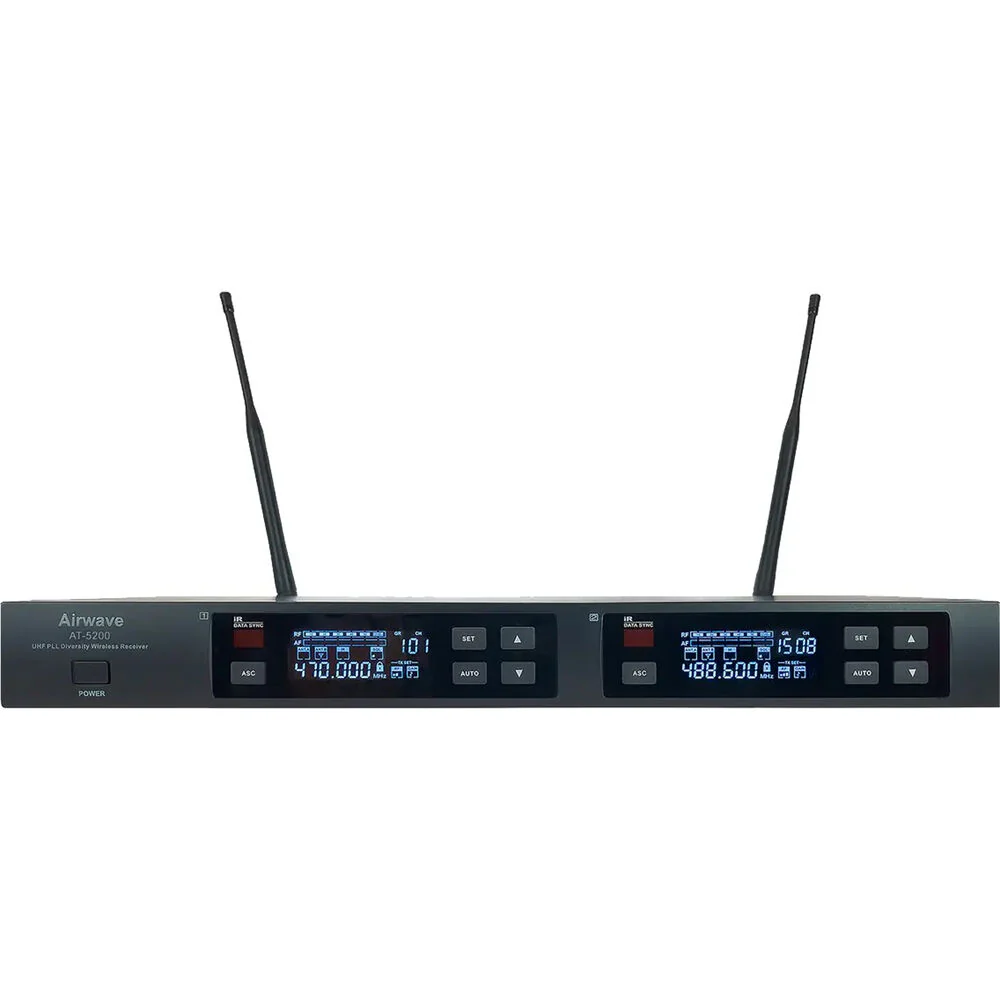

AT-5200 Dual-Channel Wireless Microphone Receiver
- The AT-5200 is a professional-grade, dual-channel wireless receiver housed in a rackmount chassis. It features two independent LCD displays showing RF signal strength, battery status, and audio output levels. Each channel offers 63 dB of gain control, along with individual balanced XLR outputs. A mixed-channel output is also available via both XLR and 1/4" connectors.
- Equipped with two detachable antennas and an automatic frequency scan function, the AT-5200 scans 144 frequencies to locate and lock onto the clearest available channels. Synchronizing the receiver with the handheld transmitters is quick and seamless via infrared pairing.
System Configuration Guidelines:
- For setups using up to 2 receivers (4 channels), no antenna combiner is required under normal conditions.
- For larger systems using 3 to 5 receivers (6 to 10 channels), an approved antenna combiner is strongly recommended for optimal performance.
UPC: 850054466365
Items Included
- Airwave Technologies AT-5210 2-Person Digital Wireless Handheld Microphone System (A: 470 to 489 MHz)
- 2 x AT-U51 Handheld Microphone/Transmitter
- AT-5200 Dual-Channel Wireless Receiver
- 2 x Receiver Antenna
- 4 x AA Battery
- AC Power Adapter
- Antenna Front-Mount Kit (Cables, BNC Connectors)
- 2 x Rack Ears with Screws
- Limited 1-Year Manufacturer Warranty
Not Included
-
XLR CablesEssential
Additional Resources
Airwave Technologies AT-5210 Specs
Key Specs
| Wireless Technology |
Digital UHF
|
| Diversity |
Non-Diversity
|
| Max Operating Range |
328' / 100Ā m
|
| Receiver Type |
1x Rackmount (19")
|
| Number of Audio Channels |
2
|
| Included Transmitters |
2x Handheld
|
| Microphone Type |
2x Handheld
|
| Included Charging Case |
No
|
System
| Wireless Technology |
Digital UHF
|
| Diversity |
Non-Diversity
|
| RF Frequency Band |
A: 470 to 489 MHz
|
| Number of RF Channel Frequencies |
144
|
| Max Operating Range |
328' / 100Ā m
|
| Max Transmitters per Band |
1
|
| Dynamic Range |
102 dB
|
| Encryption |
No
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
Receiver
| Receiver Type |
1x Rackmount (19")
|
| Mounting Options |
Rackmount (with Included Hardware, 1 U)
|
| Antenna |
2x Removable BNC
|
| Number of Audio Channels |
2
|

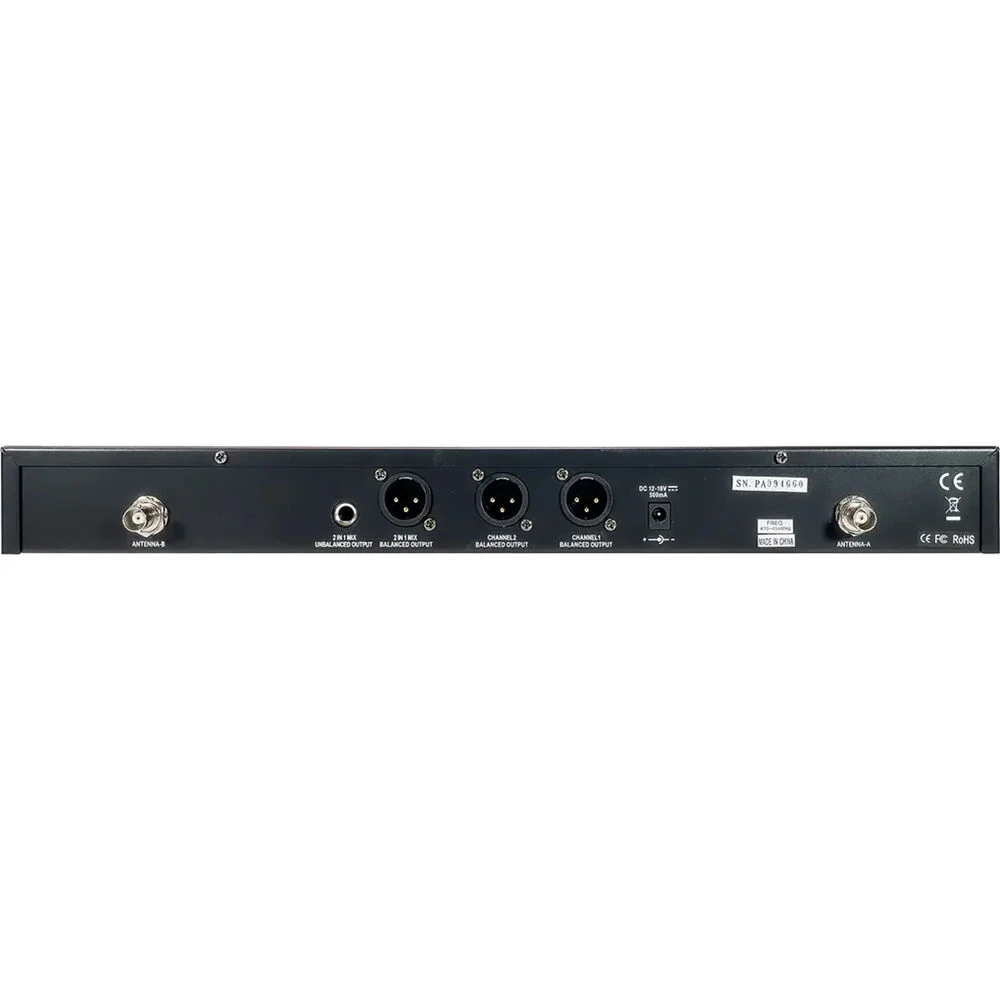

| Audio I/O |
1x 1/4" TRS Unbalanced Output
3x XLR 3-Pin Balanced Output Ā |
| Network I/O |
No
|
| USB/Lightning Connectivity |
No
|
| Display |
LCD (Non-Backlit)
|
| Power Requirements |
AC/DC Power Adapter
|
Transmitters
| Included Transmitters |
2x Handheld
|
| RF Output Power |
2 / 10 / 30 mW
|
| Antenna |
Internal
|
| Input Level |
Microphone
|
| Audio I/O |
No
|
| Bias/Plug-In & Phantom Power |
N/A - No External Mic Support
|
| USB I/O |
No
|
| Muting |
Off/On Switch
|
| Gain Range |
0 to +63 dB (1 dB Steps)
|
| Auto-Level/Gain |
No
|
| Frequency Response |
50 Hz to 15 kHz
|
| Sync Method |
IR
|
| Display |
LCD (Non-Backlit)
|
Microphones
| Microphone Type |
2x Handheld
|
| Polar Pattern |
Unidirectional
|
| Frequency Response |
50 Hz to 15 kHz
|
| Color |
Black
|
Power
| Transmitter Battery Type |
2x AA
|
| Transmitter Battery Life |
8 Hour
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
12 VDC at 0.5 A (Included)
|
Physical
| Environmental Resistance |
No
|
| Dimensions |
Receiver:
16.1 x 6.2 x 1.7" / 40.9 x 15.7 x 4.3Ā cm Transmitter: 9.8 x 1.9" / 24.9 x 4.8Ā cm |
| Weight |
Receiver:
3.8Ā lb / 1.7Ā kg Transmitter: 12.7Ā oz / 360Ā g |
Packaging Info
| Package Weight |
7.535 lb
|
| Box Dimensions (LxWxH) |
20.2 x 15.6 x 3"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
