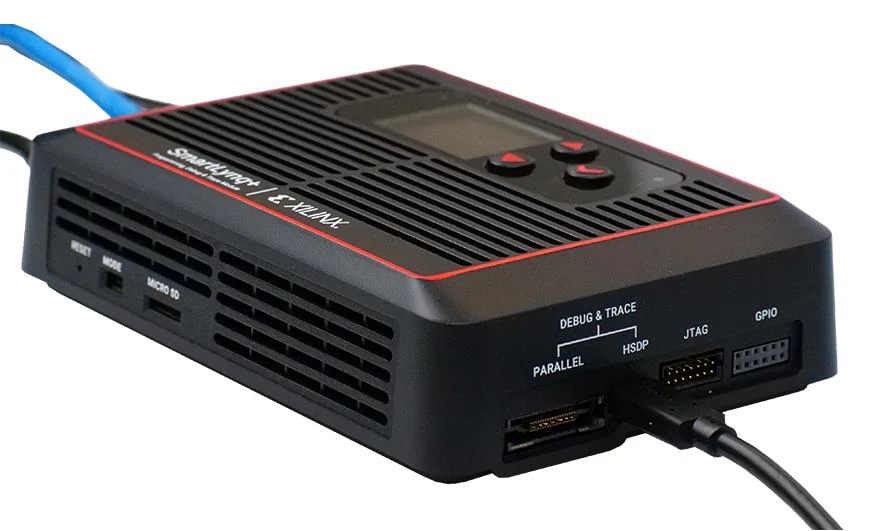

AMD - Xilinx HW-SMARTLYNQ-PLUS-G HW-SMARTLYNQ-PLUS-G Debugger / Programmer Versal Acap ARM Cortex-A72 Microcontroller

SmartLynq+ module is built for high-speed debug and trace, primarily targeting designs using Versal� platform. The SmartLynq+ modules provide up to 28X faster Linux download time via high-speed debug port and much-improved configuration throughput performance over previous debug products to accelerate the development cycle. The SmartLynq+ module supports both serial and parallel trace, with up to 14GB of trace memory to capture a detailed picture of design execution history. The SmartLynq+ module is fully compatible with Versal� ACAP evaluation boards so that users have full visibility to the Versal architecture, including AI Engines, programmable network on chip, DDR memory controller, and 100G multirate Ethernet cores. The SmartLynq+ module features various host and target connectivity options, making it the most flexible debug product in the portfolio. Software packages, with Python for the integrated debugger, provide maximum flexibility by enabling remote access and sharing.

• 28X faster Linux download to Versalâ�¢ devices vs. SmartLynq data cable
• Iterations reduced from minutes to seconds
• Maximize development productivity by faster configuration time
• In-depth debug for Versal architecture, including AI Engines
• Cohesive and time-correlated debug of all subsystems
• Daisy-chain mode to debug multiple devices on a single board
• 100X faster egress data capture vs. JTAGâ��
• Industry's largest trace memory (up to 14GB) to capture execution history
• 10Gb/s serial and 3.2Gb/s parallel trace capability
• Continuous debug & trace visibility during boot

Contents

SmartLynq+ debug & trace module, JTAG ribbon boot, USB cable, JTAG flying wire adapter cable, GPIO flying lead cable, Ethernet cable, Power supply, USB type-C cable, Micro SD card.

Other details

Brand	AMD - XILINX
Part Number	HW-SMARTLYNQ-PLUS-G
Quantity	Each
Technical Data Sheet EN
Enhanced Product Overview EN
