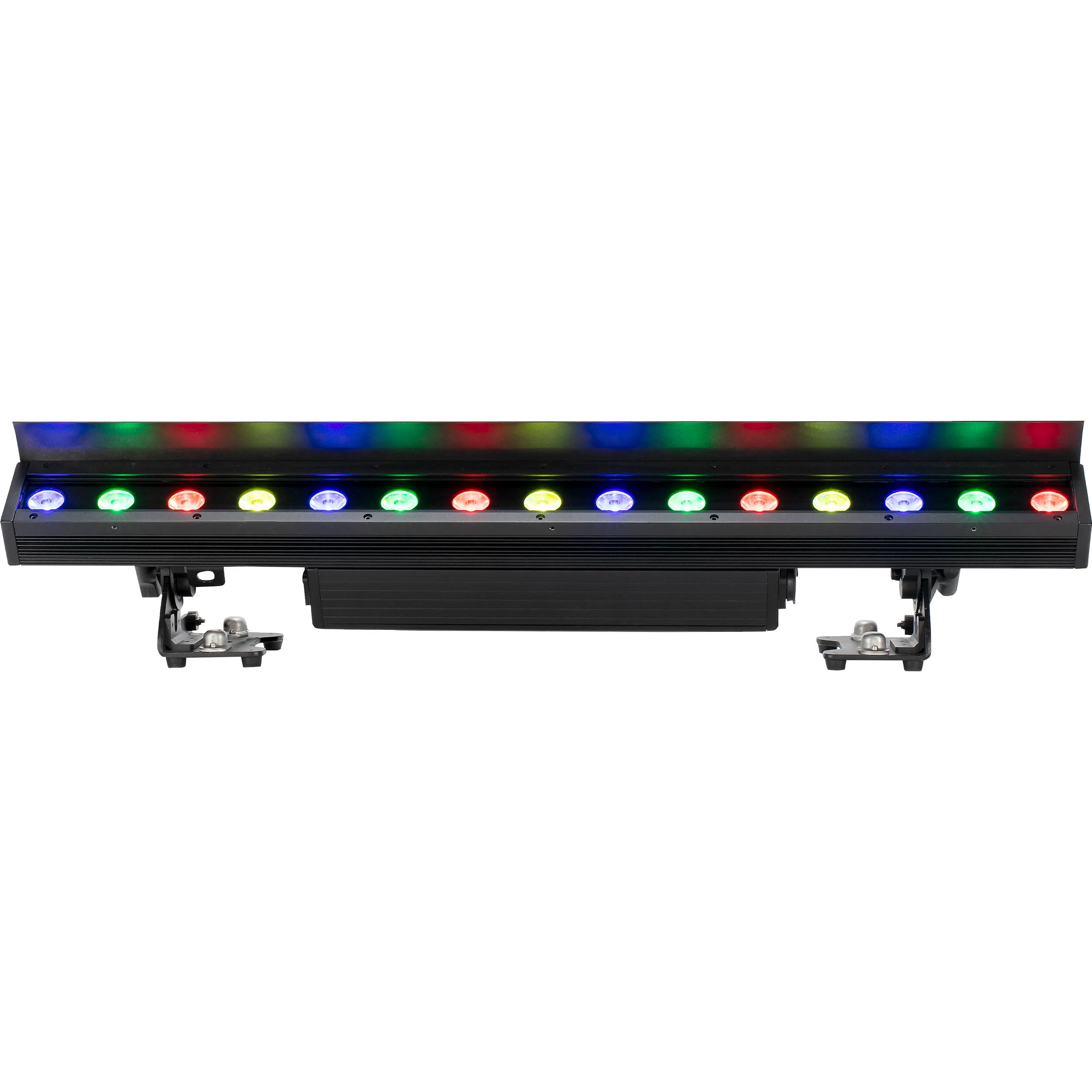

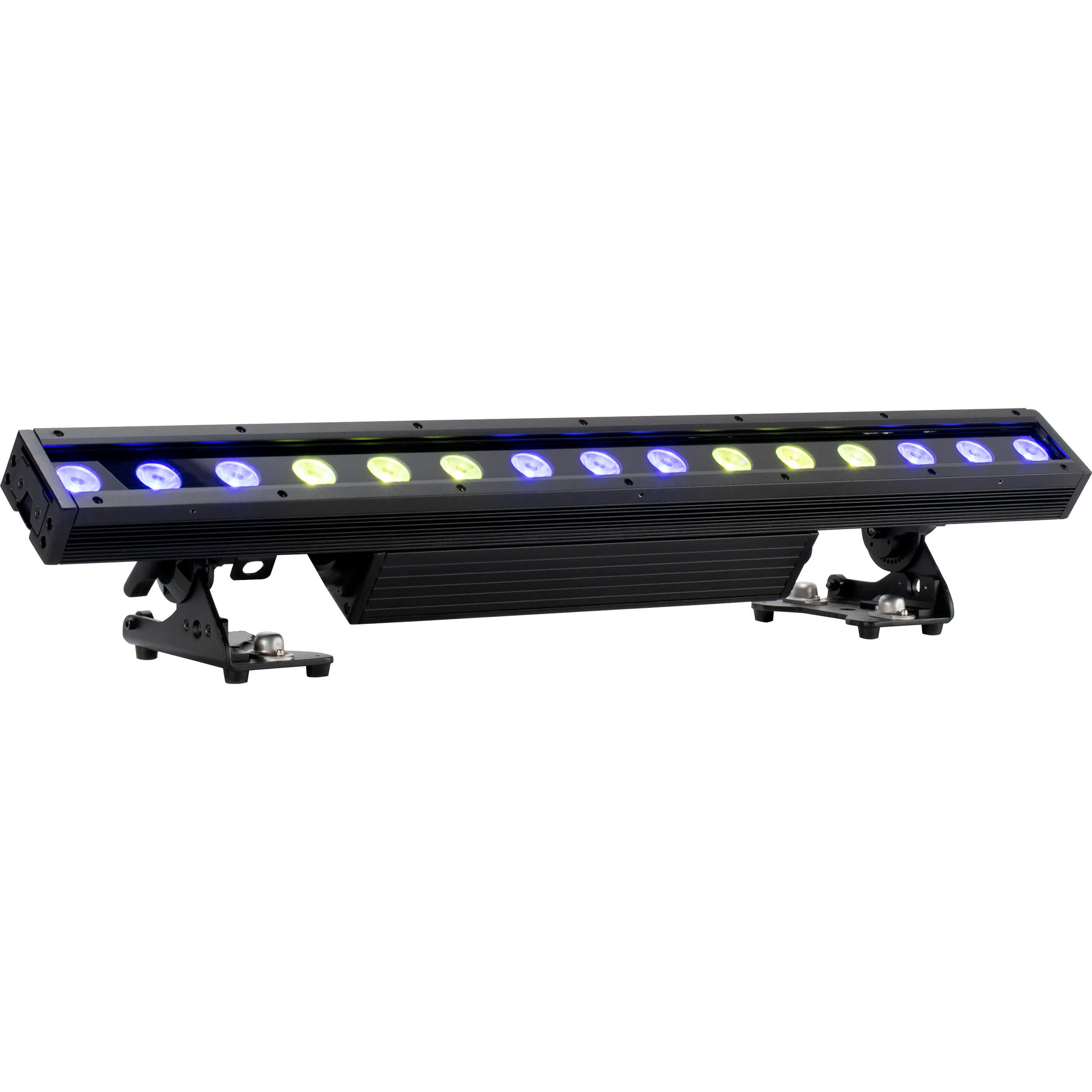

American DJ Encore LB15IP Quad-Color IP-65 Linear LED Wash
American DJ LB15IP Overview
Lighting professionals looking for a linear bar fixture rated for outdoor use with pixel mapping functionality will be impressed with the American DJ Encore LB15IP, an IP65-rated, quad-color linear LED wash fixture well suited for rental, event production, and concert production applications.
The fixture utilizes fifteen 20W quad-color 4-in-1 (red, green, blue, lime) LEDs that offer a huge variety of color options, including white light, variable color temperature, and high CRI. Each LED can be controlled independently, allowing for pixel mapping effects. This IP65 fixture is sealed to prevent the ingress of liquid, snow, dust, and sand, making it suitable for temporary outdoor use, as well as for indoor applications where the fixture may be subject to liquid spillage or come into contact with excessive dust or dirt. The Encore LB15IP includes a glare shield, 25Ā° frost filter, two Omega brackets, and a locking outdoor power cord.
- 15 x 20W quad RGBL LEDs (4-in-1: red, green, blue, and lime)
- Beam angle: 11Ā° (25Ā° with diffusion filter attached)
- 5982 lumens
- Linear color temperature control (2700 to 7000K)
- Preset color temperatures (2700, 3200, 4000, 5600, 6500, and 7000K)Ā Ā
- Ā Individual pixel controllable
- 16-bit fine color control (red, green, blue, and lime)
- 64 built-in color macros
- 4-button, DMX digital display on the rear panel
- Five operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, and DMX Controlled
- Supports RDM (Remote Device Management)
- With wired digital communication network
- Six selectable dimming modes (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
- Four selectable dim curves (Linear, Square Inv. Squa, S-Curve)
- Adjustable refresh rate (14 presets from 900 to 25,000 Hz)Ā
- Flicker-free operation (no flickering on camera)
- LED pulse and strobe effectĀ
- Electronic dimming: 0 to 100%Ā
- 10 DMX modes: 4, 7, 8, 13, 16, 60, 63, 69, 72, and 120 channelĀ
- Adjustable fan modes
- WiFLY EXR wireless DMX built-in (2500' line of sight)
- IP65-rated against liquid, snow, dust, and sand
- All-metal construction
- IP-rated rubber covers protect in/out locking power connectors and IP-rated 5-pin sockets
- Locking, outdoor in/out power connectors
- Data linkable via 5-pin DMX connections
- Daisy Chain: 5 at 120V, 10 at 220V
- Glare shield
- 25Ā° frost filter
- Two Omega brackets
- Locking outdoor power cord
In the Box
- American DJ Encore LB15IP Quad-Color IP-65 Linear LED Wash
- Glare Shield
- 25Ā° Frost Filter
- 2 x Omega Bracket
- Locking Outdoor Power Cord
American DJ LB15IP Specs
| Fixture Type | Linear/Bar Light |
| Light Source | 15 x Color LED - 20 W |
| Colors | Red Green Blue Lime |
| Pixel Configuration | 15 x Zones |
| Color Temperature | 2700 to 7000K |
| Lumen Output | 5982 Lumens |
| Beam Angle | 11Ā° (without Filter) 25Ā° (with Filter) |
| Iris | No |
| Zoom Adjustment | None |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
| Operating Modes | Color Dimmer, DMX, Program, Sound-Active, Static Color |
| Macros / Programs | 64 x Color Macro |
| Effects | Pulse Strobe |
| Gobos | None |
| Color Resolution | 16-Bit per Color |
| Color Accuracy Index | CRI: 89.3 |
| Refresh Rate | 900 Hz to 25,000 Hz (Adjustable) |
| Control Protocols | DMX512, WiFly |
| DMX Channel Modes | 10 Mode(s): 4 / 7 / 8 / 13 / 16 / 60 / 63 / 69 / 72 / 120-Channel |
| Remote Control | None |
| App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless Range | WiFly: 2500' / 762Ā m |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Not Specified by Manufacturer |
| Power / Current Consumption | 198 W |
| Power Linking | 5 Units at 120Ā VAC 10 Units at 230Ā VAC |
| IP Rating | IP65 |
| Mounting | Floor Base, Mounting Bracket, Omega Bracket |
| Included Accessories | 1 x Filter 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Fan (Variable Speed) |
| Certifications | cETLus *as per Manufacturer |
| Dimensions | 36.1 x 8.3 x 5.9" / 91.7 x 21.1 x 15Ā cm |
| Weight | 19.5Ā lb / 8.8Ā kg |
