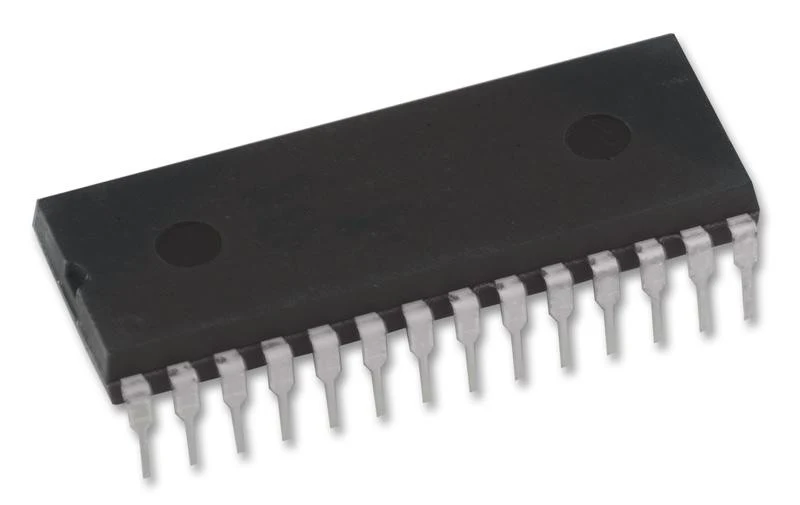

AMIC A623308A-70SF SRAM, 64 Kbit, 8K x 8bit, 4.5V to 5.5V, DIP, 28 Pins, 70 ns
The A623308A-70SF is a 8K x 8-bit CMOS SRAM IC with low operating current 65536-bit static random access memory organized as 8192 words by 8-bit and operates on a voltage from 4.5 to 5.5V. Inputs and 3-state outputs are TTL compatible and allow for direct interfacing with common system bus structures. Minimum standby power is drawn by this device when CE is at a high level, independent of the other input levels. Data retention is guaranteed at a power supply voltage as low as 2V.
- Full static operation, no clock or refreshing required
- Common I/O using three-state output
Applications
Industrial, Communications & Networking
Product details
| Operating Temperature Min | 0�C |
| Supply Voltage Range | 4.5V to 5.5V |
| Operating Temperature Max | 70�C |
| Access Time | 70ns |
| No. of Pins | 28Pins |
| SRAM Memory Configuration | 8K x 8bit |
| Memory Size | 64Kbit |
| Product Range | - |
| Automotive Qualification Standard | - |
| Memory Case Style | DIP |
| Packaging | Each |
| MSL | - |
Other details
| Brand | AMIC |
| Part Number | A623308A-70SF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
