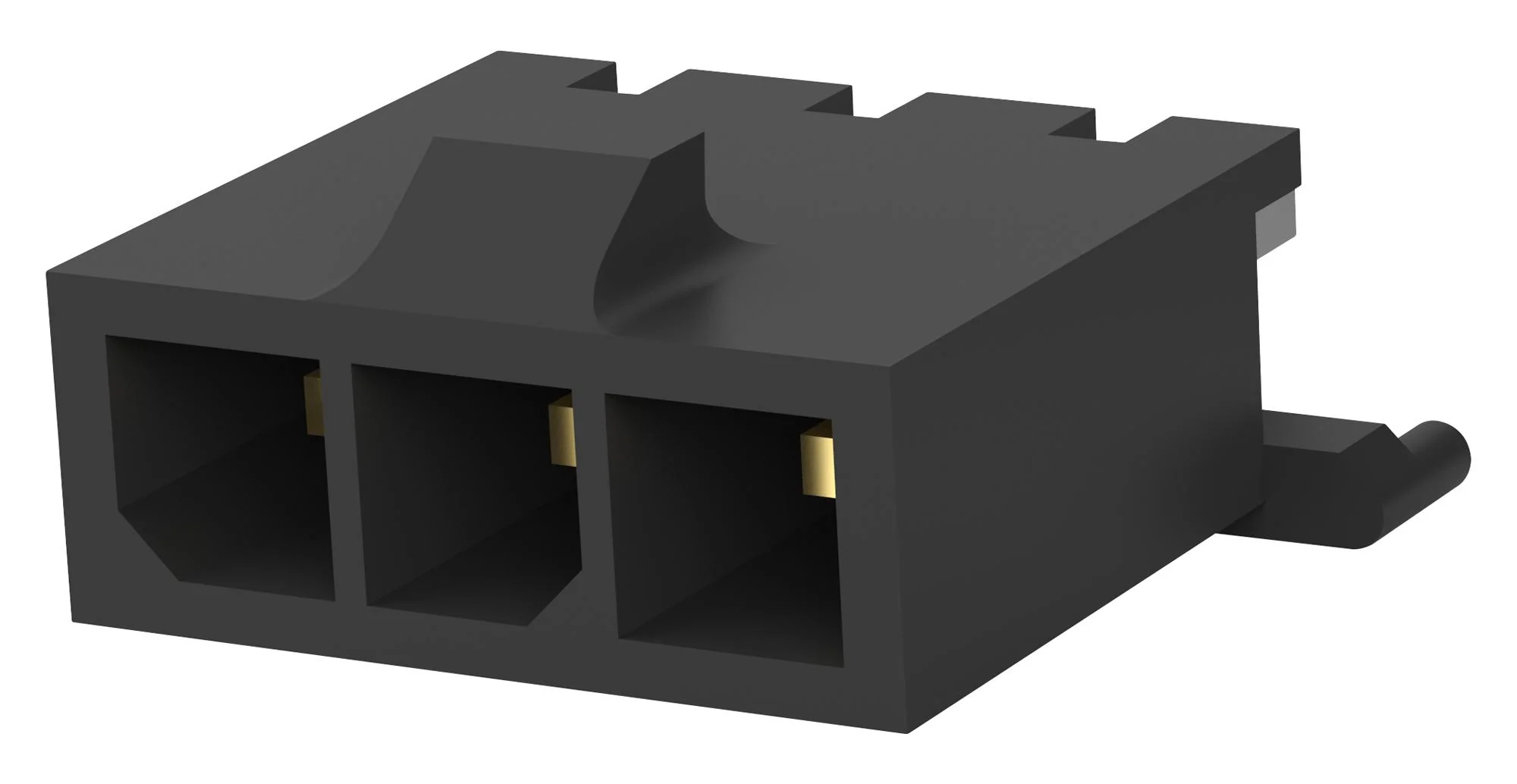

AMP - TE Connectivity 2-1445093-3 2-1445093-3 Pin Header Wire-to-Board 3 mm 1 Rows Contacts Through Hole Straight Micro MATE-N-LOK

The Micro MATE-N-LOK series low profile micro MATE-N-LOK Connector has a vertical height of less than 4.7mm - about 45% lower than other members of the product family. These soft-shell connectors include right-angle surface-mount headers and mating cable connectors. The line uses standard micro MATE-N-LOK contacts, with 24 to 20 and 30 to 26AWG wire ranges. The connector features positive latching to prevent unmating. The 94V-0-rated nylon housing is available in black or natural colours. Contacts are phosphor bronze with a choice of tin or gold plating. The connectors are rated up to 5A and 250V. This low-profile connector joins the proven micro MATE-N-LOK line of soft-shell connectors widely used in appliance, industrial machinery and home equipment. The low-profile version was created to meet the specific demands of the lighting industry, but applications are found in other industries, as well.

• Black and natural colours available
• Polarized housings help prevent connector mismating
• Positive latching to prevent unmating
• Right angle surface mount headers with surface mount hold-downs
• Utilizes standard Micro MATE-N-LOK contacts
• 2, 3 and 4 Positions available
• <4.7mm in Vertical height required

Applications

Consumer Electronics, Instrumentation, Industrial, Security, LED Lighting

Other details

Brand	AMP - TE CONNECTIVITY
Part Number	2-1445093-3
Quantity	Each
Technical Data Sheet EN
Application Note EN
Drawing EN
CAD Multiple Formats EN
Product Change Notice EN
3D Product Image EN
