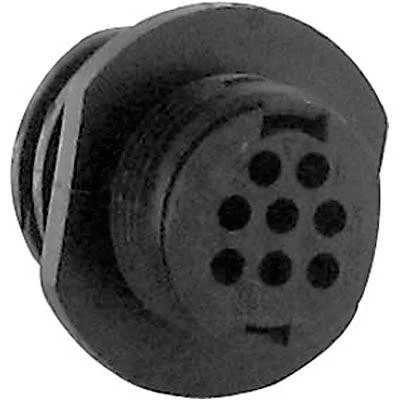

AMP - TE CONNECTIVITY 205841-2 Circular Connector, CPC Series 2, Cable Mount Receptacle, 8 Contacts, Thermoplastic Body
The 205841-2 is a 8-position straight Free-hanging Receptacle with pin type contacts and 11-9 insert arrangement. The standard sex circular plastic connector is made of UL94V-0 flame-rated black thermoplastic. The series 2 connector accepts size 20 DF (precision formed) and size 20 DM (screw-machined) pin contacts. Maximum current carrying capability is 7.5A.
- Lightweight
- Quick connect/disconnect capability with thread assist, positive detent coupling
- Polarized for proper mating of connector halves
- Keyed mating alignment
- Threaded coupling mating retention
- Contact protection
Applications
Commercial, Signal Processing, Power Management
Product details
| Connector Body Plating | - |
| No. of Contacts | 8Contacts |
| Contact Plating | - |
| Coupling Style | - |
| Circular Connector Shell Style | Cable Mount Receptacle |
| Product Range | CPC Series 2 |
| Contact Material | - |
| Circular Contact Type | - |
| Connector Body Material | Thermoplastic Body |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 205841-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Manufacturer Catalogue EN | |
| Operating Instructions EN | |
| 3D Product Image EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
