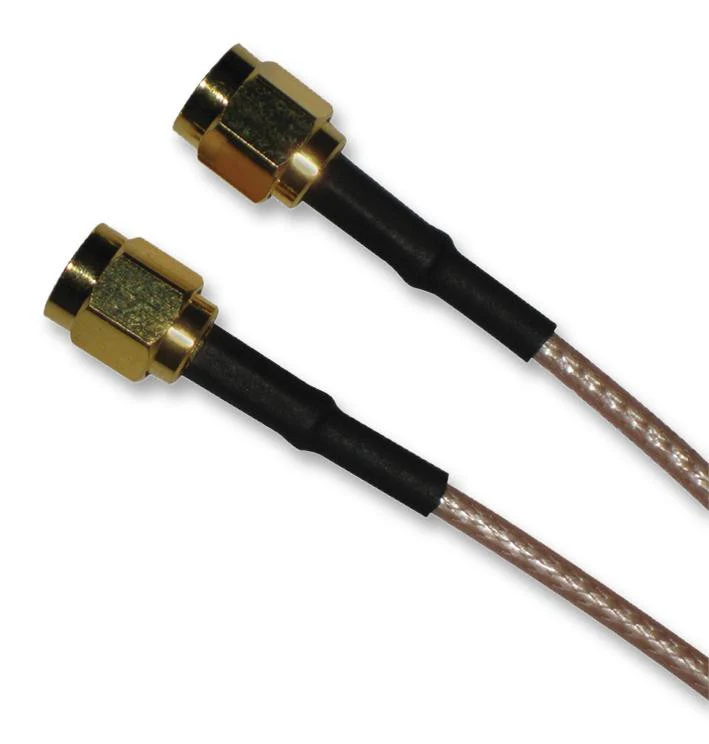

AMPHENOL CONNEX 135101-01-24.00 RF / Coaxial Cable Assembly, SMA Straight Plug, SMA Straight Plug, RG316, 50 ohm, 24 ", 609.6 mm
The 135101-01-24.00 is a 24-inch RG-316/U Coaxial Cable, SMA straight male to SMA straight male connectors. Available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable) cable. SMA connectors are semi-precision, sub-miniature, high-frequency connectors that offer reliable broadband performance. SMA assemblies on semi-rigid cable are DC to 18GHz and assemblies using flexible cable perform up to 12.4GHz (this varies by cable type). SMA connectors feature a thread-on interface that offers high mechanical strength, high durability and low VSWR. Conformable/semi rigid assemblies have no heat shrink tubing.
- 50R Nominal impedance
- Low VSWR SMA connector
- Semi-rigid assemblies
Applications
RF Communications, Commercial, Industrial
Product details
| Cable Length - Metric | 609.6mm |
| Connector Type B | SMA Straight Plug |
| Coaxial Cable Type | RG316 |
| Jacket Colour | Black |
| Connector Type A | SMA Straight Plug |
| Product Range | - |
| Cable Length - Imperial | 24" |
| Impedance | 50ohm |
Other details
| Brand | AMPHENOL CONNEX |
| Part Number | 135101-01-24.00 |
| Quantity | Each |
| Drawing EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
