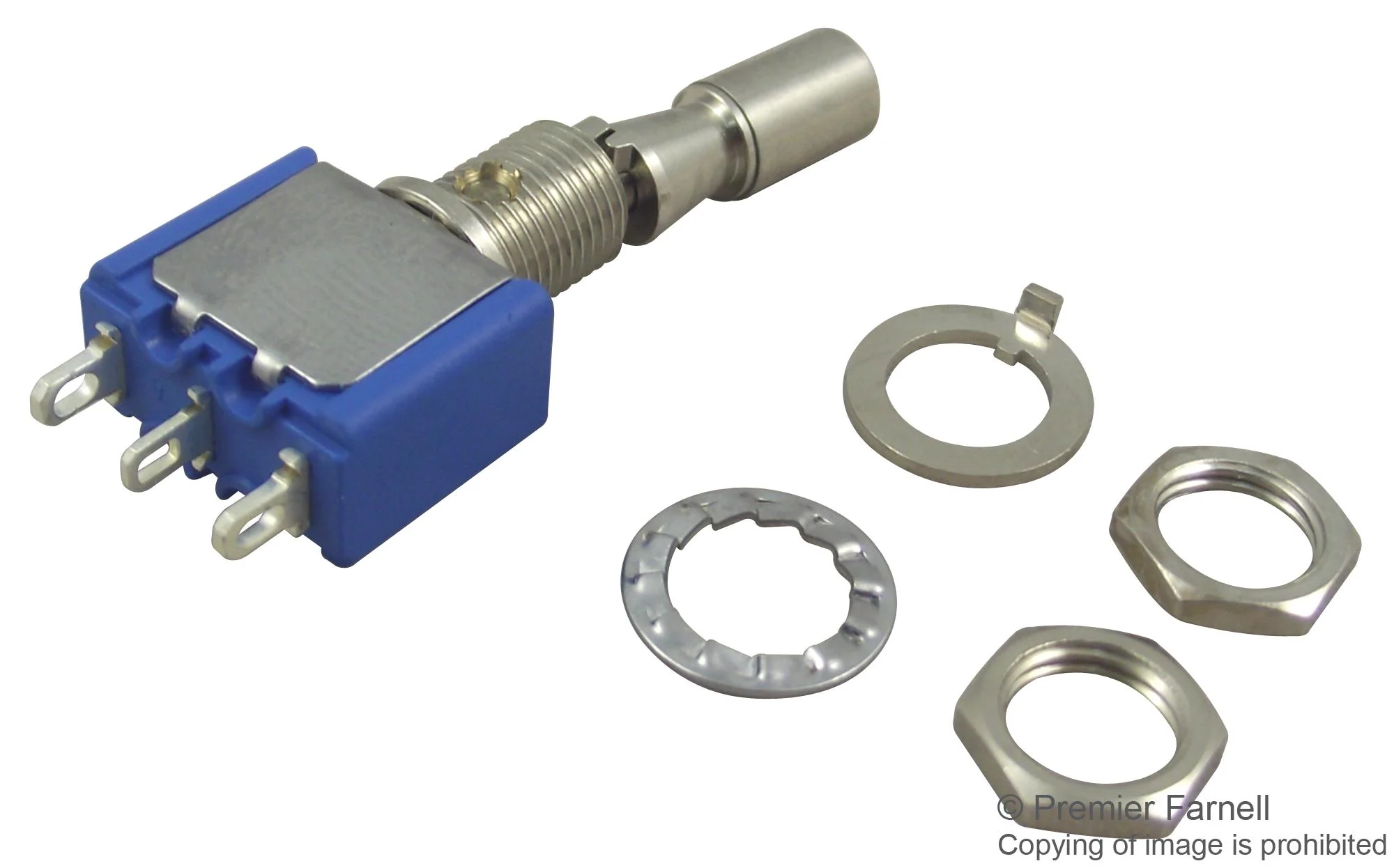

Apem 5636A2V 5636A2V Toggle Switch On-On Spdt Non Illuminated Panel Mount 4 A
The 5636A2V is a single-pole double-throw miniature Toggle Switch with solder lug terminals, threaded bushing versions for panel mounting and plain bushing versions for PCB, On-On switch operation, stainless steel housing, diallylphthalate (DAP) or high temperature plastic material (UL94-V0) case, nickel-plated brass actuator, silver contact, UL94HB polyamide paddles, vinyl lever caps and nickel-plated brass bushing.
- Epoxy terminal seal
- 10mR Initial contact resistance
- 1000MR at 500VDC Minimum insulation resistance
- 50000 Cycles electrical life at full load
- -40 to +85ĆĀ°C Operating temperature range
Audio, Automotive, Communications & Networking, Agriculture
Other details
| Brand | APEM |
| Part Number | 5636A2V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$8.15
Original: $27.16
-70%Apem 5636A2V 5636A2V Toggle Switch On-On Spdt Non Illuminated Panel Mount 4 Aā
$27.16
$8.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 5636A2V is a single-pole double-throw miniature Toggle Switch with solder lug terminals, threaded bushing versions for panel mounting and plain bushing versions for PCB, On-On switch operation, stainless steel housing, diallylphthalate (DAP) or high temperature plastic material (UL94-V0) case, nickel-plated brass actuator, silver contact, UL94HB polyamide paddles, vinyl lever caps and nickel-plated brass bushing.
- Epoxy terminal seal
- 10mR Initial contact resistance
- 1000MR at 500VDC Minimum insulation resistance
- 50000 Cycles electrical life at full load
- -40 to +85ĆĀ°C Operating temperature range
Audio, Automotive, Communications & Networking, Agriculture
Other details
| Brand | APEM |
| Part Number | 5636A2V |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
