AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount)
AVPro Edge MX-82RM Overview

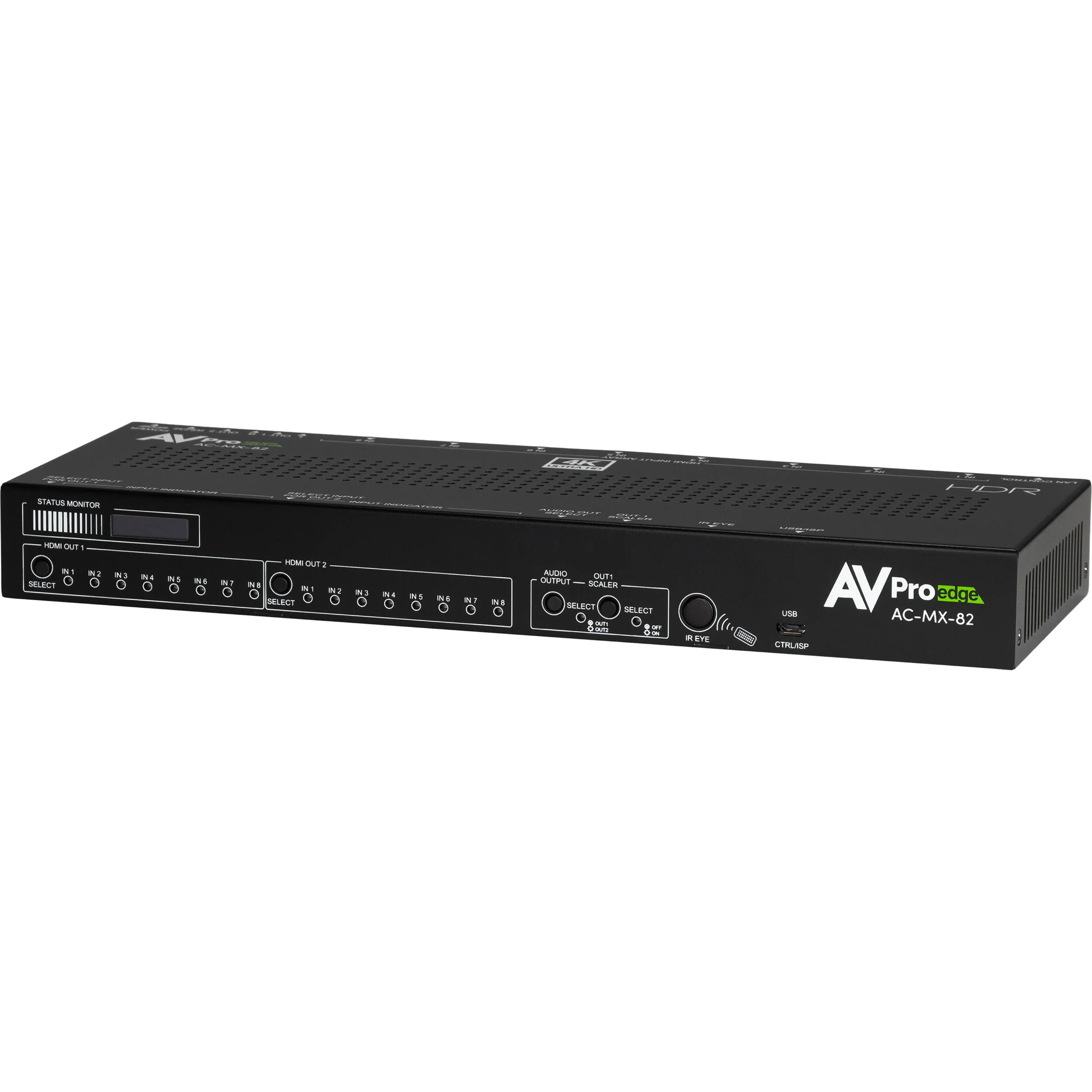

The rack-mountable AC-MX-82 8x2 HDMI 4K Matrix/Auto SwitcherĀ from AVPro Edge is a 4K matrix and auto-switch/AVR bypass unit with eight HDMI inputs and two HDMI outputs with HDR support. The unit features a bandwidth of up to 18 Gb/s and a resolution up to DCI 4K60. It supports Dolby Vision, HDR10+, HLG, and EDID management. The AC-MX-82 displays signals originating from Blu-ray, UHD Blu-ray, satellite receivers, game consoles, and PC sources on connected displays.
This switcher is suitable for bypassing AVRs and allows you to bypass uncompressed HDMI to the display, while running down-scaled video into a legacy AVR. The auto-switching feature allows you to feed a video signal into video conference coded and provides the option to output both auto-switches together or auto-switch only a single output.
4K up/down scaling technology is managed on each output. This allows you to upscale 1080p sources to 4K (with Image Enhancement), or downscale 4K sources to individual outputs that may not support 4K to 1080p. This switcher has dual-audio de-embedding, allowing you to extract 2-channel audio from the L/R port, and a digital optical TOSLINK output. The switcher supports IR, RS-232, and LAN control options.
In the Box
- AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount)
- IR Remote Control
- 3-Pin Terminal Connector
- 2 x Mounting Ears
- 12V Locking Power Supply
- Limited 10-Year Manufacturer Warranty
AVPro Edge MX-82RM Specs
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 10-Bit 4:4:4 YUV 10-Bit 4:4:4 RGB 10-Bit 4:2:2 YUV 10-Bit 4:2:2 RGB 10-Bit 4:2:0 YUV 10-Bit 4:2:0 RGB 12-Bit 4:4:4 YUV 12-Bit 4:4:4 RGB 12-Bit 4:2:2 YUV 12-Bit 4:2:2 RGB 12-Bit 4:2:0 YUV 12-Bit 4:2:0 RGB |
| Video Inputs | 8 x HDMI (HDMI 2.0b) |
| Input Video Format | HDMI (10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K at 60 fps |
| Embedded Audio Input | HDMI: 8-Channel |
| Video Outputs | 2 x HDMI (HDMI 2.0b) |
| Output Video Format | HDMI (10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) UHD 4K at 60 fps |
| Audio Outputs | 1 x 2RCA Analog 1 x TOSLINK S/PDIF |
| Output Audio Format | S/PDIF LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio Output | HDMI |
| Other I/O | 1 x RJ45 LAN 1 x 1/8" / 3.5 mm IR 1 x Block 3-Pin RS-232 1 x Micro-USB Control |
| HDCP Support | Version 2.3 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| Wi-Fi | None |
| Bluetooth | None |
| Power I/O | 1 x Barrel (12 VDC at 2 A) Output |
| Power Consumption | Power Supply: 100 to 240 VAC (12 W) |
| Operating Temperature | 23 to 125Ā°F / -5 to 51Ā°C |
| Storage Temperature | -4 to 140Ā°F / -20 to 60Ā°C |
| Operating Humidity | 5 to 90% |
| Rack Form Factor | 1 RU |
| Dimensions | 11.06 x 4.37 x 1.32" / 28.09 x 11.1 x 3.35Ā cm |
| Weight | 1.8Ā lb / 0.8Ā kg |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
