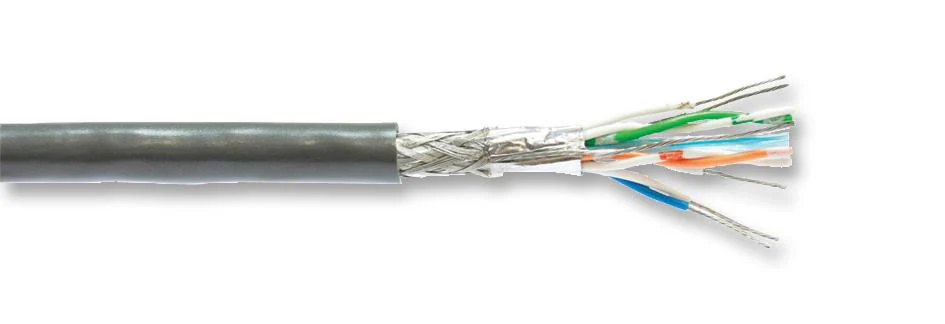

BELDEN 8103 Multipair Screened Cable, Computer, Per M, Chrome, 3 Pair, 24 AWG, 0.2 mm�
The 8103 is a 3-pair 6-conductor low capacitance Computer Cable with 24AWG stranded (7 x 32) tinned copper conductors, Datalene� foam polyethylene insulation, twisted pairs, overall Beldfoil� aluminium foil-polyester tape with shorting fold (100% coverage) + tinned copper braid shield (65% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-232/422 applications.
- 100R Nominal characteristic impedance
- 12.5pF/ft Conductor to conductor nominal capacitance
- 22pF/ft Conductor to other conductor and shield nominal capacitance
- 78% Nominal velocity of propagation
- 24R/1000ft at 20�C Nominal conductor DC resistance
- 3.8R/1000ft at 20�C Nominal outer shield DC resistance
- UL1685 Flame tested
Applications
Computers & Computer Peripherals
Product details
| Reel Length (Metric) | - |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| External Diameter | 7.2mm |
| No. of Pairs | 3 Pair |
| Voltage Rating | 30V |
| Reel Length (Imperial) | - |
| Product Range | - |
| Wire Gauge | 24AWG |
| Jacket Colour | Chrome |
| No. of Max Strands x Strand Size | 7 x 0.2mm |
| Conductor Area CSA | 0.2mm� |
Other details
| Brand | BELDEN |
| Part Number | 8103 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
