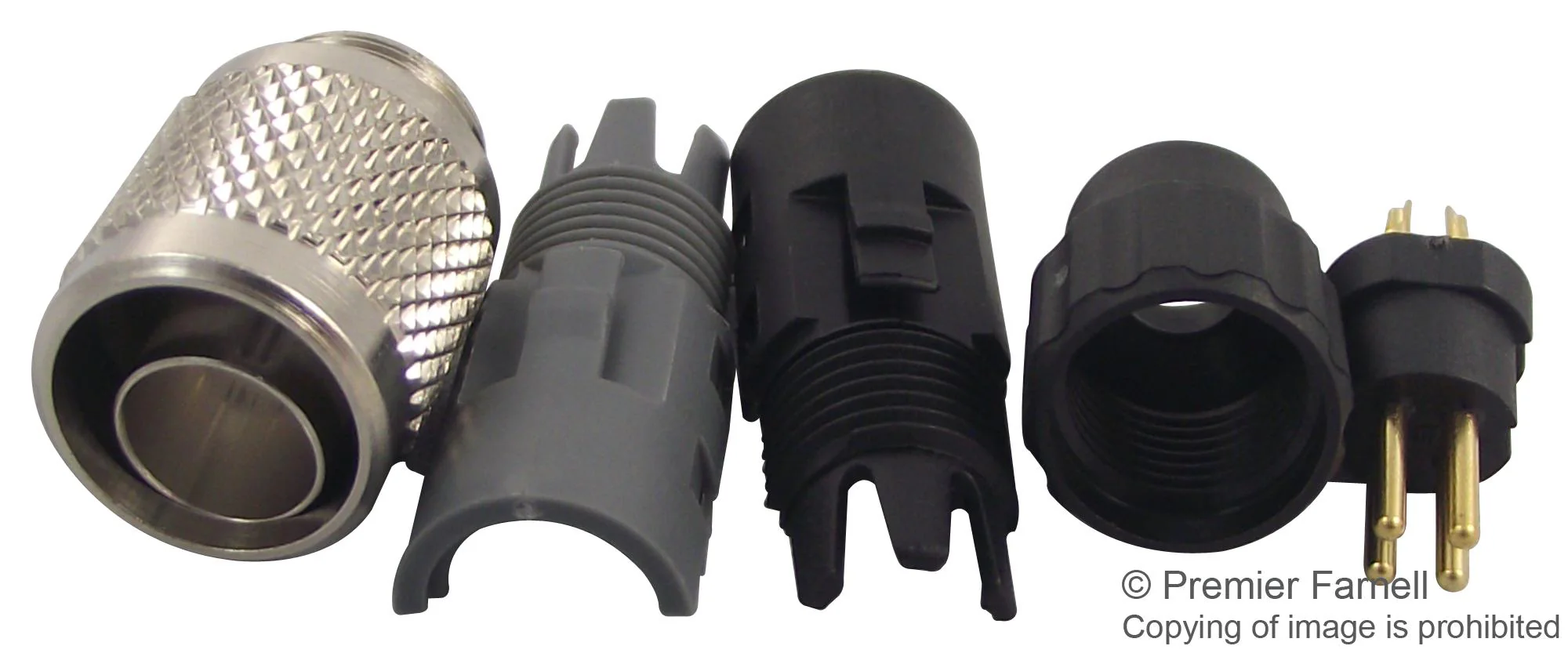

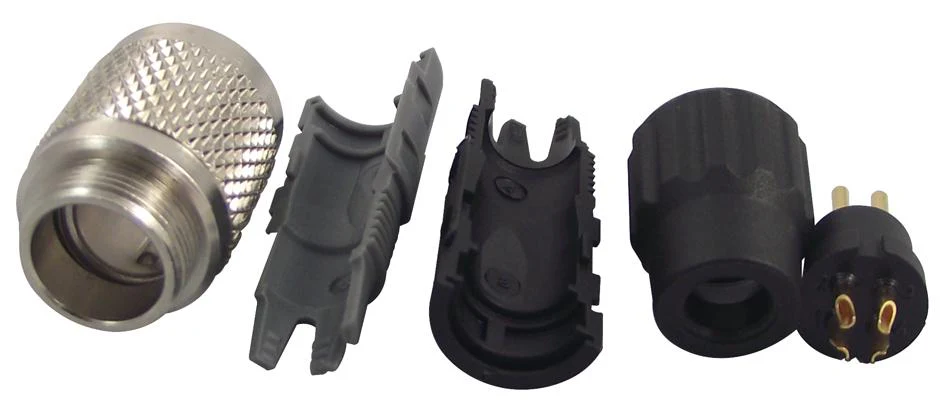

Binder 99 0079 100 04 Circular Connector 711 Series Cable Mount Plug 4 Contacts Solder Pin Nylon (Polyamide) Body
The 99 0079 100 04 is a 4-contact 125V/3A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA (UL94V-0) contact body and PA (UL94VH-B) housing. The 711 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 4mm cable outlet. The housing has an integrated strain relief for added strength.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP40 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 99 0079 100 04 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$5.42
Original: $18.05
-70%Binder 99 0079 100 04 Circular Connector 711 Series Cable Mount Plug 4 Contacts Solder Pin Nylon (Polyamide) Body—
$18.05
$5.42Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 99 0079 100 04 is a 4-contact 125V/3A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA (UL94V-0) contact body and PA (UL94VH-B) housing. The 711 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 4mm cable outlet. The housing has an integrated strain relief for added strength.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP40 Protection rating
Industrial
Other details
| Brand | BINDER |
| Part Number | 99 0079 100 04 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
