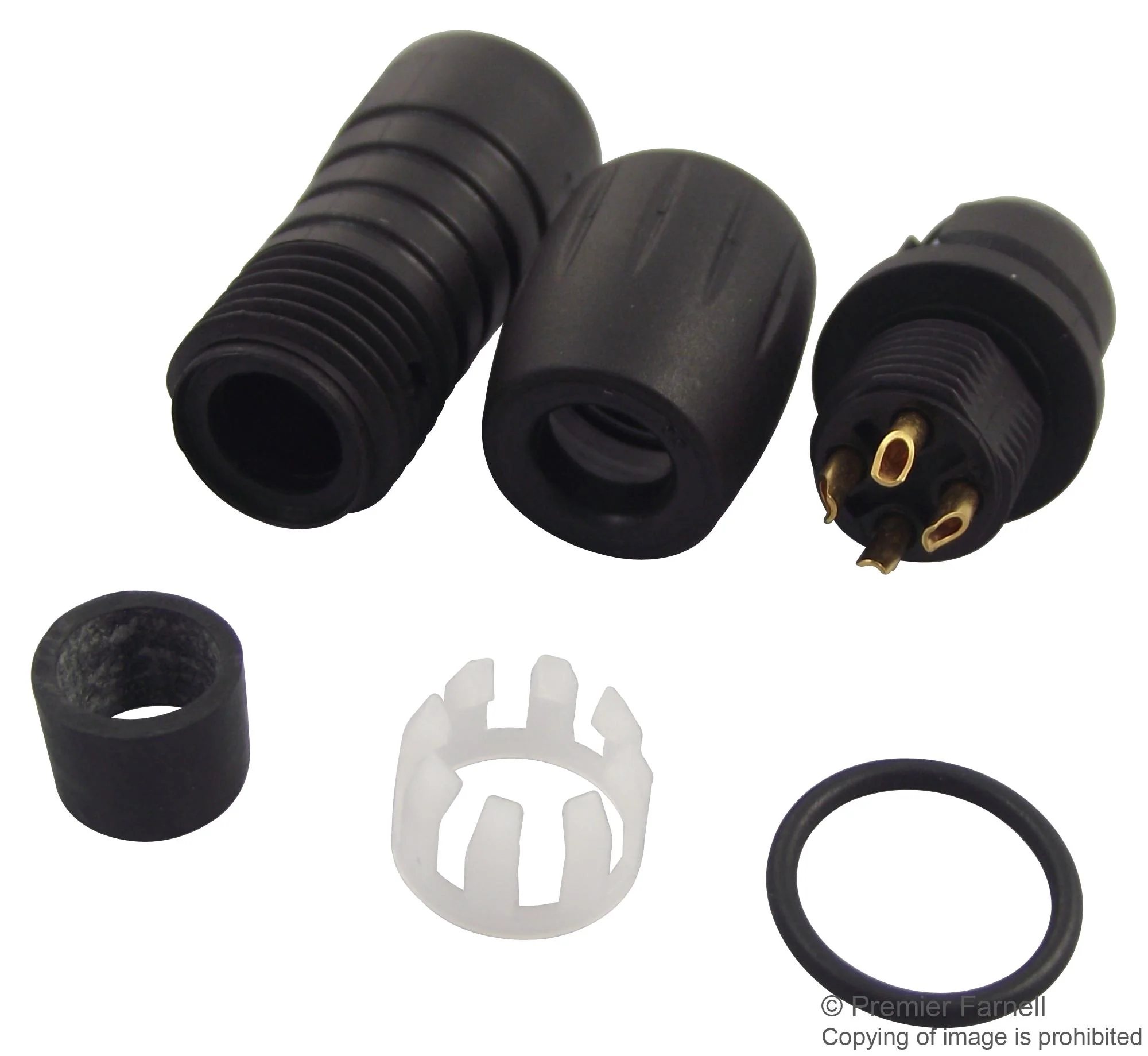

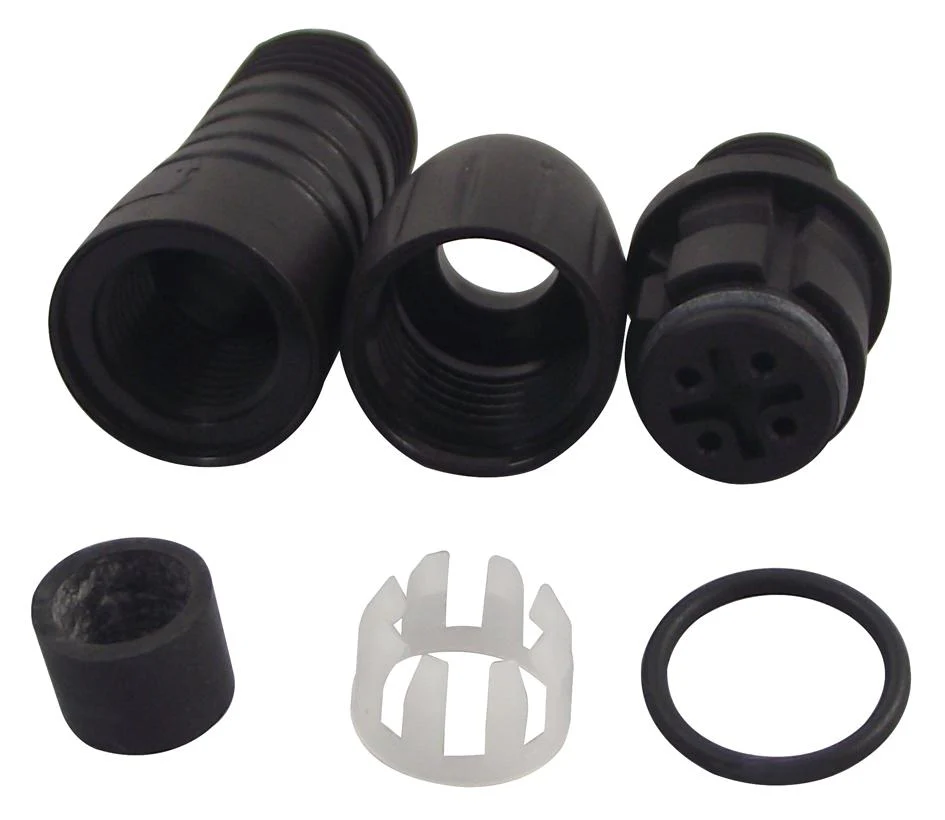

Binder 99-9210-00-04 99-9210-00-04 Circular Connector 620 Series Cable Mount Receptacle 4 Contacts Solder Socket
The 99-9210-00-04 is a 4-contact 125V/2.5A unshielded female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and housing. The 620 series receptacle with snap locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 5mm cable outlet.
- 1500V Rated impulse voltage
- <=3mR Volume resistivity
- >500 mating cycles Mechanical operation
- IP67 Protection rating
Medical, Consumer Electronics, Commercial, Portable Devices
Other details
| Brand | BINDER |
| Part Number | 99-9210-00-04 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
