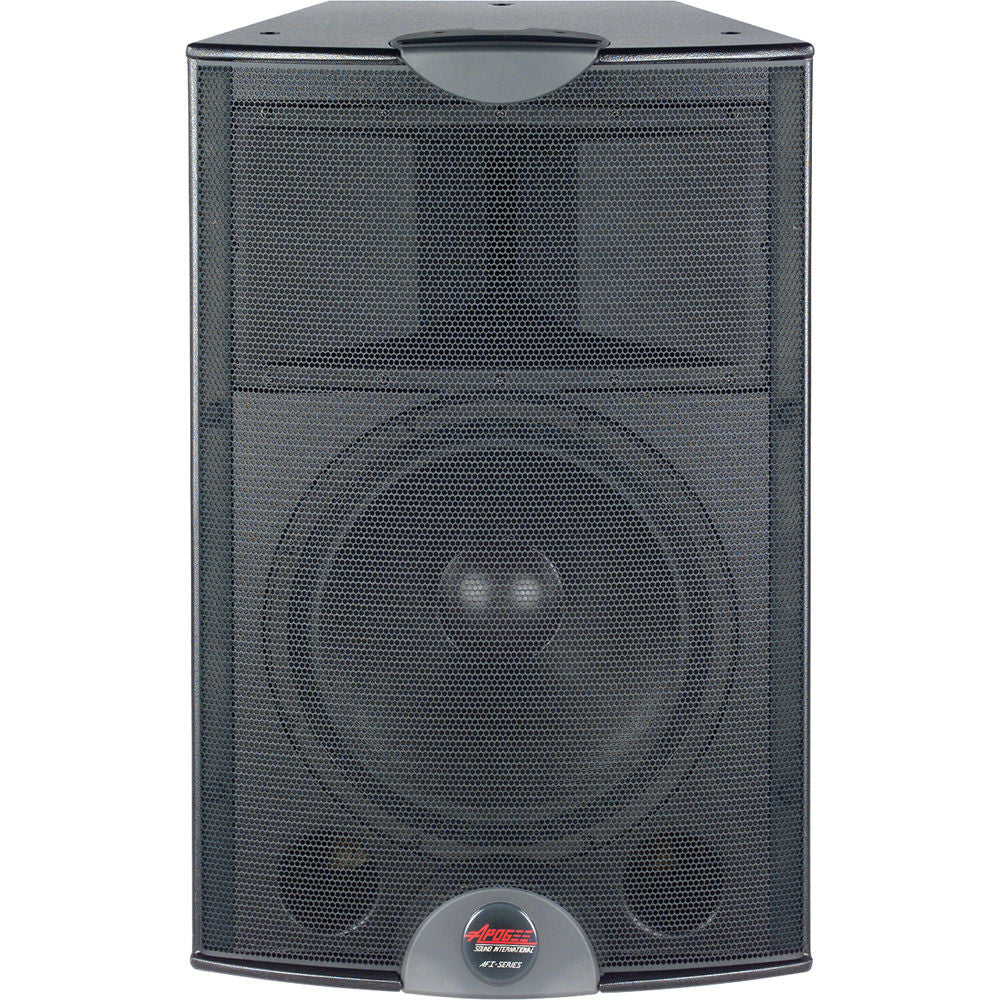

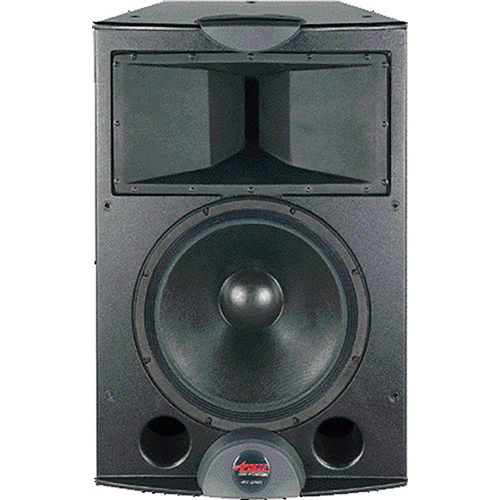

Bogen Communications AFI-8 Contractor Series Loudspeaker System (White)
The white AFI-8 Contractor Series Loudspeaker System from Bogen Communications is capable of filling large churches, theaters, sports venues, and theme parks with clean, articulate, full bandwidth sound. This loudspeaker system is available with a 60 x 40� high-frequency horn pattern, insuring that the AFI-8 works efficiently in any room configuration.
- Low Frequency
- One Apogee 15" (381mm) permanent magnet conetype driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise
- High Frequency
- One Apogee 3" (76mm) voice coil, 2" (51mm) exit horn-loaded compression driver treated with Ferrofluid for efficient power handling capability, lower distortion, and control of shortterm impedance rise
- Input Connectors
- Barrier strip, screw type #8
- Compatible Processors
- AFI Main Frame Controller Chassis or DLC24
- Handles
- Two handles - one top, one bottom - designed as an integral part of the enclosure (no moving parts)
- Grille
- Highly durable, quality finish on perforated steel
- Rigging Hardware
- Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
- Finish
- Textured high-strength white epoxy paint
- Enclosure Type
- 30� trapezoidal, optimally-vented bass
- Cabinet Construction
- Multi-ply hardwood
In the Box
Bogen Communications AFI-8 Contractor Series Loudspeaker System (White)
- Limited 2-Year Warranty
| Configuration | Passive Two-Way |
| Dispersion | 60 x 40� |
| Frequency Response | At 1 m on axis: 46 Hz to 20 kHz � 3 dB |
| Maximum SPL | At 1 m: 124 dB continuous/130 dB peak |
| PTML (Peak Transient Mechanical Limit) | 141 dB |
| Sensitivity | At 1W @ 1 m: 98 dB SPL/100 Hz to 4 kHz |
| Nominal Impedance | 8 ?, each driver |
| Maximum Power Handling | 400 W continuous/1600 W peak |
| Dimensions (W x H x D) | Front: 20.25 x 30.25 x 15.1" (515 x 769 x 384 mm) Rear: 13.3 x 30.25 x 15.1" (338 x 769 x 384 mm) |
| Weight | 77 lb (35 kg) |
$5,766.66
Bogen Communications AFI-8 Contractor Series Loudspeaker System (White)—
$5,766.66
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The white AFI-8 Contractor Series Loudspeaker System from Bogen Communications is capable of filling large churches, theaters, sports venues, and theme parks with clean, articulate, full bandwidth sound. This loudspeaker system is available with a 60 x 40� high-frequency horn pattern, insuring that the AFI-8 works efficiently in any room configuration.
- Low Frequency
- One Apogee 15" (381mm) permanent magnet conetype driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise
- High Frequency
- One Apogee 3" (76mm) voice coil, 2" (51mm) exit horn-loaded compression driver treated with Ferrofluid for efficient power handling capability, lower distortion, and control of shortterm impedance rise
- Input Connectors
- Barrier strip, screw type #8
- Compatible Processors
- AFI Main Frame Controller Chassis or DLC24
- Handles
- Two handles - one top, one bottom - designed as an integral part of the enclosure (no moving parts)
- Grille
- Highly durable, quality finish on perforated steel
- Rigging Hardware
- Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
- Finish
- Textured high-strength white epoxy paint
- Enclosure Type
- 30� trapezoidal, optimally-vented bass
- Cabinet Construction
- Multi-ply hardwood
In the Box
Bogen Communications AFI-8 Contractor Series Loudspeaker System (White)
- Limited 2-Year Warranty
| Configuration | Passive Two-Way |
| Dispersion | 60 x 40� |
| Frequency Response | At 1 m on axis: 46 Hz to 20 kHz � 3 dB |
| Maximum SPL | At 1 m: 124 dB continuous/130 dB peak |
| PTML (Peak Transient Mechanical Limit) | 141 dB |
| Sensitivity | At 1W @ 1 m: 98 dB SPL/100 Hz to 4 kHz |
| Nominal Impedance | 8 ?, each driver |
| Maximum Power Handling | 400 W continuous/1600 W peak |
| Dimensions (W x H x D) | Front: 20.25 x 30.25 x 15.1" (515 x 769 x 384 mm) Rear: 13.3 x 30.25 x 15.1" (338 x 769 x 384 mm) |
| Weight | 77 lb (35 kg) |
