Bogen Communications C35 Classic Series Public Address Amplifier 35W
- 4 Inputs
- Output for Tape Recorder or Booster Amp

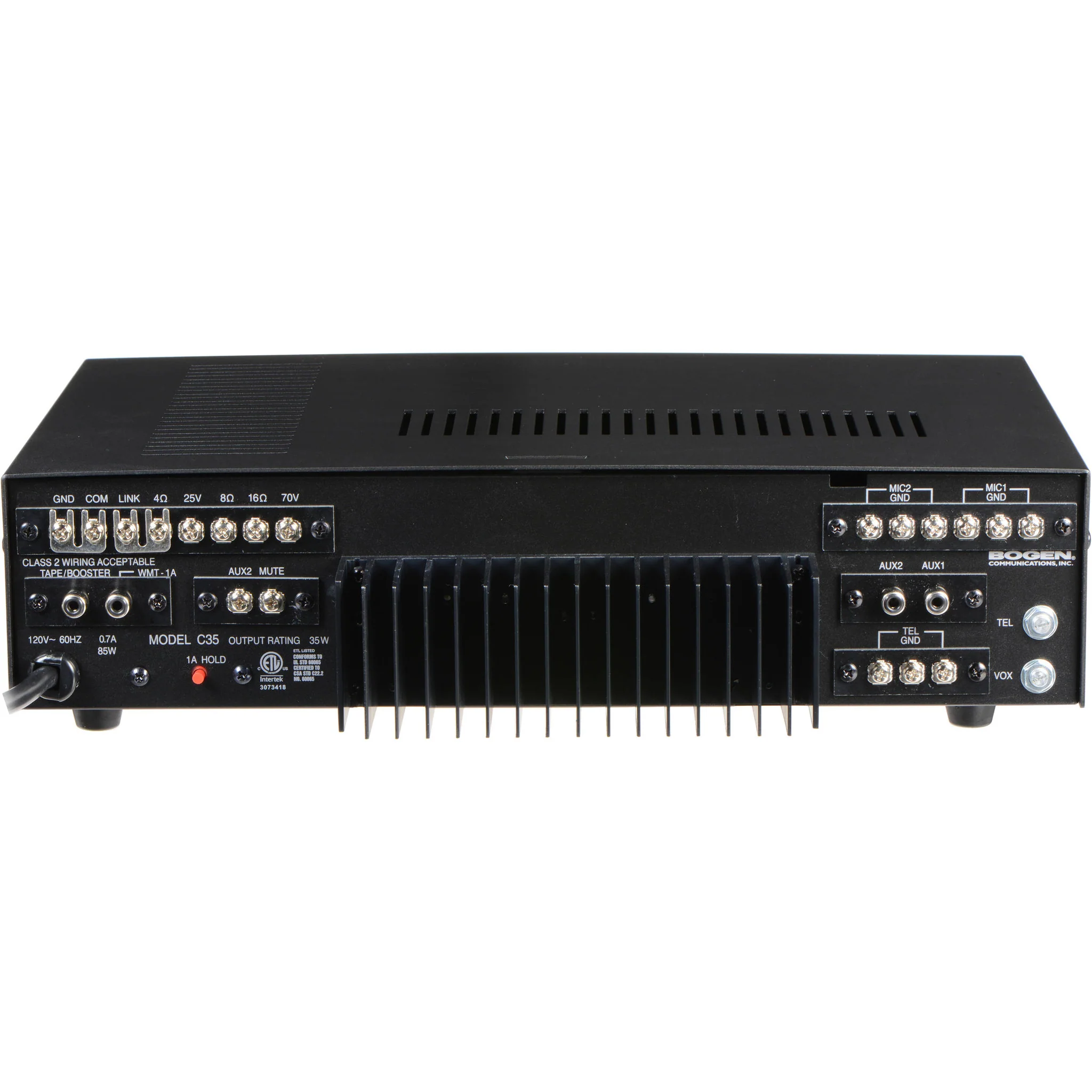

The C35 Classic Series Public Address Amplifier 35W from Bogen is a reliable mixer/amplifier. This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panel has variable output taps at 4/8/16 ohms and 25/70V. This amp has 4 inputs with independent volume controls plus treble and bass controls. Output jacks are provided for recording or secondary amplifiers.
- AUX muting by external contact closure for push-to-talk mic's
- Telephone input available for telephone paging applications
- Transformer isolated output taps at 4/8/16 ohms and 25/70V
- Thermal protection and electronic shutdown
| Power Output | 35W |
| Distortion | <1% |
| Frequency Response | Transformer: 70-16,000Hz 4-ohms direct output: 20-20,000Hz |
| Hum & Noise | MIC - 55dB below rated output AUX - 70dB below rated output TEL - 70dB below rated output |
| Input Sensitivity | MIC - Lo-Z Balanced 600mV AUX - 85mV (10k-ohms) TEL - 75mV |
| Output | 4/8/16 ohms, 25/70V |
| Output Connections | Screw terminal strip RCA x 2 (4 ohms) |
| Input Connections | Two MIC Lo-Z terminals, AUX Hi-Z jack x 2, TEL terminals |
| Power Requirements | 120VAC/60Hz |
| Dimensions | 14.5 x 3.75 x 11" (368.3 x 95.25 x 279.4mm) |
| Weight | 16 lbs (7.25kg) |
| Packaging Info | |
|---|---|
| Package Weight | 15.3 lb |
| Box Dimensions (LxWxH) | 18.6 x 14.2 x 5.4" |
- 1-Year Warranty
