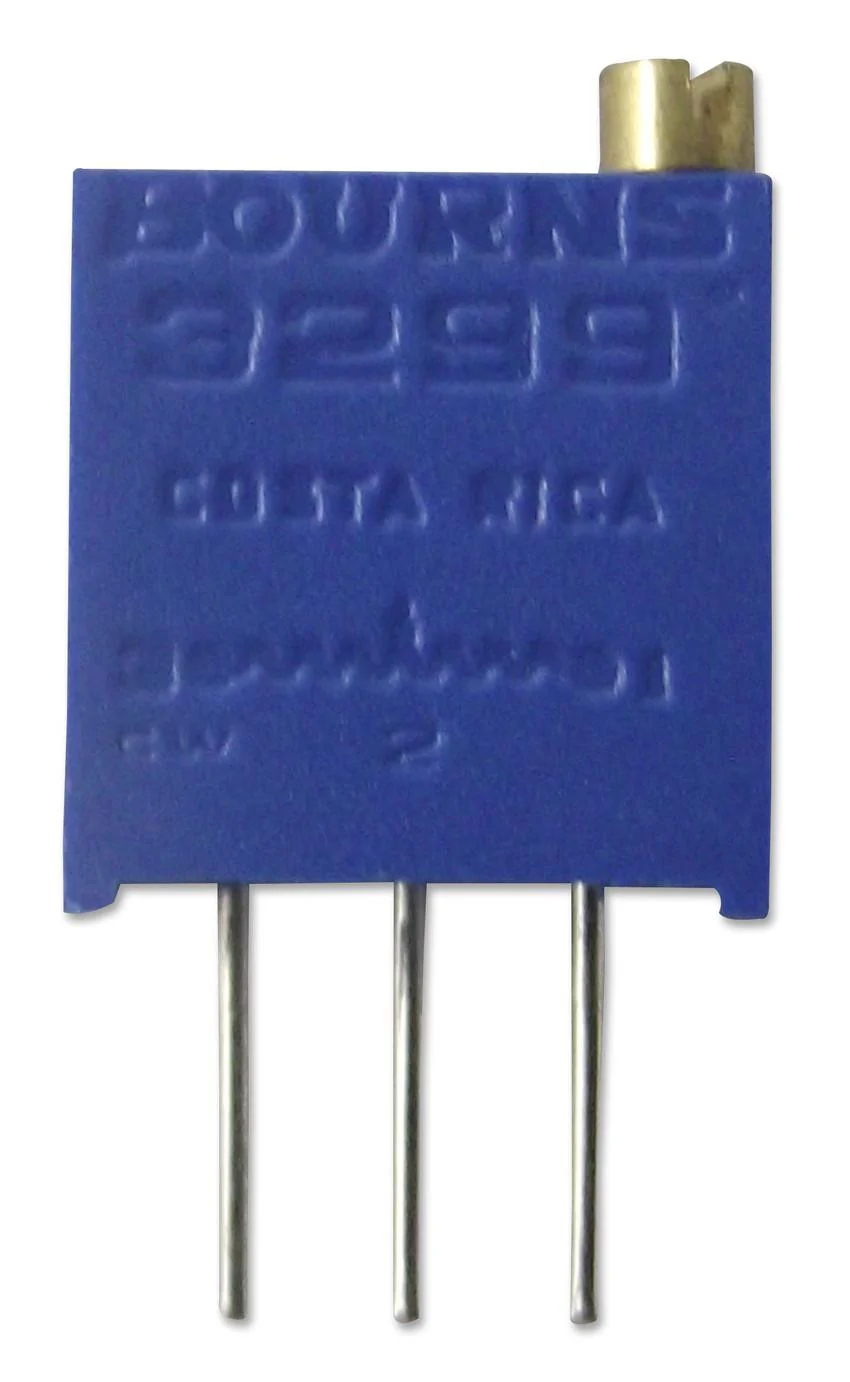

BOURNS 3299W-1-501LF Trimmer Potentiometer, 500 ohm, 500 mW, � 10%, Trimpot 3299 Series, 25 Turns, Through Hole
The Bourns Trimpot 3299 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
- 3/8inch square potentiometer
- Side or top adjustment with lead screw
- Sealing is IP65 rated
- 25 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 2Mohm
- �10% tolerance
- Temperature coefficient is �100ppm/�C
- Operating temperature ranges from -55�C to +125�C
- Power rating is 0.5W
- 5 popular terminal styles, standoffs allow thorough PC board washing
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | � 100ppm/�C |
| Power Rating | 500mW |
| No. of Turns | 25Turns |
| Potentiometer Mounting | Through Hole |
| Automotive Qualification Standard | - |
| Resistance Tolerance | � 10% |
| Product Range | Trimpot 3299 Series |
| Track Resistance | 500ohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3299W-1-501LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
