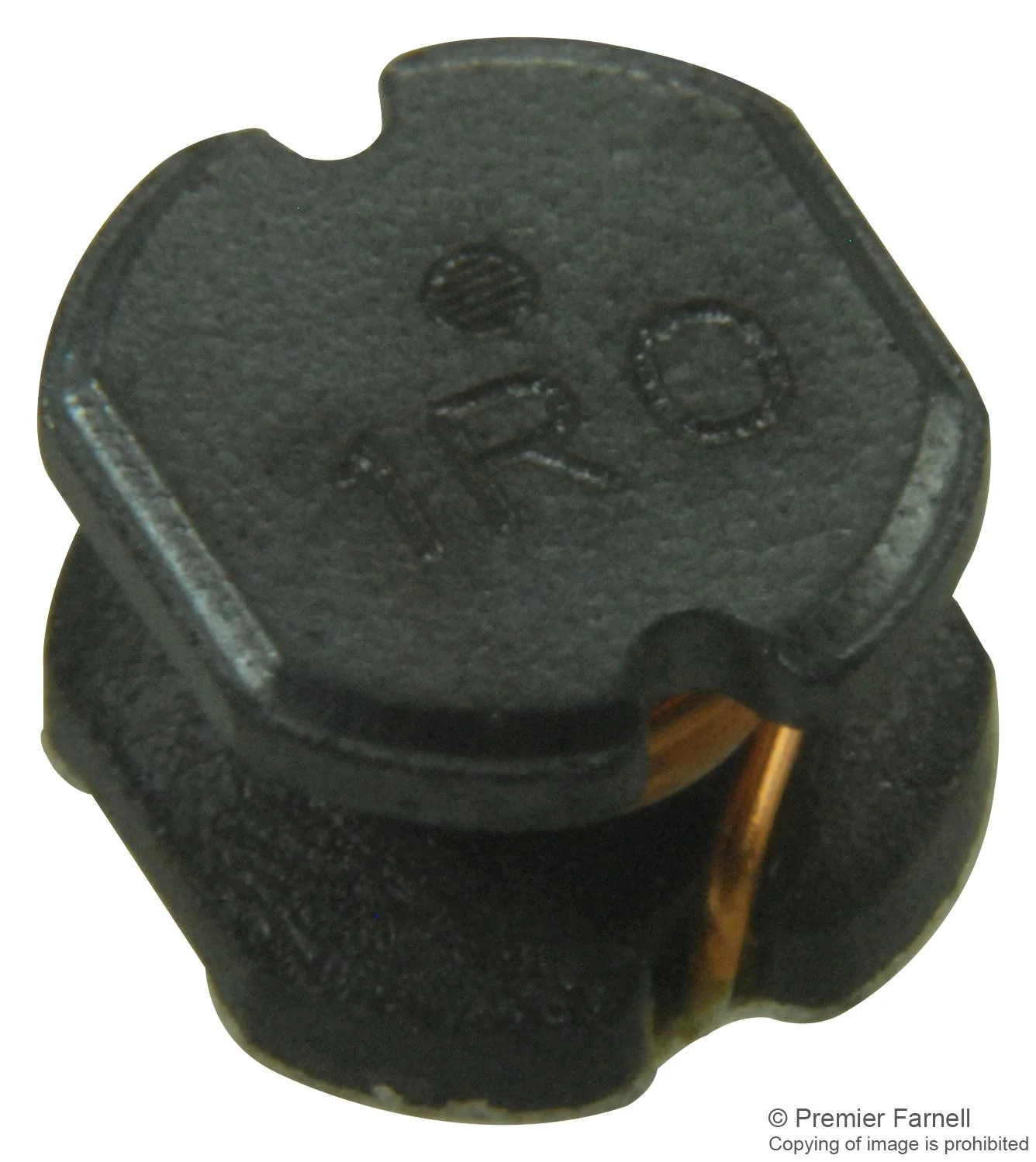

BOURNS SDR0604-470KL Surface Mount Power Inductor, SDR0604 Series, 47 µH, 720 mA, 1 A, Unshielded, 0.37 ohm
This is a Surface Mount Power Inductor, SDR0604 Series, 47 ĀµH, 720 mA, 1 A, Unshielded, 0.37 ohm product from BOURNS with the model number SDR0604-470KL
Product details
| Product Range | SDR0604 Series |
| Inductance | 47ĀµH |
| RMS Current (Irms) | 720mA |
| Saturation Current (Isat) | 1A |
| Inductor Construction | Unshielded |
| DC Resistance Max | 0.37ohm |
| Power Inductor Case | 5.8mm x 5.8mm x 4.8mm |
| Inductance Tolerance | Ā± 10% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SDR0604-470KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.18
Original: $0.61
-70%BOURNS SDR0604-470KL Surface Mount Power Inductor, SDR0604 Series, 47 µH, 720 mA, 1 A, Unshielded, 0.37 ohmā
$0.61
$0.18Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a Surface Mount Power Inductor, SDR0604 Series, 47 ĀµH, 720 mA, 1 A, Unshielded, 0.37 ohm product from BOURNS with the model number SDR0604-470KL
Product details
| Product Range | SDR0604 Series |
| Inductance | 47ĀµH |
| RMS Current (Irms) | 720mA |
| Saturation Current (Isat) | 1A |
| Inductor Construction | Unshielded |
| DC Resistance Max | 0.37ohm |
| Power Inductor Case | 5.8mm x 5.8mm x 4.8mm |
| Inductance Tolerance | Ā± 10% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SDR0604-470KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
