BZBGear 4K HDMI 2.0 Extender over Single Coaxial Cable with Bidirectional IR
BZBGear BG-EXHOC Overview

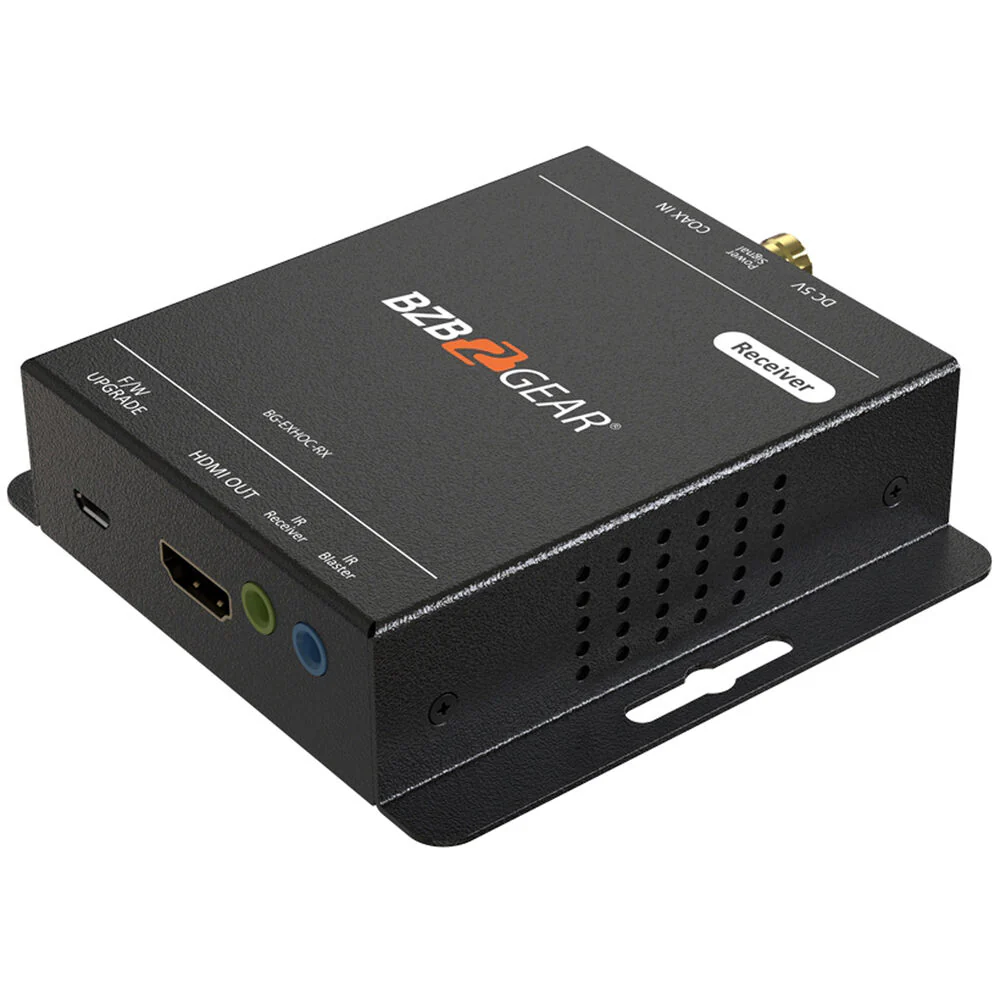

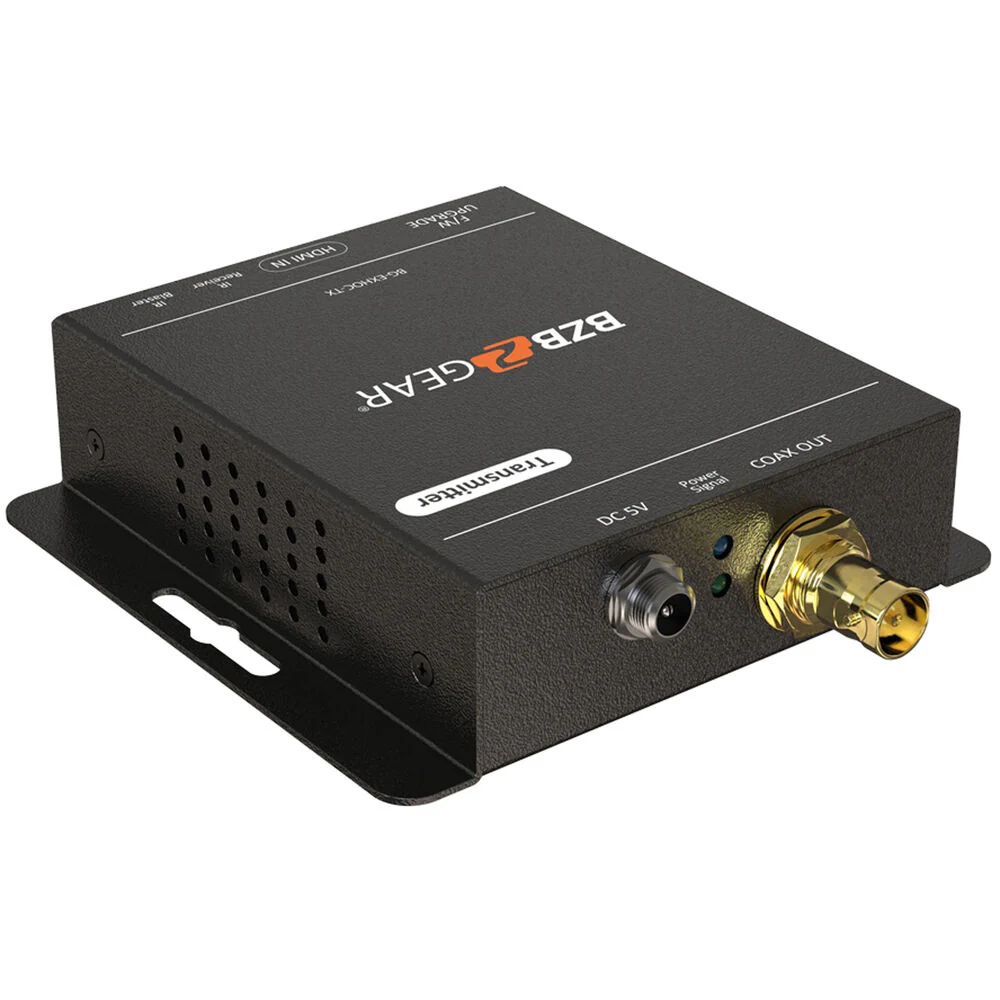

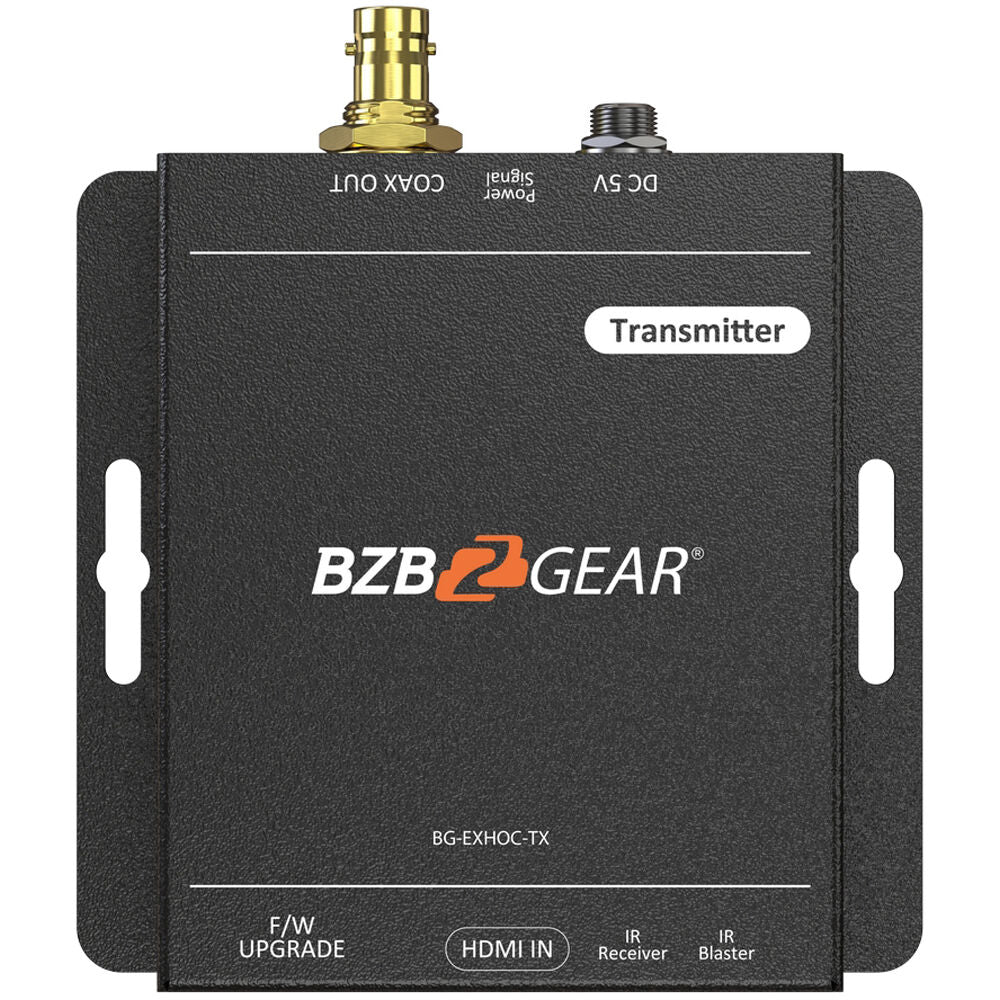

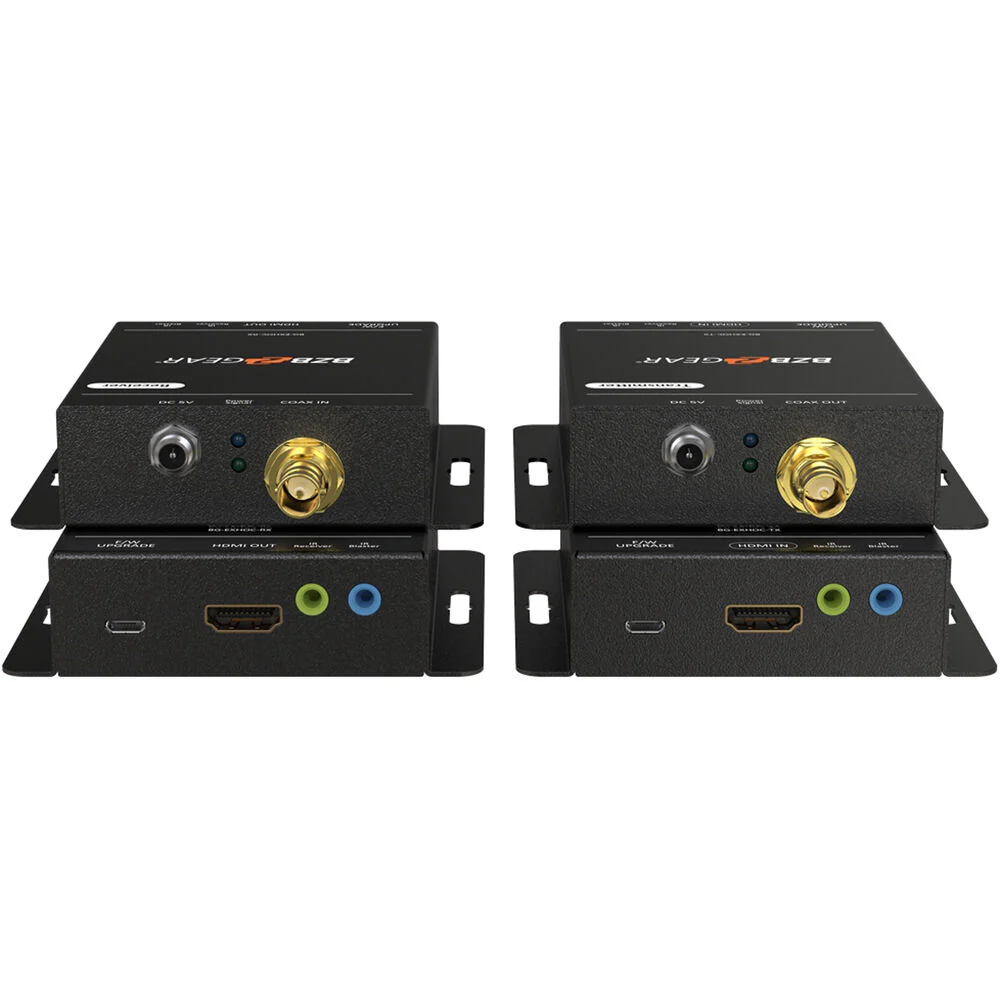

In an ultracompact design, the 4K HDMI 2.0 Extender over Single Coaxial Cable with Bidirectional IR from BZBGear carries up to an uncompressed 4K60 4:4:4 HDMI signal with embedded audio over a single coaxial cable up to 363' away. The transmitter and receiver pair supports HDMI 2.0 signals, HDCP 2.2 on input and output, and bidirectional IR passthrough.
The units also support multi-channel embedded audio formats, including Dolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1. Two power supplies are included to power each unit. Each unit features mounting holes on each side, so they can be mounted with optional hardware onto a wall or console.
In the Box
- BZBGear 4K HDMI 2.0 Extender over Single Coaxial Cable with Bidirectional IR
- Transmitter
- Receiver
- 2 x Power Supply
BZBGear BG-EXHOC Specs
| Inputs | 1 x HDMI (HDMI 2.0) |
| Embedded Audio Input | HDMI |
| Outputs | 1 x BNC |
| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Output 1 x 1/8" / 3.5 mm IR Input |
| Inputs | 1 x BNC |
| Outputs | 1 x HDMI (HDMI 2.0) |
| Embedded Audio Output | HDMI |
| Receiver Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
| HDCP Support | Yes |
| Max Transmission Distance | UHD 4K at 60 Hz: 363' / 110.6 m |
| Video Format | HDMI (8-Bit 4:4:4) UHD 4K: 60 fps |
| DTS Compatibility | DTS-HD Master Audio |
| Dolby Compatibility | Dolby Digital Plus, Dolby TrueHD |
| Transmitter Power Connector | 1 x Barrel (5 VDC) Input |
| Receiver Power Connector | 1 x Barrel (5 VDC) Input |
| Transmitter Power Consumption | Device: (10 W) |
| Receiver Power Consumption | Device: (6 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
| Transmitter Dimensions | 3.8 x 3.5 x 1" / 96 x 90 x 25 mm |
| Receiver Dimensions | 3.8 x 3.5 x 1" / 96 x 90 x 25 mm |
| Transmitter Weight | 4.5 oz / 127 g |
| Receiver Weight | 4.5 oz / 127 g |
| Package Weight | 2.475 lb |
| Box Dimensions (LxWxH) | 10.6 x 6.9 x 3.8" |
