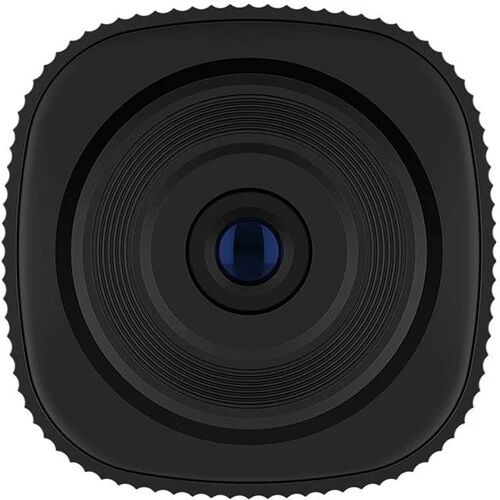

BZBGear Maestro USB 3.0/SDI Wide-Angle Educational Auto-Tracking Camera
BZBGear Maestro Overview
Add a high-quality, auto-tracking camera with subject auto-tracking to your conference room, event space, classroom, or house of worship with the Maestro USB 3.0/SDI Wide-Angle Educational Auto-Tracking Camera from BZB Gear. The camera features a 1/2.8" CMOS sensor and outputs up to 1080p video over SDI, USB 3.1 Gen 1, or RJ45 LAN, which uses RSMP/RTSP protocols to stream video and audio to Internet services like Skype, Teams, and Zoom. The camera features auto-tracking that allows the camera to automatically move and focus, depending on where your subject is in the room.
With its digital ePTZ functionality and 3x digital zoom, you can set up the camera to track a teacher or presenter using the advanced algorithms to follow a subject. It uses a wide dynamic range to track in a variety of lighting situations, quick autofocusing, depending on the level of zoom or angle.
The camera supports MJPEG, H.265, and H.264 video compression formats and allows you to input analog audio to embed in your video output using AAC, MP3, or G711A compression formats. When connected to a network, you can control and configure the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also control the camera via serial communication using its terminal block, using RS-232, RS-485, VISCA, Pelco-P, and Pelco-D protocols.
Key Features
ePTZ Auto-Tracking
Multiple Streams
Wide Viewing Angle
PoE Support
HD Capture
Serial Communication
In the Box
- BZBGear Maestro USB 3.0/SDI Wide-Angle Educational Auto-Tracking Camera
- Limited 3-Year Warranty
BZBGear Maestro Specs
| Sensor | 1/2.8", 8.28 MP CMOS |
| Video Format | SDI: 1920 x 1080p: 30/25 1280 x 720p: 60/50/30/25 USB: 1920 x 1080p: 30/25 1280 x 720p: 60/50/30/25 960 x 540p: 30 800 x 600p: 30 640 x 480p: 30 640 x 360p: 30 352 x 288p: 30 |
| Video Compression Format | H.264, H.265, MJPEG, YUY2, NV12 |
| Audio Compression Format | AAC, MP3, G.711A |
| Streaming Protocols | RTSP, RTMP, ONVIF |
| Focal Length | 7.23mm |
| Digital Zoom | 3x |
| Minimum Illumination | 0.5 Lux |
| Viewing Angle | Diagonal: 57.2° Vertical: 36° Horizontal: 47° |
| DNR | 50 dB |
| White Balance | Auto/Manual 2400 to 7100K |
| Video Connectors | 1 x BNC 3G/HD-SDI 1 x USB 3.1 Gen 1 Type-B 1 x RJ45 LAN |
| Audio Input | 1 x 3.5 mm Stereo Analog |
| Control Interfaces | 5-Pin Terminal Block: RS-232, RS-485 RJ45: LAN |
| Serial Protocol | VISCA, Pelco-D, Pelco-P |
| PoE Support | Yes |
| Power Input | 1 x DC Barrel: 12 VDC, 0.42 A PoE: 48 V, 0.104 A |
| Power Consumption | 5 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
| Dimensions | 5.9 x 3 x 3" / 148.8 x 76 x 76 mm |
| Weight | 1.2 lb / 530 g |
| Package Weight | 2.89 lb |
| Box Dimensions (LxWxH) | 9.8 x 7 x 5.2" |
BZBGear Maestro Reviews
