CHAUVET DJ Kinta HP RGBW + CMYO LED Rotating Light Beams Effect
CHAUVET DJ Kinta HP Overview
The CHAUVET DJ Kinta HP high-powered LED-light effect projects myriads of multicolored, rotating beam bursts to energize your dance floor in clubs, bars, event spaces, and more. It features a grouping of two quad-color 10W LEDs�RGBW (red, green, blue, white) and CMYO (cyan, magenta, yellow, orange)�that give you nearly limitless color-mixing options to create vivid and dazzling light shows right out of the box.
The Kinta HP's continuous motor rotation produces dynamic effects with independently adjustable motor speed and rotation angle to match the music. The wide 118° coverage angle creates an immersive mirror-ball-like effect that fills your entire space.
The Kinta HP allows for both standalone and DMX operation. For use without a DMX controller, you can trigger built-in, sound-active, automatic, and variable-strobe programs. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. For DMX control, the unit offers two DMX channel modes (3 or 12) with XLR 3-pin DMX in/out connectors. Multiple units can be connected to create complex lighting installations. You can also use the IRC-6 remote (available separately) for flexible control over most features.

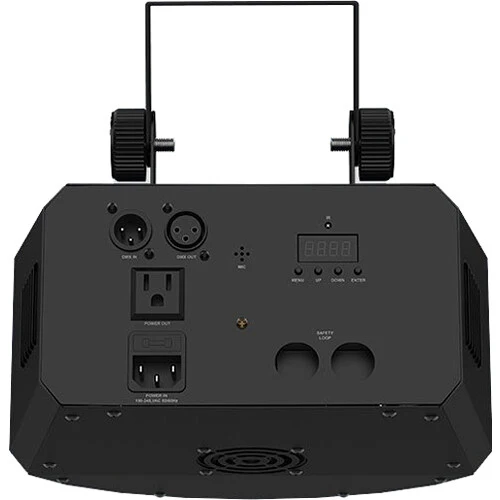

The front panel features an LED display with a four-button menu and user-friendly menu structure. The fixture is equipped with a universal auto-sensing power supply.
Rotating Multicolored Vibrant Light Beams to Your Light Show
- High-powered LED effect light projects myriads of multicolored rotating light beams
- Two 10W quad-color RGBW (red, green, blue, white) and CMYO (cyan, magenta, yellow, orange) color-mixing LEDs
- Continuous motor rotation with adjustable motor speed and rotation
- Wide 118° coverage angle
- Compact lightweight design for mobile lighting professionals
- Standalone, DMX, Master/Slave, auto, and sound-activated modes
- Strobe Rate: 0 to 20 Hz
- 2 DMX channel modes (3 or 12)
- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 16 units at 120V or 29 units at 230V
- Single-yoke mounting bracket
- Compatible with IRC-6 remote for flexible control over most features
- Fits in the CHS-40 VIP gear bag (available separately)
In the Box
- CHAUVET DJ Kinta HP RGBW + CMYO LED Rotating Light Beams Effect
- Power Cord
- Limited 2-Year Warranty
CHAUVET DJ Kinta HP Specs
| Lighting Type | Effects |
| Light Source | 2 x Color LED - 10 W / 3 A |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Red Green Blue White Cyan Magenta Yellow Orange |
| Coverage Angle | 118° |
| Shutter / Strobe | Electronic |
| Operating Modes | Automatic, DMX, Master/Slave, Program, Sound-Active |
| Macros / Programs | Auto-Program |
| Effects | Strobe |
| Strobe Rate | 0 to 20 Hz |
| Gobos | None |
| Control Protocols | DMX512 |
| DMX Channel Modes | 2 Mode(s): 3 / 12-Channel |
| Remote Control | IR Remote (with Optional Equipment) |
| Display / Controls | LED / 4-Button |
| I/O | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x IEC |
| Power / Current Consumption | 120 VAC, 60 Hz: 34 W / 0.5 A |
| Power Linking | 16 Units at 120 VAC 29 Units at 230 VAC |
| IP Rating | None |
| Mounting | Mounting Bracket, Single Yoke |
| Exterior Color | Black |
| Certifications | CE, as per Manufacturer |
| Dimensions | 9.4 x 9 x 8.7" / 23.9 x 22.9 x 22.1 cm |
| Weight | 5.2 lb / 2.4 kg |
| Package Weight | 6.675 lb |
| Box Dimensions (LxWxH) | 11.2 x 10.7 x 9.5" |
