CHAUVET Professional Rogue R1X Wash RGBW LED Moving Head Wash 2-Light Kit with DMX Cables and Mounting Accessories
This Kit contains two CHAUVET DJ Rogue R1X Wash RGBW LED Moving Head Wash Lights to produce dynamic lightshows using motorized pan, tilt, and zoom capabilities. It comes packaged with four heavy-duty C-clamps suitable for hanging the fixtures from pipe or truss as well as two safety chains for added security. To remotely operate the movement, color change, and program settings of the lights, a 25' 5-pin XLR cable is included for networking to any standard DMX control system with a 10' DMX cable useful for daisy-chaining the two heads.

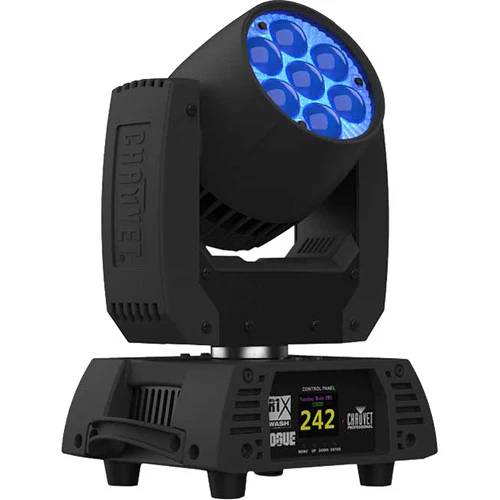

The CHAUVET PROFESSIONAL Rogue R1X Wash is an LED moving-head wash light with a bubble lens design for accurate color rendering and dynamic visual effects. Featuring wide, 8 to 30? beam angles and 11 to 48? field angles with a motorized zoom, fast and precise pan/tilt movements with movement macros, and a variable strobe, it is an ideal addition to any touring rig or permanent installation for energizing dance floors, event spaces, and more.
The Rogue R1X Wash is powered by seven, 25W quad-color RGBW LEDs (red, green, blue, white), which allow for smooth color mixing with six distinct dimming modes. The unit can be controlled using the built-in OLED display or, for programming versatility, via simple and complex DMX channel profiles.
In addition to DMX daisy-chaining, the Rogue R1X Wash supports power linking via its pass-through powerCON power connectors, minimizing time spent on cable runs and finding power outlets. You can daisy-chain up to 10 fixtures in a 120V environment, or up to 20 fixtures in a 230V environment. Included is an Omega bracket with mounting hardware and a Neutrik powerCON power cord.

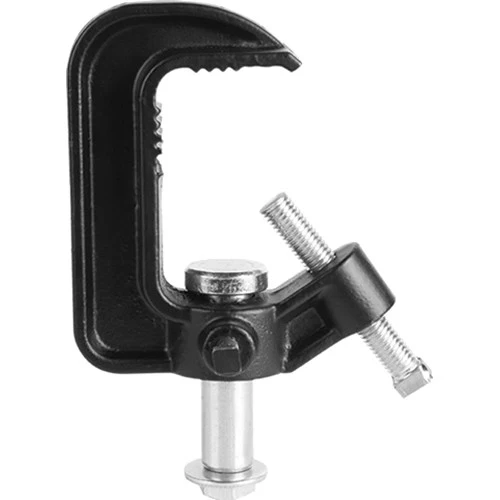

This CLP-05 Heavy-Duty C-Clamp fits most CHAUVET products. It is made of thick cast iron and has a 110 lb load capacity.

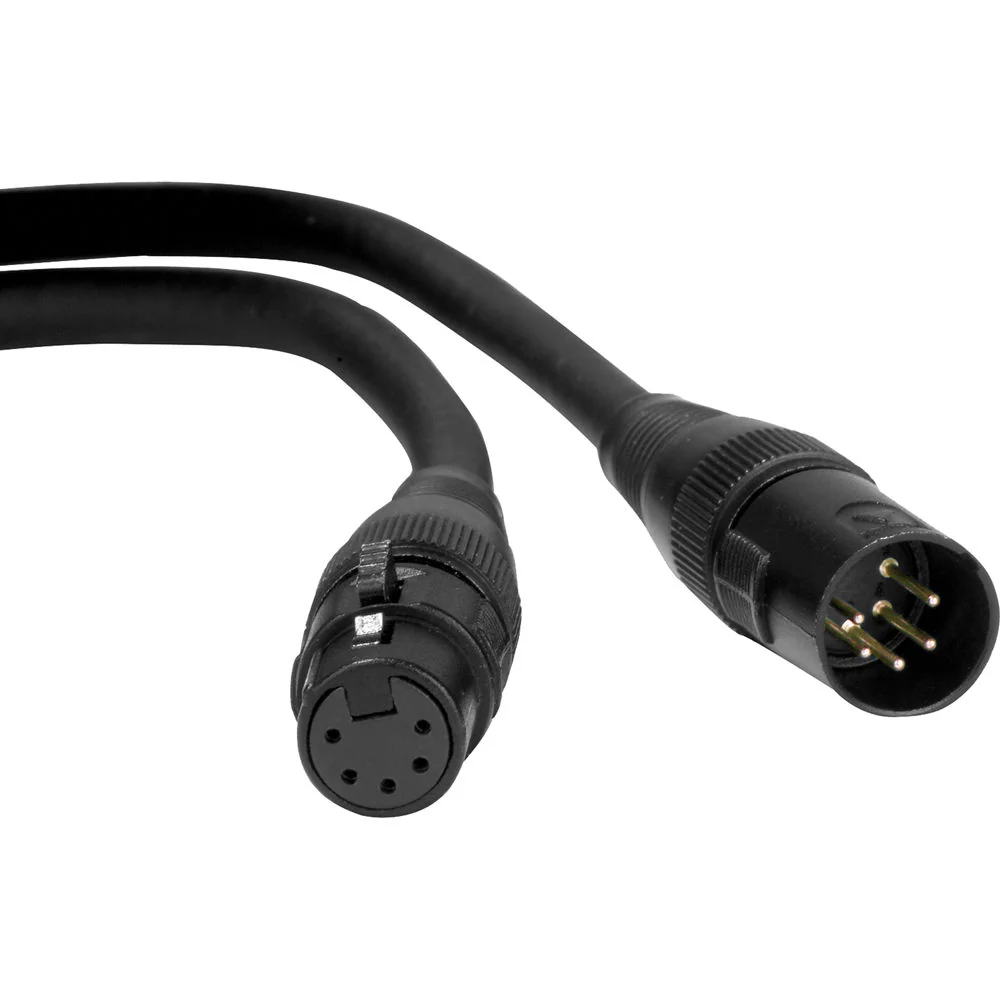

This 25' American DJ AC5PDMX25 5-Pin DMX Cable is used for linking lighting effects to control them in DMX or Master/Slave modes. It's a 22 AWG stranded wire cable with twisted pair tinned copper conductors, polyethylene inner jacket, 100% coverage Duofoil and cotton insulation, tinned copper braid shield with 85% coverage and a PVC jacket.
The 10' DMX55P-010-S Studio Series 5-Pin DMX Cable from Kopul is engineered for accurate and trouble-free DMX data transfer for stage, theater, live concerts, or DJ applications. The cable features nickel-plated 5-pin XLR connectors with chuck-style strain relief. The 24 AWG oxygen-free copper, braid and foil shielding, and PE insulation result in a cable with professional conductivity and interference rejection. It assures a pure transfer of DMX and other digital signals. A PVC jacket provides durability while maintaining flexibility.
Made of braided stainless steel, this 41" x 5mm Impact Safety Cable provides extra security for lights mounted on overhead pipes, dropped ceilings and grids.
Items Included
- 2 x CHAUVET Professional Rogue R1X Wash RGBW LED Moving Head Wash Light
- Neutrik powerCON Power Cord
- Omega Bracket with Mounting Hardware
- Limited 2-Year Manufacturer Warranty
- 4 x CHAUVET DJ CLP-05 Heavy-Duty C-Clamp
- Limited 1-Year Manufacturer Warranty
- American DJ AC5PDMX25 5-Pin DMX Cable (25')
- Limited 1-Year Manufacturer Warranty
- Kopul DMX55P-010-S Studio Series 5-Pin DMX Cable (10')
- Limited 2-Year Manufacturer Warranty
- 2 x Impact Safety Cable (41")
- Limited 1-Year Manufacturer Warranty
Additional Resources
CHAUVET Professional Rogue R1X Wash RGBW LED Moving Head Wash Light
| Fixture Type |
Moving Head
|
| Light Source |
7x Color LED - 25 W / 1.5 A
|
| Colors |
Blue, Green, Red, White
|
| Beam Angle |
7.9 to 35.5?
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 157 W / 1.33 A
208 VAC, 60 Hz: 152 W / 208 A 230 VAC, 50 Hz: 153 W / 0.66 A |
| Mounting |
Floor Base, Omega Bracket
|
| Fixture Type |
Moving Head
|
| Light Source |
7x Color LED - 25 W / 1.5 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Photometrics |
11?:
267 fc / 2872 Lux at 16.4' / 5 m 50?: 26 fc / 279 Lux at 16.4' / 5 m |
| Color Temperature |
2800 to 10,000K
|
| Lumen Output |
4000 Lumens (Source)
2800 Lumens (Output) |
| Beam Angle |
7.9 to 35.5?
|
| Field Angle |
11.5 to 50.8?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Motorized
|
| Zoom Adjustment |
Motorized, 8 to 63?
|
| Dimming |
16-Bit Electronic with 6 Dimmer Modes
|
| Operating Modes |
DMX
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Tilt Ranges |
230? / 180? / 90?
|
| Pan Ranges |
540? / 360? / 180?
|
| Pan/Tilt Inversion |
Yes
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
4 Mode(s):
14 / 15 / 19 / 21-Channel |
| Display / Controls |
OLED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| Wireless |
No
|
