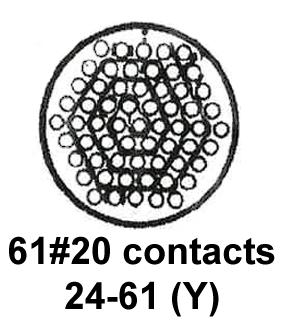

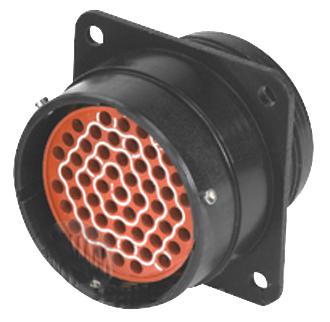

Cinch Connectivity Solutions C48-10R24Y61S9-406 C48-10R24Y61S9-406 Circular Connector C48 Wall Mount Receptacle 61 Contacts Crimp Socket - Not Supplied

The C48-10R24Y61S9-406 from Cinch is C48 series, MIL-DTL-26500 series equivalent wall mount receptacle with 61 contacts. The C48 series connectors are qualified to Boeing specifications to satisfy general purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance and vibration. These connectors have composite shells which are best for weight sensitive applications. The C48 series connectors have well-proven electrical capability to withstand extreme shock, exposure and vibration.

• High reliability connectors
• Connector styles qualified to Boeing BACC45 series
• Front release crimp contacts
• Operating temperature range from -55°C to +200°C
• Glass filled epoxy insulator, silicone based elastomer grommet & seals
• Insulation resistance is 5000Mohm
• Salt spray exposure of 96hour
• Bayonet coupling with 500 mating cycles
• Aluminium alloy body material with non-conductive black anodized finish
• Copper alloy crimp socket contacts with gold plating

Applications

Industrial, Commercial

Other details

Brand	CINCH CONNECTIVITY SOLUTIONS
Part Number	C48-10R24Y61S9-406
Quantity	Each
Technical Data Sheet EN
