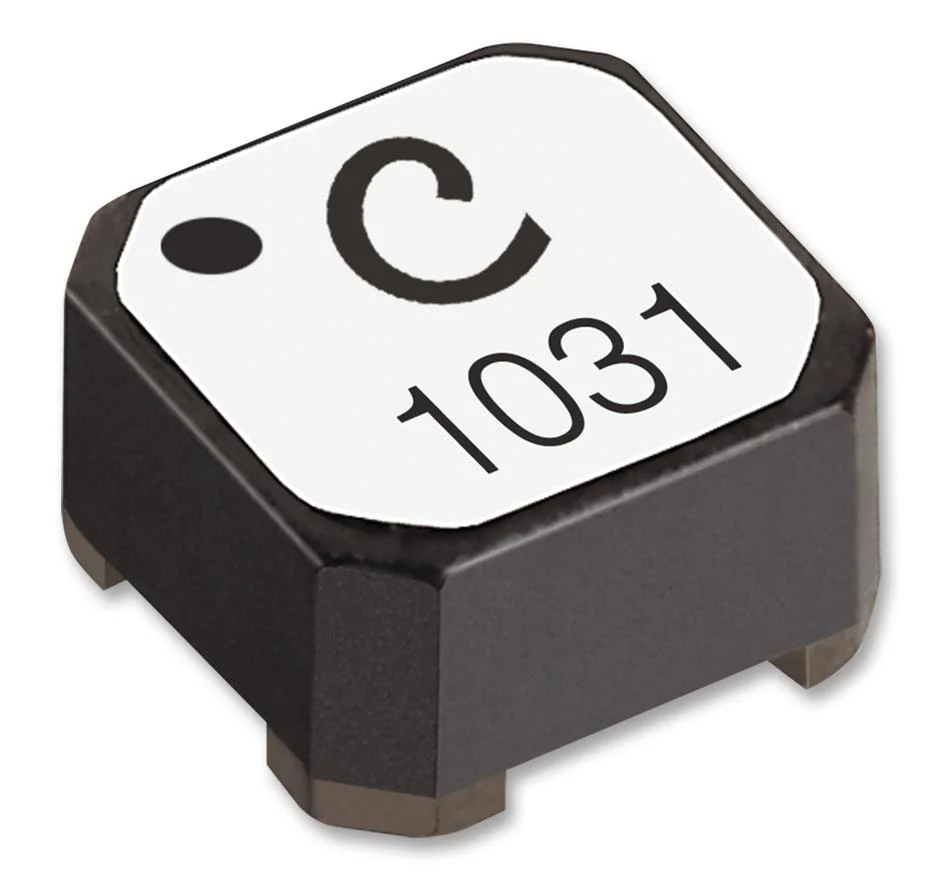

Coilcraft LPD5030V-224MRB LPD5030V-224MRB Inductor Coupled 220 µH 20% 2.625 ohm 160 mA 4.8mm x 2.9mm
The LPD5030V series Miniature Transformer with ferrite core and matte tin over nickel over silver termination. It provides tight coupling, high inductance and excellent current handling. Ideal for use in high density isolated circuit applications. It can be used as flyback transformers, coupled inductors in SEPIC applications and common mode filter chokes.
- Resistance to soldering heat
- Moisture sensitivity level 1
- PCB washing is recommended by only pure water or alcohol
- Halogen-free
Power Management, Industrial
Other details
| Brand | COILCRAFT |
| Part Number | LPD5030V-224MRB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.89
Original: $2.96
-70%Coilcraft LPD5030V-224MRB LPD5030V-224MRB Inductor Coupled 220 µH 20% 2.625 ohm 160 mA 4.8mm x 2.9mmā
$2.96
$0.89Product Information
