Dfrobot DFR0767 DFR0767 IoT Router Carrier Board BCM2711 ARM Cortex-A72 Raspberry Pi Compute Module New

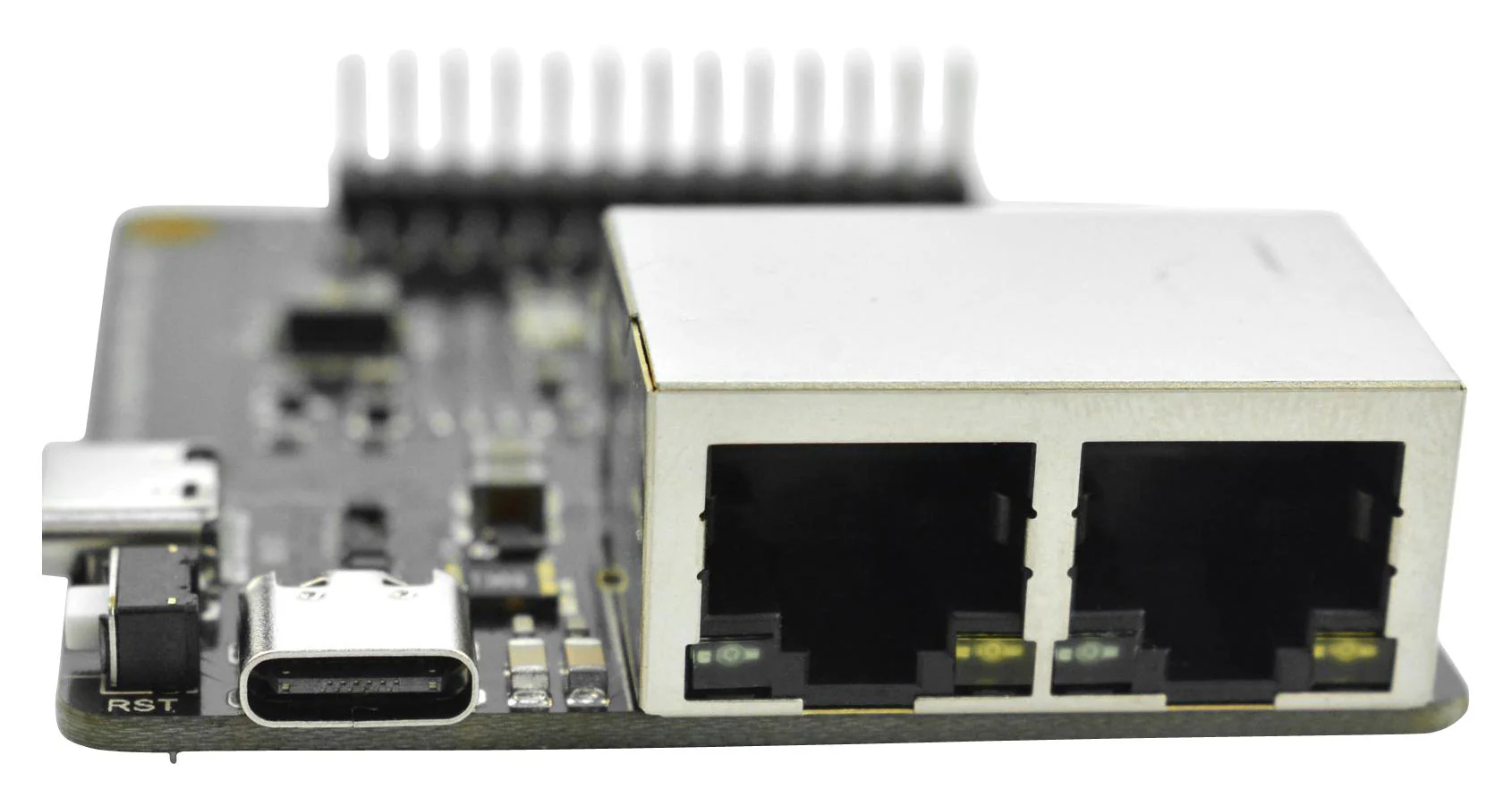

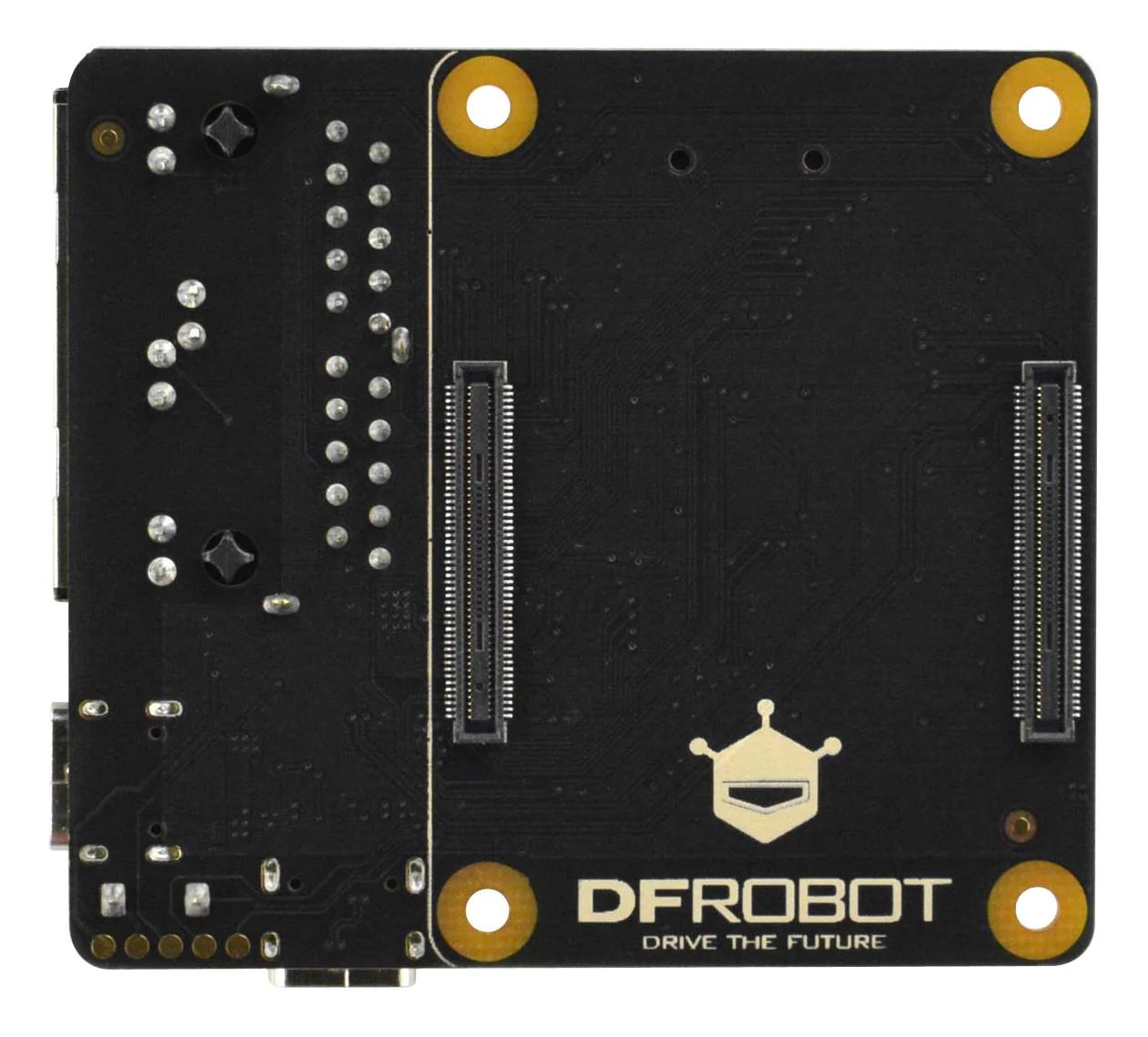

Raspberry Pi compute module 4 IoT router carrier board mini. This is an internet expansion board based on the Raspberry Pi compute module 4. When connecting with a gigabit network card via PCle, it brings Raspberry Pi CM4 two full-speed gigabit network ports and offers better performance, lower CPU usage and higher stability for a long time work compared with a USB network card. Besides with a mini size of 55 x 62mm, the board still retains the characteristic GPIO pin header of Raspberry Pi which makes it applicable for connecting other actuators, sensors and smart cooling fan. Furthermore, there is also a USB2.0 interface that can be connected to mobile hard drives, printers, WI-FI modules, LTF modules, etc. The powerful performance of BCM2711 4 core 1.5GHz Cortex-A72 and the rich software support in the Raspberry Pi community make this board a solid foundation for building high-performance gateways, smart routers and home IoT platforms.
- Provides OpenWRT open-source router system
- Compatible with Raspberry OS, Ubuntu server and other Raspberry Pi systems
- Ethernet: ETH1: compute module 4 built-In and ETH2: PCI express 1000BASE-T NIC
- 1x USB-C: power only and 1x USB-C: USB 2.0 high speed
- Storage card: microSD slot (Only modules without eMMC supported)
- GPIO: 26pin GPIO compatible with Raspberry Pi
- Power supply: USB-C 5V/3A
- Operating temperature range 0°C to 80°C
- Connected to peripherals and used as a mini-NAS, wireless network bridge, or LTE Internet terminal
CM4 IoT router carrier board mini, Acrylic case with heatsink.
Product details
| Silicon Manufacturer | Broadcom |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-A72 |
| Silicon Core Number | BCM2711 |
| Silicon Family Name | BCM2xxx |
| For Use With | Raspberry Pi Compute Module |
| Kit Contents | 1 x Compute Module 4 IoT Router Carrier Board Mini |
| Product Range | - |
Other details
| Brand | DFROBOT |
| Part Number | DFR0767 |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
