Dfrobot SEN0240 SEN0240 Analog EMG Sensor Arduino Development Boards

Dfrobot SEN0240 SEN0240 Analog EMG Sensor Arduino Development Boards

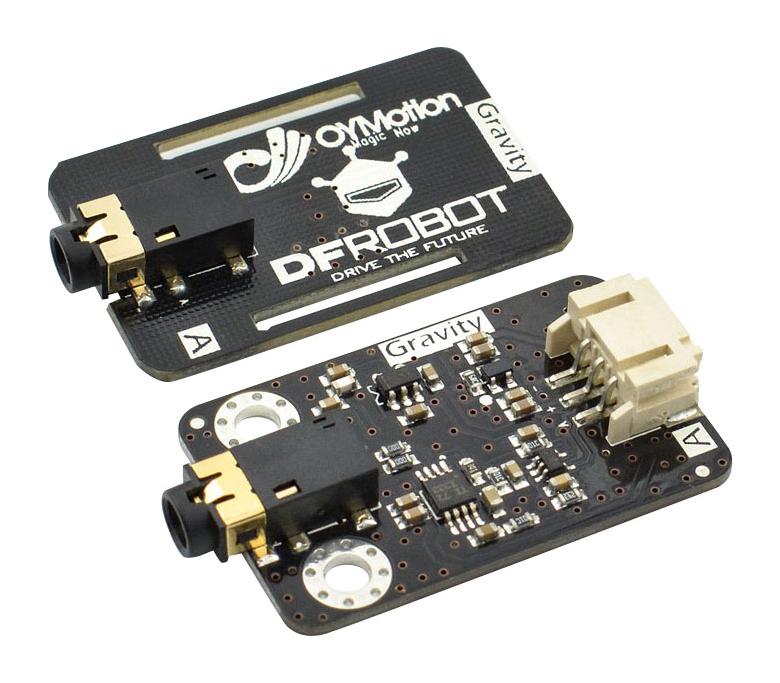

Gravity analogue EMG sensor by OYMotion integrates filtering circuit and amplified circuit. It amplifies minimal sEMG within ±1.5mV 1000 times and depresses noises (especially power frequency interference) by differential input and analogue filter circuit. The output signal is analogue which takes 1.5V as the reference voltage. The output voltage range is 0 to 3.0V. The signal strength depends on the intensity of muscle activities. The output signal waveform indicates the muscle activity and contributes to analyse and research the sEMG. Specifically, we can use Arduino as a controller to detect muscle activities, e.g. check whether the muscle is tense, the muscle strength.
  • Metal dry electrode, long life, easy to use
  • Differential input, high common mode rejection ratio
  • Low power consumption, single power supply
  • Supply voltage range from +3.3V to 5.5V
  • ±1.5mV detection range, PJ-342 electrode connector
  • PH2.0-3P module connector
  • Operating temperature range from 0°C to 50°C
  • Size is 22mm x 35mm (signal transmitter board), 22 x 35mm (dry electrode board)
Contents

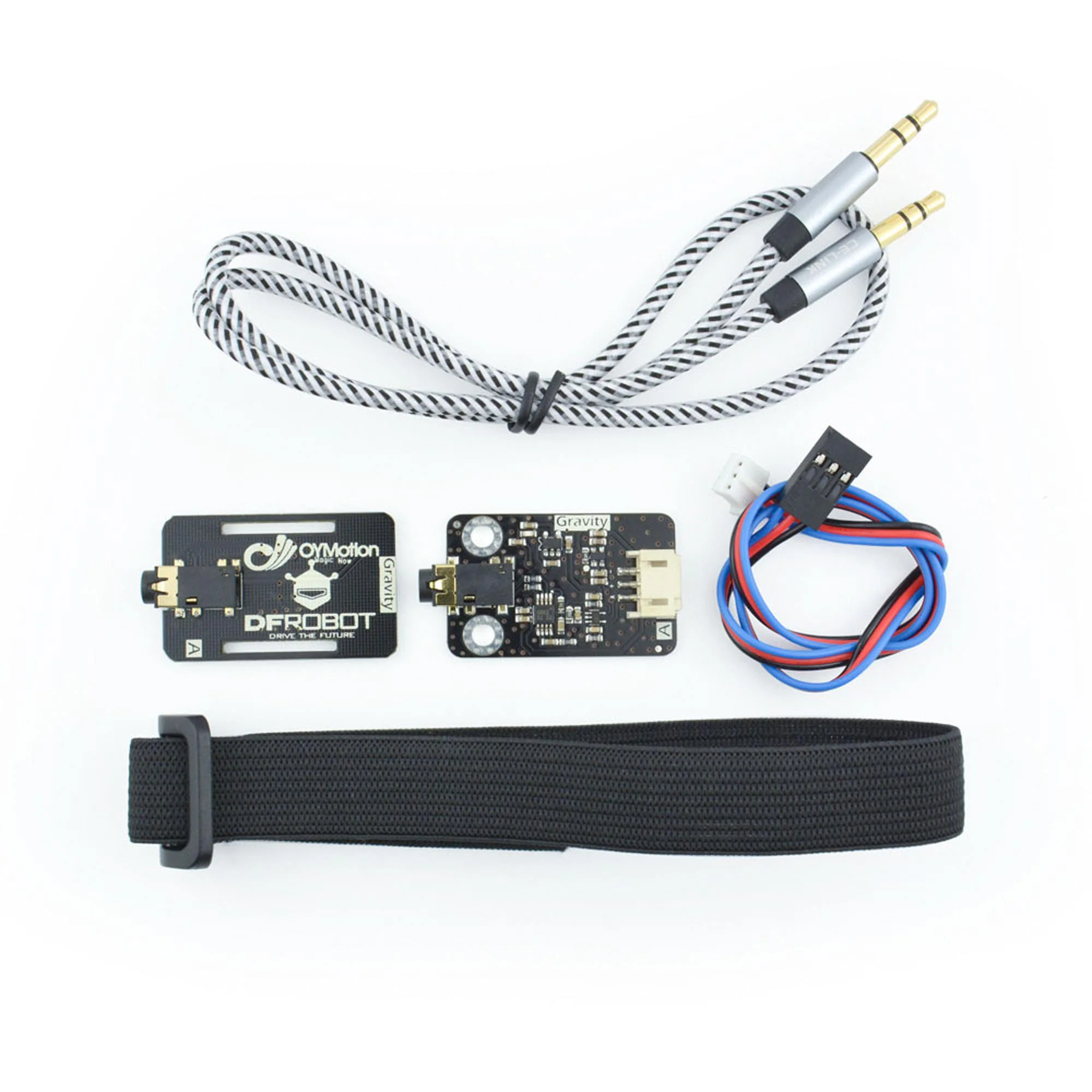

EMG Dry Electrode Board x1, Wrist Belt x1, Electrode Cable x1, Emg Signal Transmitter Board x1, Gravity Analogue Cable 3 Pin x1.

Other details

Brand DFROBOT
Part Number SEN0240
Quantity Each
Manufacturer Product Page EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

$22.79

Original: $75.95

-70%
Dfrobot SEN0240 SEN0240 Analog EMG Sensor Arduino Development Boards—

$75.95

$22.79

Product Information

Shipping & Returns

Description

Gravity analogue EMG sensor by OYMotion integrates filtering circuit and amplified circuit. It amplifies minimal sEMG within ±1.5mV 1000 times and depresses noises (especially power frequency interference) by differential input and analogue filter circuit. The output signal is analogue which takes 1.5V as the reference voltage. The output voltage range is 0 to 3.0V. The signal strength depends on the intensity of muscle activities. The output signal waveform indicates the muscle activity and contributes to analyse and research the sEMG. Specifically, we can use Arduino as a controller to detect muscle activities, e.g. check whether the muscle is tense, the muscle strength.
  • Metal dry electrode, long life, easy to use
  • Differential input, high common mode rejection ratio
  • Low power consumption, single power supply
  • Supply voltage range from +3.3V to 5.5V
  • ±1.5mV detection range, PJ-342 electrode connector
  • PH2.0-3P module connector
  • Operating temperature range from 0°C to 50°C
  • Size is 22mm x 35mm (signal transmitter board), 22 x 35mm (dry electrode board)
Contents

EMG Dry Electrode Board x1, Wrist Belt x1, Electrode Cable x1, Emg Signal Transmitter Board x1, Gravity Analogue Cable 3 Pin x1.

Other details

Brand DFROBOT
Part Number SEN0240
Quantity Each
Manufacturer Product Page EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
