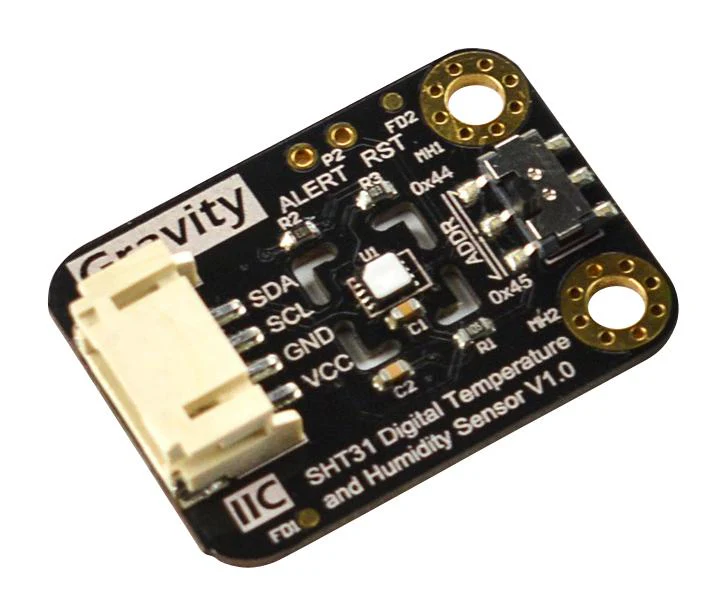

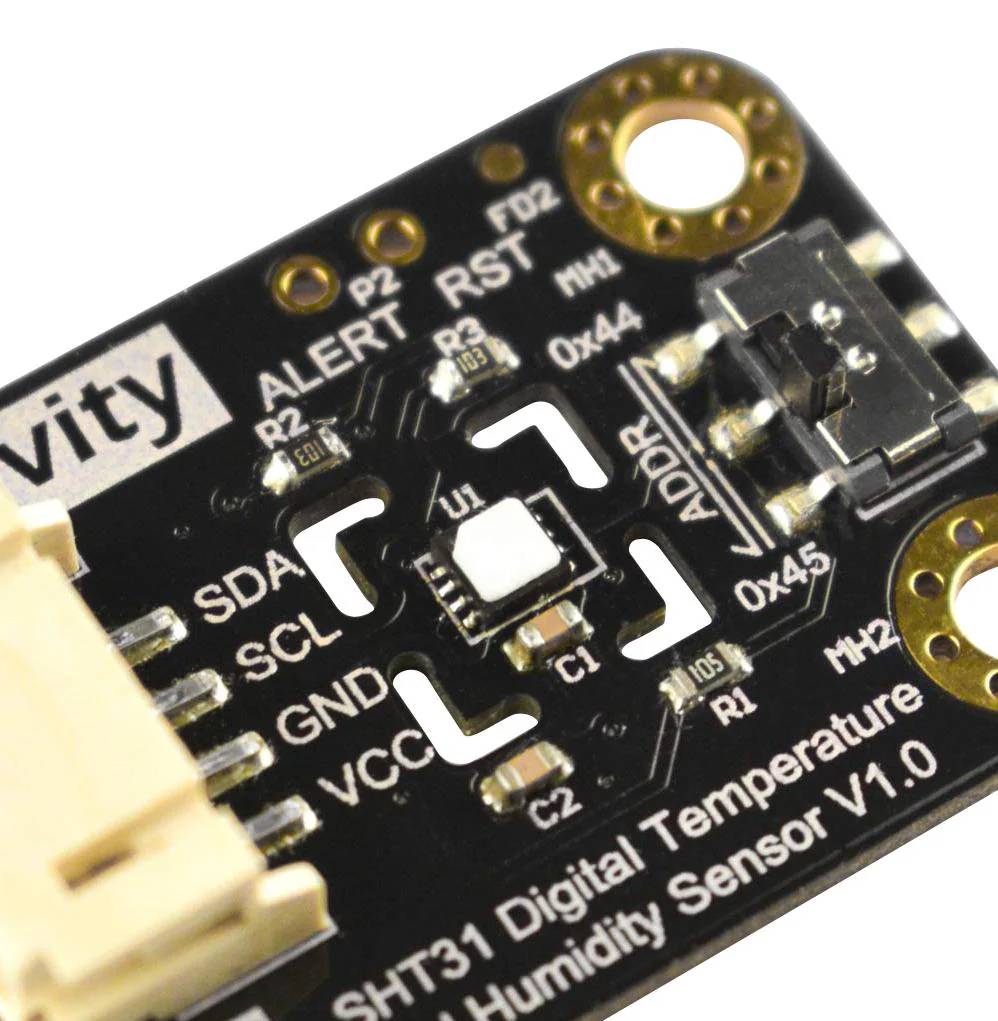

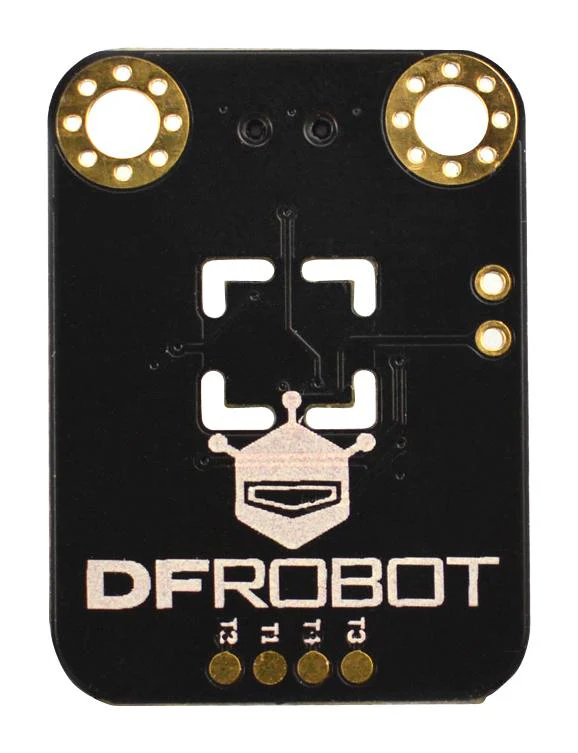

Dfrobot SEN0334 SEN0334 Digital Temperature and Humidity Sensor Gravity SHT31-F Arduino/micro:bit/ESP32 Boards

Gravity: SHT31-F digital temperature and humidity sensor is based upon the Sensirion SHT31-F sensor IC. Thanks to Sensirion's CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT31-F offers high reliability and long-term stability with low power consumption, fast response and strong anti-interference ability. The sensor supports I2C communication, and is compatible with 3.3V/5V controllers like Arduino, micro:bit, ESP32. It is easy to achieve precise and high-reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

• High precise, internal auto-calibrated, digital output
• Low power consumption, fast response, and strong anti-interference
• IP67 dust-proof protective film
• Compatible with 3.3V/5V controllers
• Outline dimension is 32x22mm/1.26x0.87"

Contents

Gravity: SHT31-F digital temperature and humidity sensor x 1, Gravity-4P I2C/UART sensor connector x 1, Black 2.54-2P single row x 1.

Product details

Accessory Type	Gravity SHT31-F Digital Temperature and Humidity Sensor
For Use With	Arduino, micro:bit and ESP32 Boards
Product Range	-

Other details

Brand	DFROBOT
Part Number	SEN0334
Quantity	Each
Technical Data Sheet EN
