Dfrobot SEN0429 Sensor Board Distance Ranging TMF8701 2.7 V to 3.3 Arduino UNO R3

SEN0429 is a Fermion: TMF8701 ToF distance ranging sensor (10-600mm) (breakout). The TMF8701 is a time-of-flight distance ranging sensor that uses the time difference between light pulses to measure distance. It provides single zone detection of an object irrespective of the colour, reflectivity and texture of the object. The TMF8701 offers high dynamic range and operates in either a proximity mode (1-10cm) or a ranging mode (10-60cm) for detection sensing. And the device can make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight. A built-in histogram is featured to delivers dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters. TMF8701 outputs data through a I2C fast-mode communications interface and an integrated micro controller, which is featured with all algorithms included on-chip with no need for external optics.

• 21â�° FOI, detect the object closest to the centre
• 940nm VCSEL class 1 eye safety
• Low power consumption
• Operating voltage is 2.7~3.3V
• Dimension is 21Ã�14.5mm

Contents

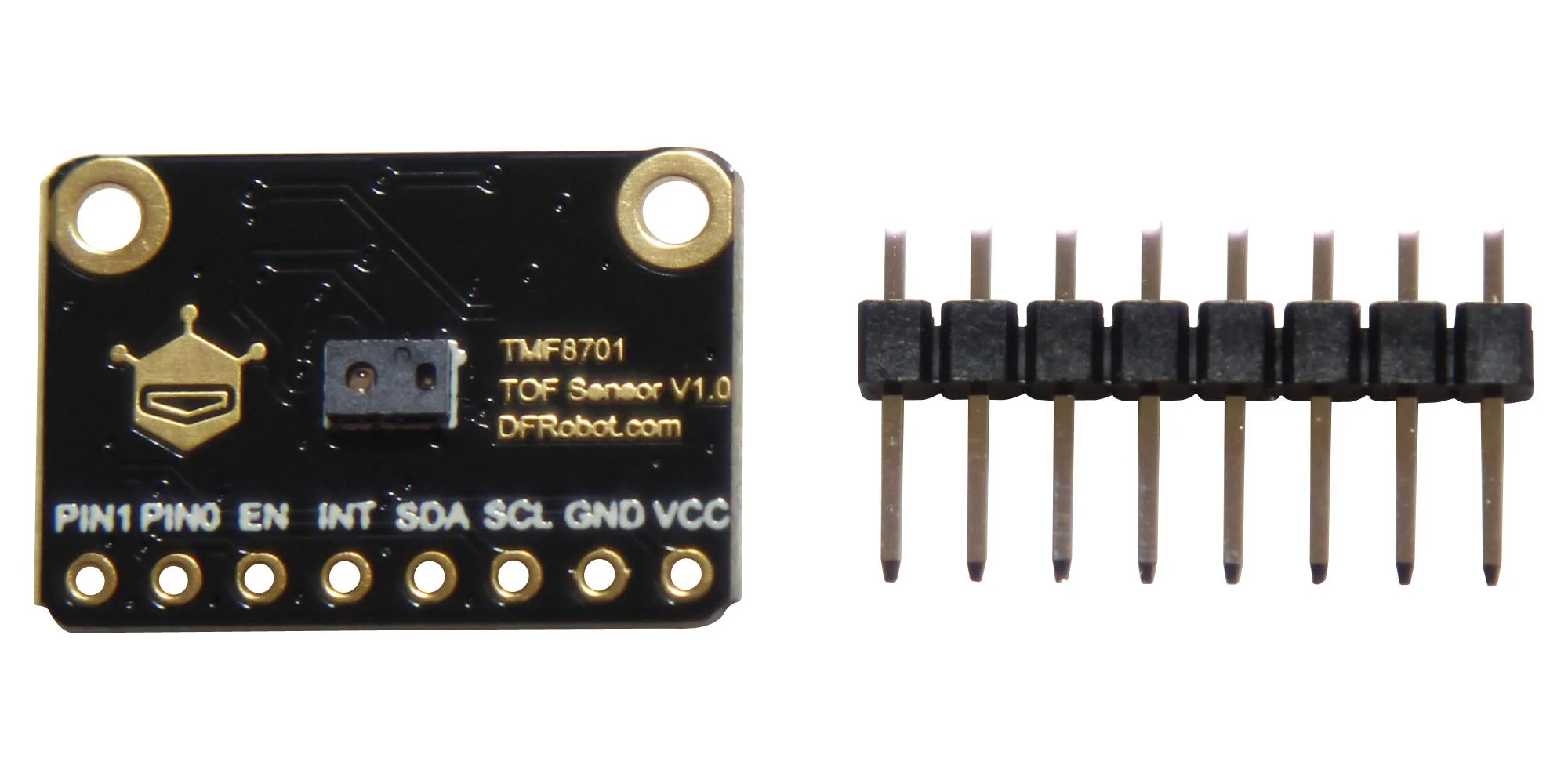

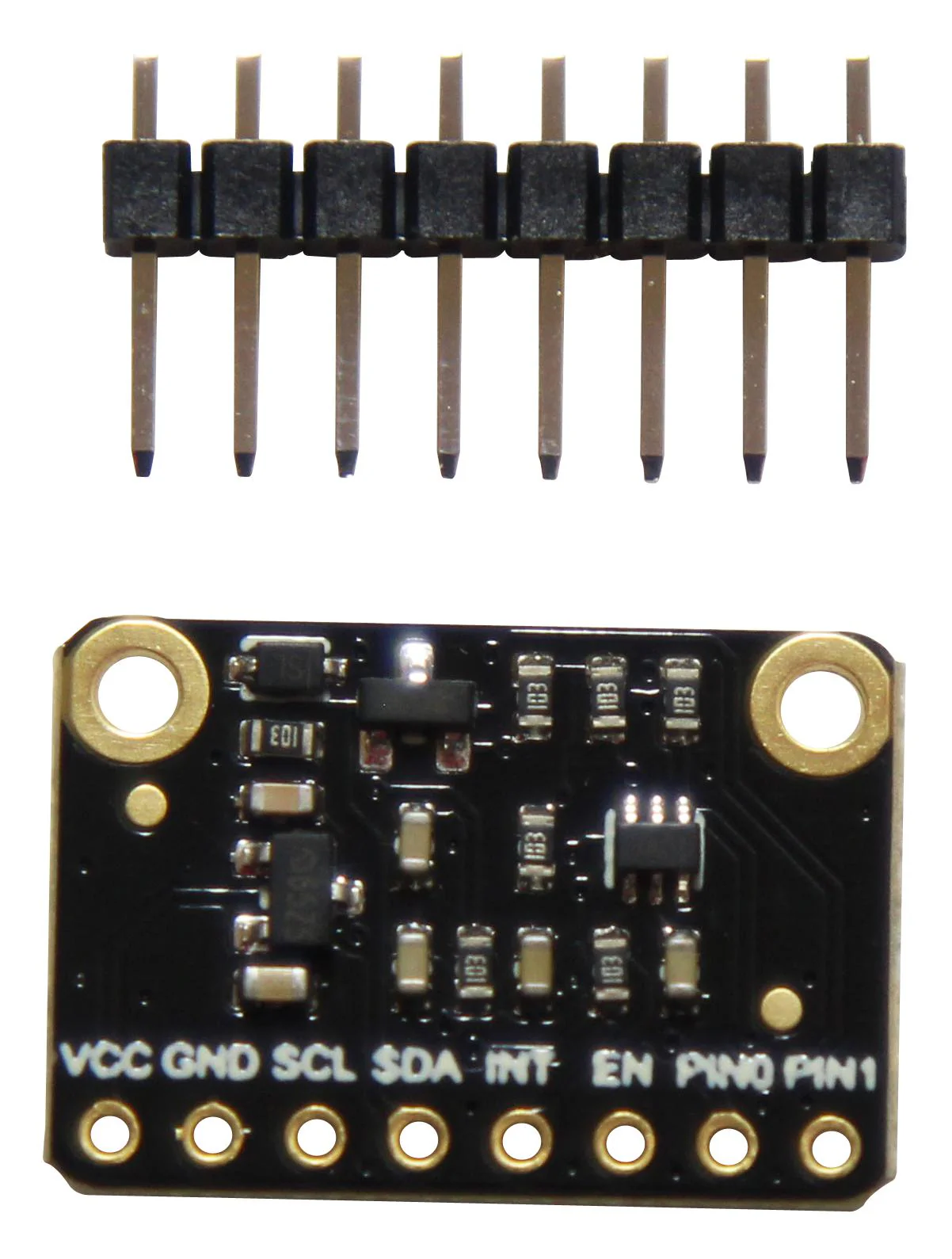

Fermion: TMF8701 ToF distance ranging sensor (10-600mm) x1, 2.54-8P black single-row connector x1.

Product details

Silicon Manufacturer	AMS
Core Architecture	-
Core Sub-Architecture	-
Silicon Core Number	TMF8701
Silicon Family Name	-
For Use With	Arduino UNO v3.0[R3] Board
Kit Contents	Time-of-Flight Distance Ranging Sensor TMF8701, 8P Black Single-Row Connector
Product Range	-

Other details

Brand	DFROBOT
Part Number	SEN0429
Quantity	Each
Technical Data Sheet EN
