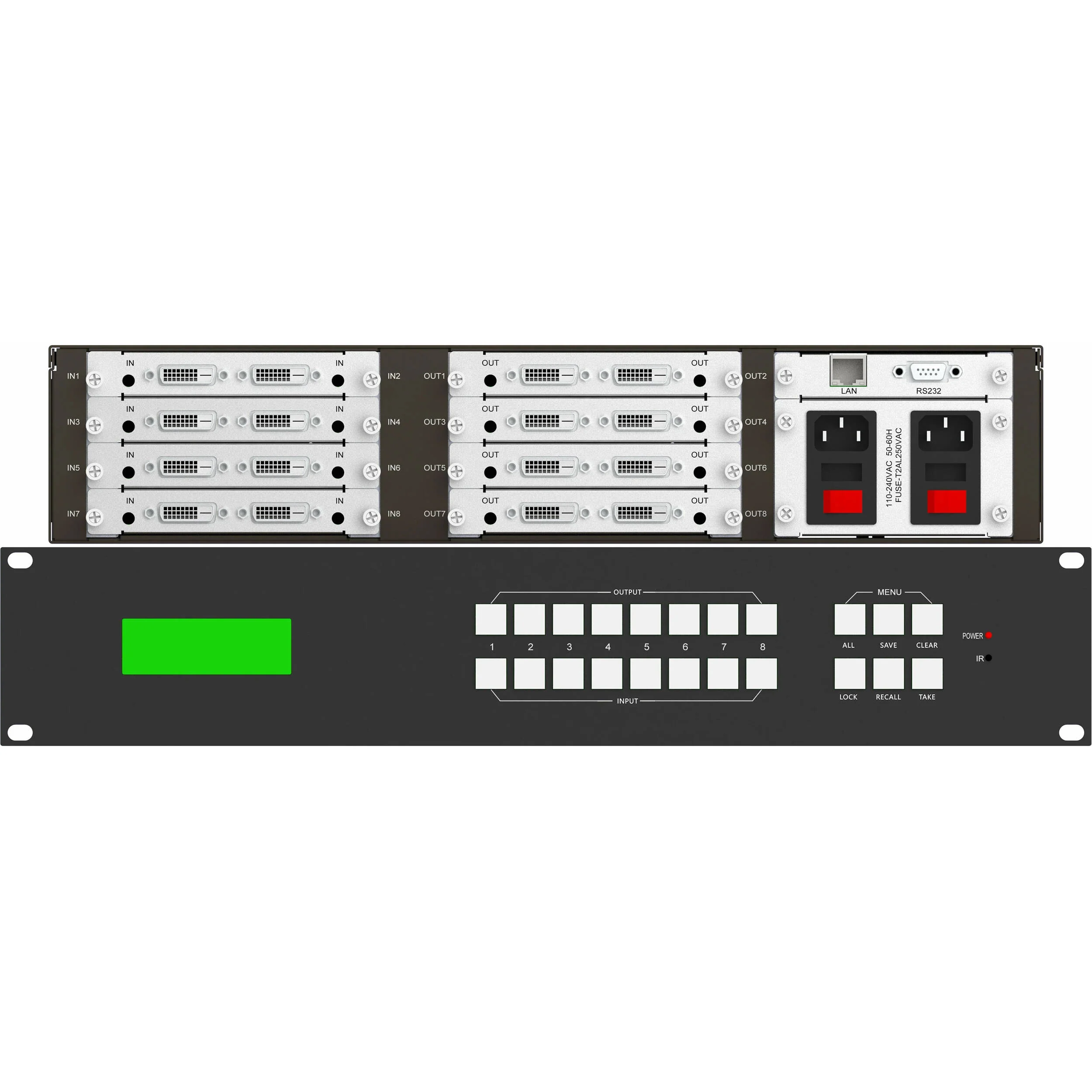

DVDO 4K 8x8 Modular Matrix Chassis
DVDO Modular Matrix Chassis Overview
DVDO Modular Matrix Chassis Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
UHD 4K at 60
|
| Color Processing |
RGB
YCbCr |
Input
| Input Video Format |
DVI / Fiber / HDMI / RJ45 / SDI
UHD 4K up to 60 fps 1080p up to 60 fps 1080i at 50/60 fps 720p up to 60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
Output
| Output Video Format |
DVI / Fiber / HDMI / RJ45 / SDI
UHD 4K up to 60 fps 1080p up to 60 fps 1080i at 50/60 fps 720p at 60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Audio Outputs |
8x RCA Stereo Female
8x 1/8" / 3.5 mm TRS Stereo |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Output |
HDMI
|
Connectivity
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x RJ45 Control 1x DE-9/DB-9 RS-232 |
| Digital Audio Decoding |
Dolby Digital Plus, Dolby Digital / AC3, Dolby Atmos, DTS, DTS-HD Express, LPCM, Dolby TrueHD
|
| HDCP Support |
Yes, Version 1.4/2.2
|
| HDR Support |
Yes, HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
|
| DTS Compatibility |
DTS, DTS-HD Express
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
Hardware
| Wireless |
No
|
Power
| Power I/O |
2x IEC C14 Input
|
| Power Consumption |
Device: 100 to 240 VAC (100 W)
|
General
| Operating Conditions |
32 to 104Ā°F / 0 to 40Ā°CĀ at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140Ā°F / -20 to 60Ā°CĀ
|
| Certifications |
CE, RoHS
|
| Rack Form Factor |
2 U
|
| Dimensions |
19 x 14.4 x 3.5" / 483 x 365 x 89Ā mm
|
| Weight |
19.8Ā lb / 9Ā kg
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$3,014.71
Original: $10,049.03
-70%DVDO 4K 8x8 Modular Matrix Chassisā
$10,049.03
$3,014.71Product Information
