DVDO 8K HDMI Signal Generator and Analyzer

DVDO 8K HDMI Signal Generator and Analyzer

DVDO 8KSGA-1 Overview

Verify your HDMI system fits HDMI 2.1 and HDCP 2.3 compliance specifications with the DVDO 8K HDMI Signal Generator and Analyzer. The generator features HDMI input and output ports to test both source and display devices. Optical S/PDIF audio input and outputs route the audio signals separately. The device can output up to 64 different video resolution signals up to 8K60 as well as up to 33 test patterns. Test and control functions are available for color space, color depth, HDCP, EDID, HDR, CEC control, and more. Onboard button controls toggle different test modes. Power to the device can be delivered via the included power supply or using the internal 2910mAh battery.

Additional Details
  • Outputs resolutions up to 8K60 4:2:0 10-bit and 40Gb/s video bandwidth as specified in HDMI 2.1
  • Up to 64 video resolutions and 33 patterns
  • Color space: RGB/YCC 4:4:4/YCC 4:2:2/YCC 4:2:0
  • Color depth: 8/10/12-bit
  • Built-in HDR test function in HDMI 2.1
  • HDMI audio source can be from the internal audio or external S/PDIF input audio
  • HDCP 2.3/1.4 encryption verification pass or fail indication
  • EDID Read/Write functionality
  • Analysis of Timing/Format/Info frame/HDCP of HDMI input signal
  • CEC control

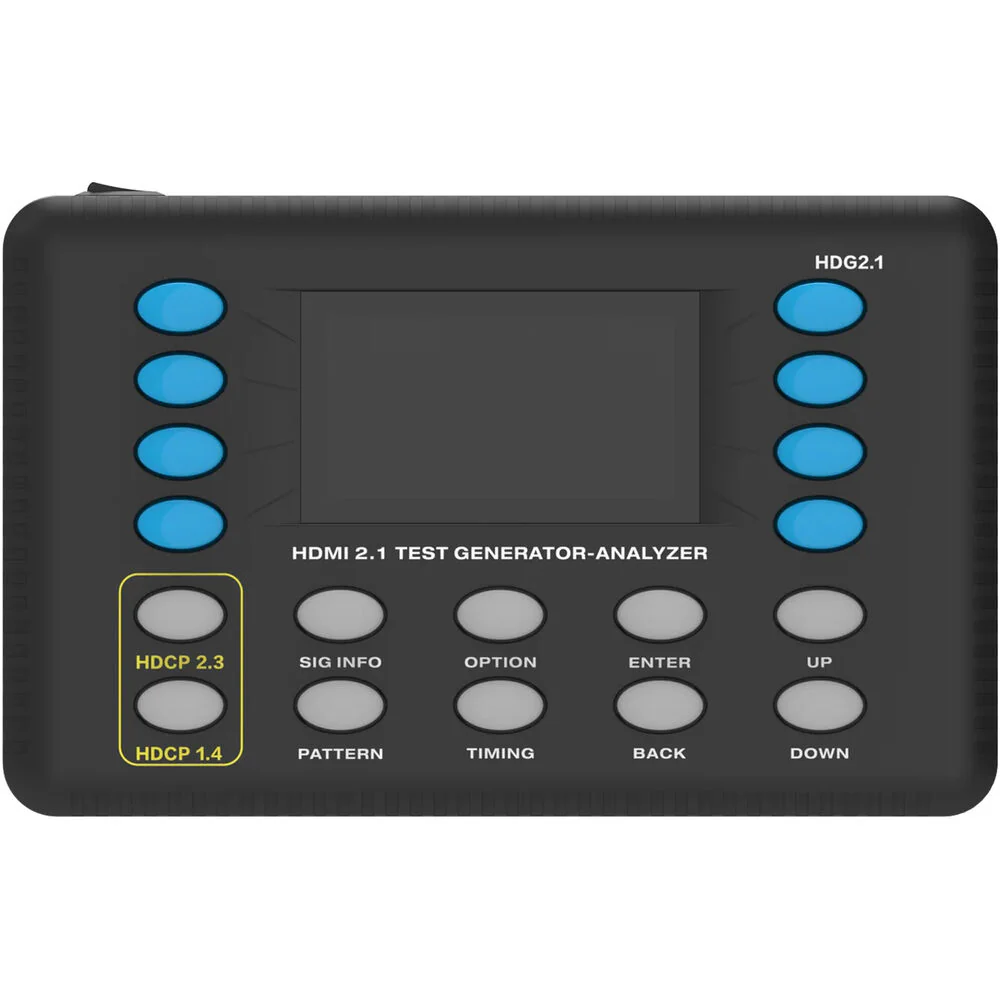

  • Control via front-panel buttons
  • Portable design, built-in lithium battery of 2910mAh
UPC: 880802002026

Items Included

  • DVDO 8K HDMI Signal Generator and Analyzer
  • 3.5mm to DB-9 Serial Cable (3.3')
  • Power Adapter (5V, 2A)
  • Limited 3-Year Manufacturer Warranty

Additional Resources

    DVDO 8KSGA-1 Specs

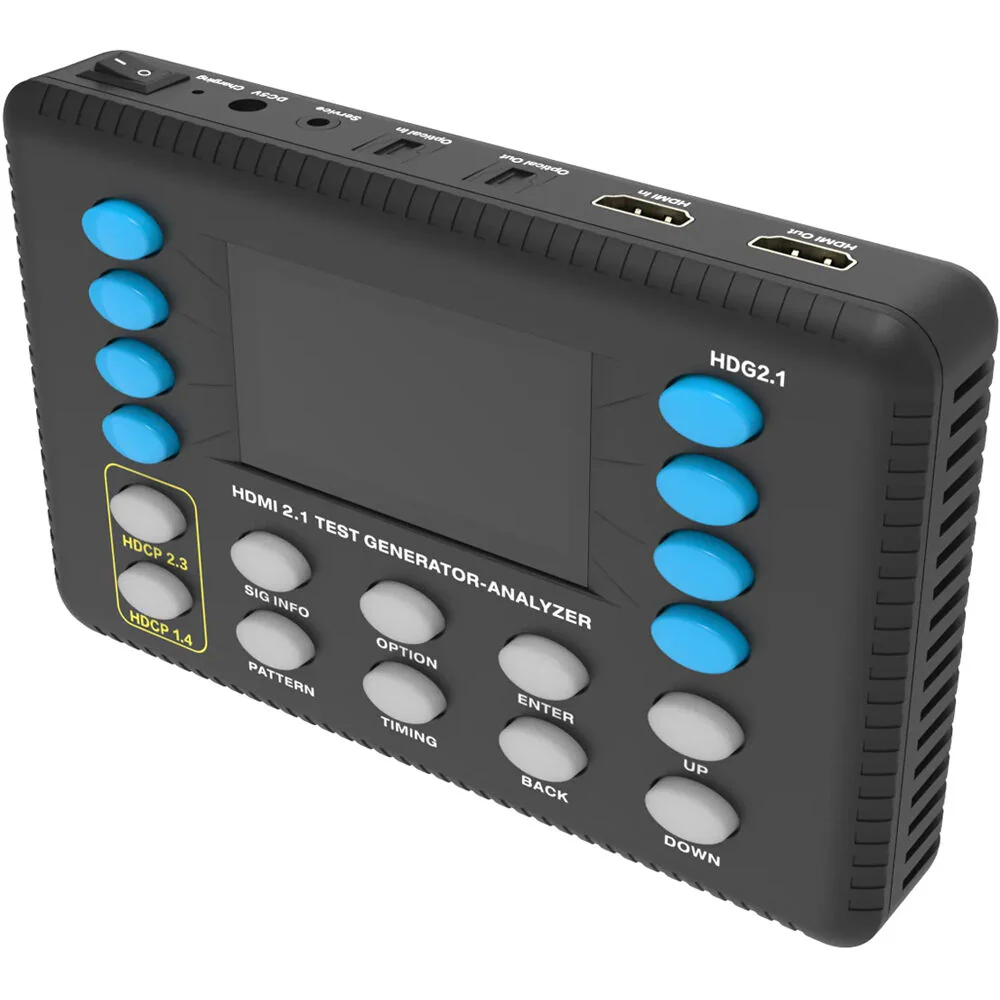

    Inputs/Outputs
    Video I/O
    1x HDMI Input
    1x HDMI Output
    Audio I/O
    1x TOSLINK Input
    1x TOSLINK Output
    Other I/O
    1 x 3.5mm Service Port
    Power
    Power Source
    AC Adapter with Power Brick, Battery
    Battery Type
    1x Internal Rechargeable
    AC Input Power
    100 to 240 VAC, 50 / 60 Hz
    Power Consumption
    7.5 W (Maximum)
    Physical

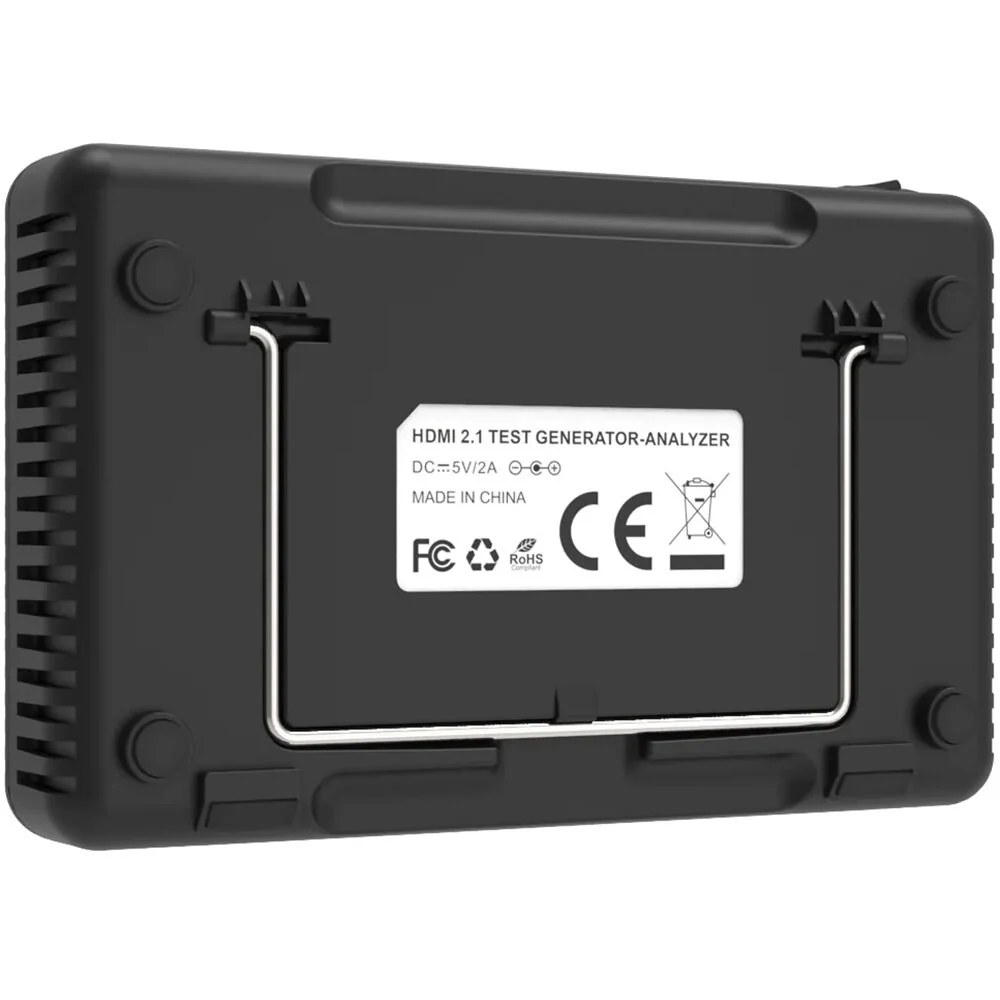

    Mounting
    1x Back Clip
    Color
    Black
    Material of Construction
    Plastic
    Operating Conditions
    32 to 104?F / 0 to 40?C at 20 to 90% Humidity
    Storage Conditions
    -4 to 140?F / -20 to 60?C at 20 to 90% Humidity
    Cable Length
    3.3' / 1 m (Serial Cable)
    Dimensions
    6.5 x 4.1 x 1.5" / 165 x 103 x 37.4 mm
    Weight
    11.3 oz / 320 g
    Packaging Info
    Package Weight
    1.455 lb
    Box Dimensions (LxWxH)
    10.2 x 8.1 x 2.1"
