Erica Synths Black 3109 VCF/VCA Eurorack Module (10 HP)
Erica Synths Black 3109 Overview

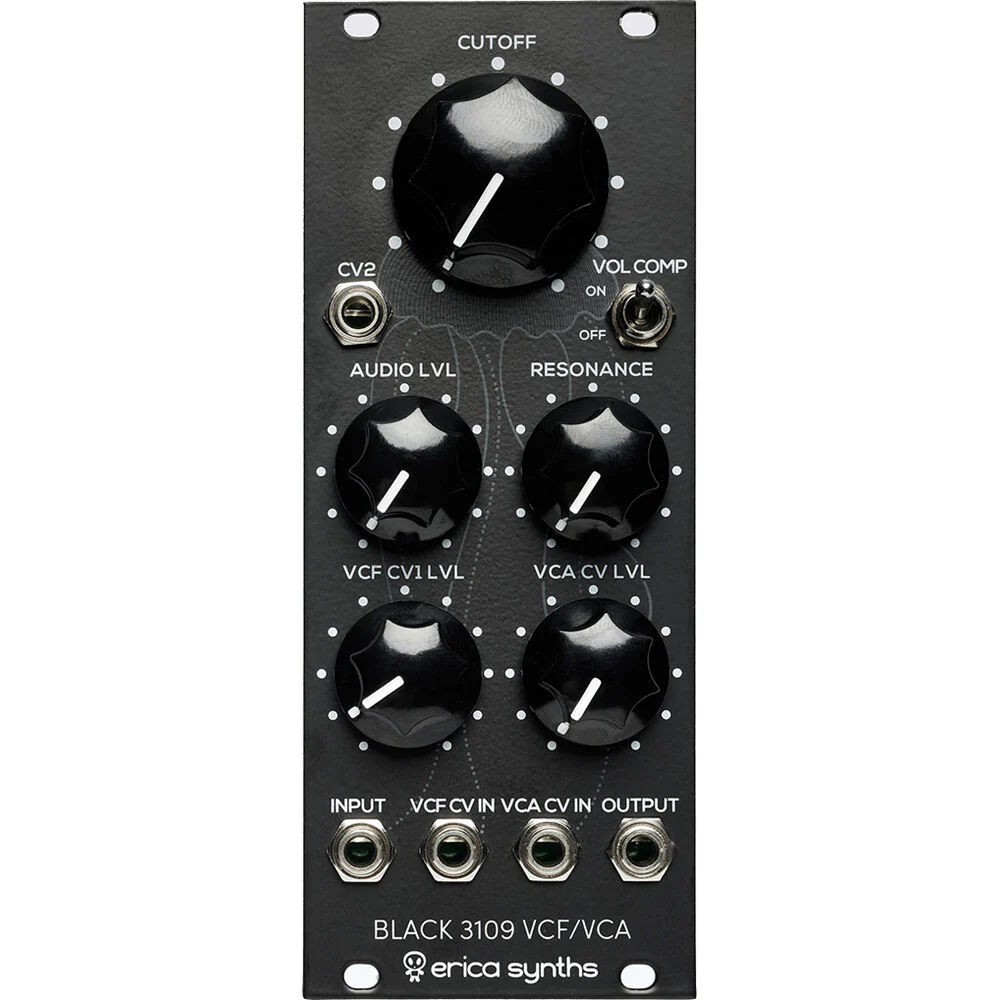

Modular synthesizer enthusiasts looking to recreate the legendary sounds of the Roland Jupiter, Juno, and SH-101 will be impressed with the erica synths Black 3109 VCF/VCA, a Eurorack module that is built around the AS3109 VCF integrated circuit, a contemporary of the original IR3109 used in vintage Roland synthesizers.
The original IR3109 had some drawbacks, which were addressed in the new design, such as a volume drop compensation circuit when using resonance as well as a built-in VCA for more versatility in compact setups. Additionally, 1V/oct tuning is implemented, so you can use this module for perfect VCF keyboard tracking and also as a VCO. The module includes a power ribbon cable and a set of mounting screws.
- 24 dB/oct lowpass VCFĀ
- Volume drop compensationĀ
- Built-in VCAĀ
- Cutoff level attenuverterĀ
- 1V/oct tracking
- Power consumption: +25mA / -25mA
- Module depth: 1.4" / 35mm
Items Included
- Erica Synths Black 3109 VCF/VCA Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential Eurorack Cases
Additional Resources
Erica Synths Black 3109 Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
1x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
No
|
| Eurorack Current Consumption |
25 mA on +12 V Rail
25 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
1x VCA
|
| Envelopes |
No
|
| Filters |
Number of Filters: 1
Characteristic: Analog Type: Low-Pass Slope: 4-Pole/24 dB (LPF) |
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
1x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible) |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm TS CV Input
|
| Control Voltage Level |
Ā±5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Maximum Input Level |
+10 V p-p (VCA CV Level)
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
25 mA on +12 V Rail
25 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
| Package Weight |
0.4 lb
|
| Box Dimensions (LxWxH) |
7.7 x 4.15 x 2.5"
|
