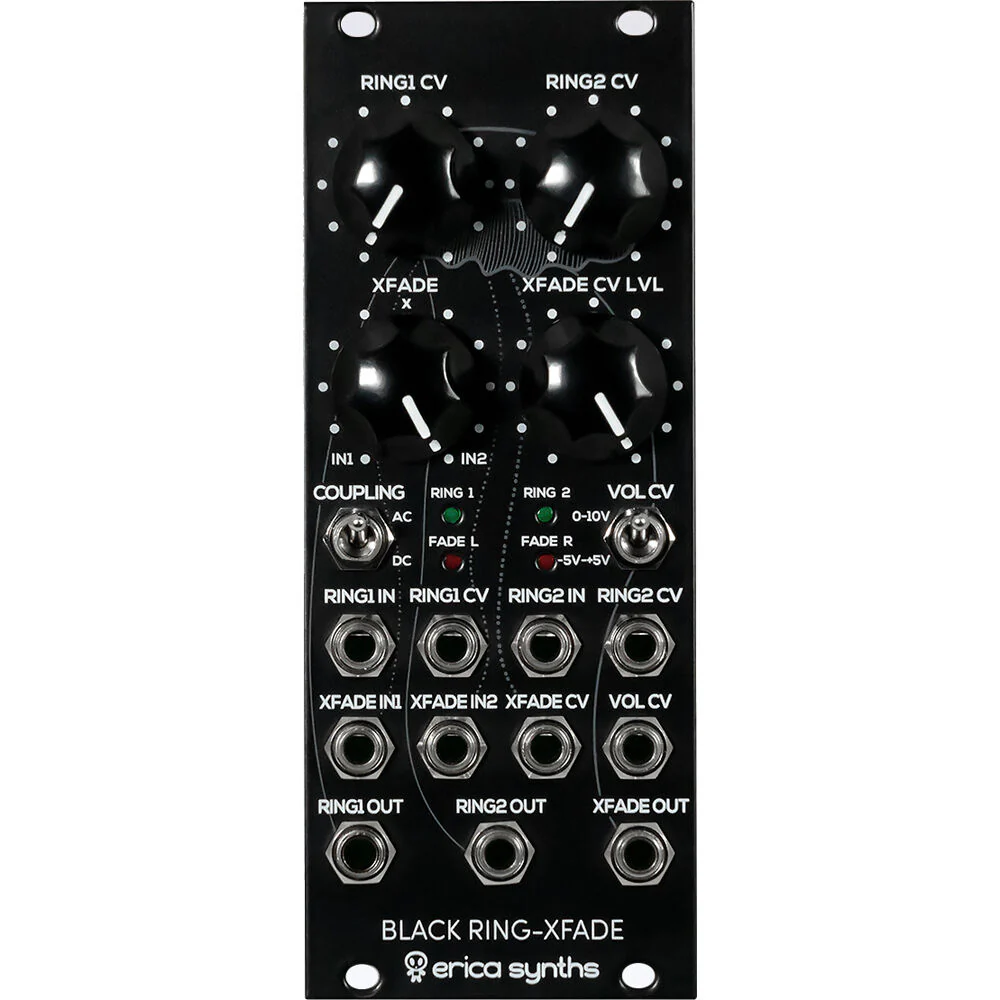

Erica Synths Black Ring-Xfade Eurorack Module (10 HP)

Erica Synths Black Ring-Xfade Eurorack Module (10 HP)

Erica Synths Ring-Xfade Overview

Modular synthesizer enthusiasts looking for an extremely versatile sound shaping tool will be impressed with the erica synths Black Ring-Xfade, a Eurorack module with two unconventional ringmodulators/waveshapers, a crossfader that works with both audio and CV, and a VCA.

Unlike conventional ringmodulator that work only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes the signal through without alterationļæ½if no carrier is present, low-level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or for external signals) topped off with the VCA, and you have an amplitude modulation powerhouse for your modular system. The module includes a power ribbon cable and a set of mounting screws.

  • Dual ringmodulator / waveshaper
  • Carrier-level adjustment
  • Voltage controlled crossfader
  • Manual and CV control over cross-fade
  • Selectable AC (audio) or DC (control voltage) coupling
  • VCA with selectable bias
  • Power consumption: +38mA / -32mA
  • Module depth: 1.4" / 35mm

In the Box

  • Erica Synths Black Ring-Xfade Eurorack Module (10 HP)
  • Ribbon Power Cable
  • Set of Mounting Screws
  • Limited 2-Year Manufacturer Warranty

Not in the Box

    Erica Synths Ring-Xfade Specs

    Key Specs
    Sound Generation
    Analog
    Audio I/O
    4 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
    3 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible)
    CV/Gate I/O
    4 x 1/8" / 3.5 mm TS Modulation CV Input
    Eurorack Current Consumption
    38 mA on +12 V Rail
    32 mA on -12 V Rail
    Horizontal Pitch
    10 HP
    General
    Item Type
    Eurorack Module
    Sound Generation
    Analog
    Keyboard
    No
    Expression Controls
    No
    Number of Pads
    No
    Display
    No
    Sounds
    Maximum Polyphony
    Not Specified by Manufacturer
    Built-In Effects
    No
    Performance Functions
    No
    Built-In Speaker
    No
    Synthesis
    Oscillators
    No
    Mixer
    No
    Amplifiers
    1 x VCA
    Envelopes
    No
    Filters
    No
    Sequencing & Recording
    Sequencer
    No
    Arpeggiator
    No
    Connectivity
    Audio I/O
    4 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
    3 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible)
    Pedal Support
    No
    MIDI I/O
    No
    CV/Gate I/O
    4 x 1/8" / 3.5 mm TS Modulation CV Input
    Control Voltage Level
    Ā±5 V
    Patch Points
    No
    Sync I/O
    No
    Network I/O
    No
    USB
    No
    Media/Memory Card Slot
    No
    Audio Performance
    Maximum Input Level
    +10 V p-p
    Included Software
    No
    Mobile App Compatible
    No
    *As of May, 2023: Check with manufacturer for the most up-to-date compatibility
    Power
    Power Requirements
    Eurorack Power
    Eurorack Current Consumption
    38 mA on +12 V Rail
    32 mA on -12 V Rail
    Physical
    Color
    Black
    Horizontal Pitch
    10 HP
    Included Accessories
    No
    Packaging Info
    Package Weight
    0.39 lb
    Box Dimensions (LxWxH)
    7.8 x 4.15 x 2.5"

    All product and company names are trademarksā„¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $97.77

    Original: $325.91

    -70%
    Erica Synths Black Ring-Xfade Eurorack Module (10 HP)ā€”

    $325.91

    $97.77
