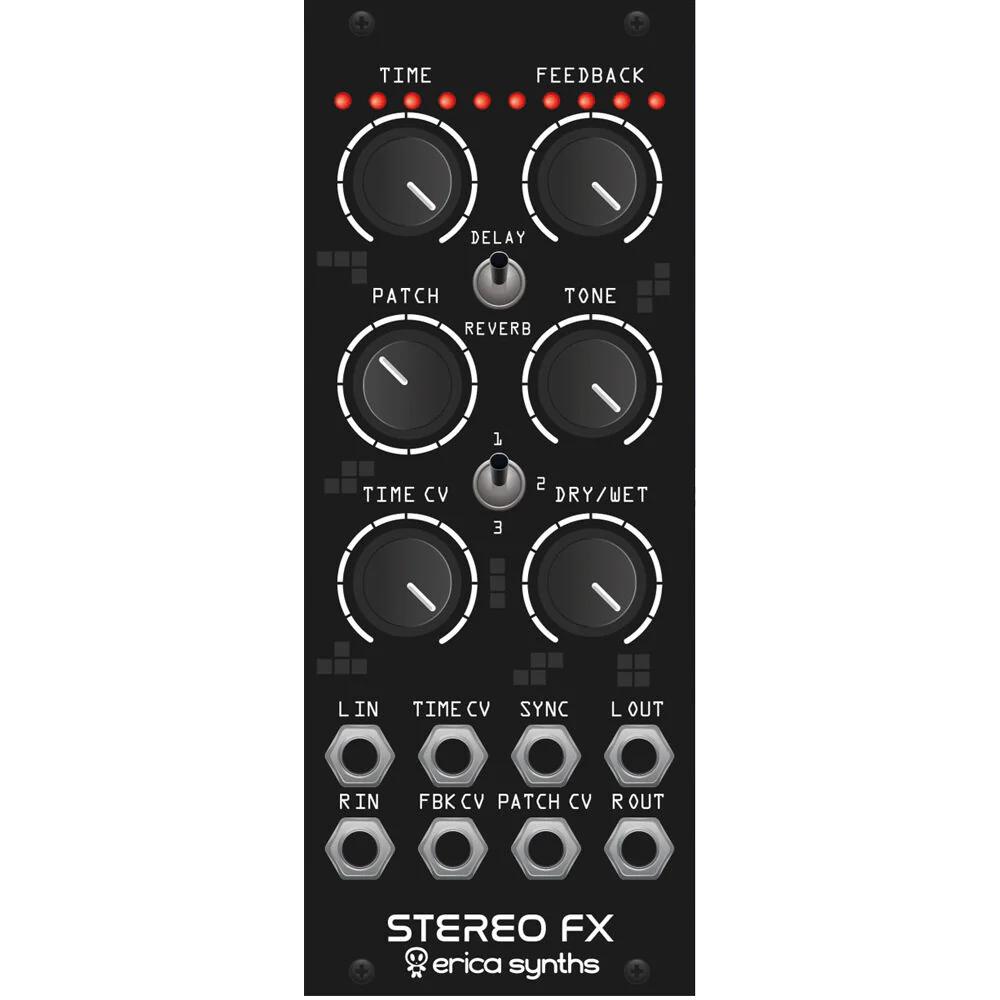

Erica Synths Drum Stereo FX Eurorack Module (10 HP)
Erica Synths 4752275000204 Overview
Add high-fidelity stereo effects to your drum modules with the erica synths Drum Stereo FX, a Eurorack module that provides a wide range of custom delay and reverb effects.
The new DSP engine was developed in collaboration with the Dutch company 112dB and provides 3 delays and 3 reverbs. The CV control over various parameters and the ability to save up to 10 presets will make this module an integral part of any performance rack. The module includes a power ribbon cable and a set of mounting screws.
- Hi-Fi stereo FX module
- 3 delay and 3 reverb effects
- Tap and clock synchronization of delay time
- Delay time divisions and multiplications in sync mode
- Delay time: 3 ms to 3 sec
- 10 preset patches
- CV control over delay time, feedback, and preset selection
- 10 HP Eurorack format module
- Maximum Depth: 1.4" (35mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 123mA, -12V: 40mA
In the Box
- Erica Synths Drum Stereo FX Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
No additional resources available
Erica Synths 4752275000204Specs
| Sound Generation |
Analog/Digital Hybrid
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
6x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
123 mA on +12 V Rail
40 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Sound Generation |
Analog/Digital Hybrid
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
3x Delay
3x Reverb |
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm TS CV Input
|
| Control Voltage Level |
Ā±5 V
|
| Patch Points |
6x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Sync I/O |
1x 1/8" / 3.5 mm TS Clock Input
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
123 mA on +12 V Rail
40 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
| Package Weight |
0.505 lb
|
| Box Dimensions (LxWxH) |
7.7 x 4.2 x 2.5"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
