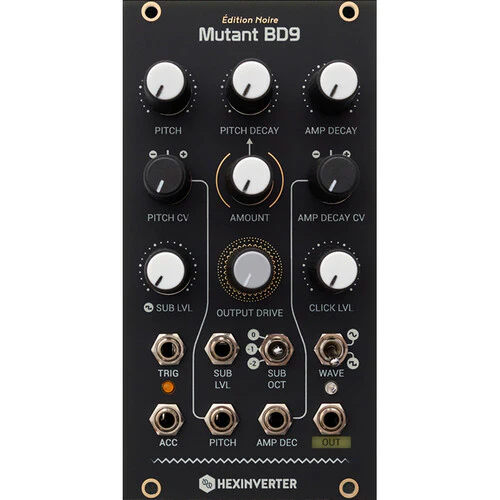

Erica Synths Hexinverter Mutant BD9 Bass Drum Synth Eurorack Module (13 HP)

Erica Synths Hexinverter Mutant BD9 Bass Drum Synth Eurorack Module (13 HP)

Erica Synths Mutant BD9 Overview

Create your own stomping and tearing kick drum samples and rhythms with the Erica Synths Hexinverter Mutant BD9, a 13 HP Eurorack drum synth module. This take on the legendary 909 combines the vibe of the original drum machine with voltage-controlled distortion to deliver enhanced texture, impact, and versatility. The primary analog VCO offers classic 909-esque booming bass drums but can also be switched to a square wave for more aggressive, attacking electronic kicks.

Additional Details


  • The primary analog VCO offers classic 909 inspired bass drums but can also be switched to generate a square wave bass drum.
  • The pitch of the VCO spans several octaves, from ~30 to 240 Hz, and can be modulated with voltage control (VC).
  • A novel Pitch Decay circuit allows adjustment of the duration and amount of the pitch-modulation envelope applied to the bass drum, from quick blips to tom-like sweeps.
  • The Amplitude Decay provides control of the length of the bass drum, from short punchy kicks to massive booms. This parameter is voltage-controlled, with a snappy CV response time, allowing modulation of the duration of kicks step by step on the sequence.
  • The Click generator manages the attack intensity of the BD9. The level of this effect is adjustable to a fairly dramatic range.
  • A square wave sub-oscillator derived from the primary oscillator's pitch can be mixed in (manually or VC).
  • The overall timbre of the BD9 varies with the drive control from warm, analog bass drums at low settings to more aggressive, distorted sounds at high settings. Rather than having line-level outputs like typical drum machines, the BD9 sends stronger signal levels optimized for modular usage.

Items Included

  • Erica Synths Hexinverter Mutant BD9 Bass Drum Synth Eurorack Module (13 HP)
  • Power Cable
  • Mounting Screws

Additional Resources

    Erica Synths Mutant BD9 Specs

    Key Specs
    Sound Generation
    Analog / Analog Modeling / Digital
    Audio I/O
    1x 1/8" / 3.5 mm Modular/Eurorack Output
    MIDI I/O
    No
    CV/Gate I/O
    2x 1/8" / 3.5 mm CV Input
    1x 1/8" / 3.5 mm Trigger Input
    Patch Points
    No
    Eurorack Current Consumption
    Not Specified by Manufacturer
    Horizontal Pitch
    13 HP
    General
    Item Type
    Eurorack Module
    Kit Components
    Sound Generation
    Analog / Analog Modeling / Digital
    Expression Controls
    No
    Number of Pads
    No
    Sounds
    Built-In Effects
    1x Distortion/Drive: Overdrive
    Built-In Speaker
    No
    Synthesis
    Oscillators
    1x Variable
    1x Variable Sub (Square)
    Mixer
    No
    Amplifiers
    No
    Envelopes
    No
    Filters
    No
    LFOs
    No
    Sequencing & Recording
    Sequencer
    No
    Arpeggiator
    No
    Connectivity
    Audio I/O
    1x 1/8" / 3.5 mm Unbalanced Mono Modular/Eurorack Output
    MIDI I/O
    No
    CV/Gate I/O
    2x 1/8" / 3.5 mm CV Input
    1x 1/8" / 3.5 mm Trigger Input
    Patch Points
    No
    Sync I/O
    No
    Power
    Power Requirements
    Eurorack Power
    Eurorack Current Consumption
    Not Specified by Manufacturer
    AC/DC Power Adapter
    Included
    Physical
    Horizontal Pitch
    13 HP
    Included Accessories
    Power Cord
    Dimensions
    5.1 x 2.6 x 1.2" / 129.5 x 66 x 30.5 mm (Bench)
    Packaging Info
    Package Weight
    0.485 lb
    Box Dimensions (LxWxH)
    8.1 x 5.1 x 2.6"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
