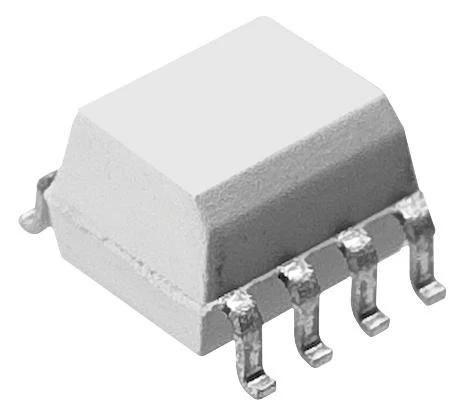

FAIRCHILD SEMICONDUCTOR FOD060LR2 Optocoupler, Digital Output, 1 Channel, 3.75 kV, 10 Mbps, SOIC, 8 Pins
The FOD060LR2 is a 2-channel 3.3V 10Mbps Logic Output Optocoupler consists of an AlGaAS LED, optically coupled to a very high-speed integrated photo-detector logic gate. Devices include a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over wide temperature range. A maximum input signal of 5mA will provide a minimum output sink current of 13mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 50kV/�s at 1,000V common mode.
- Fan-out of 8 over -40 to +85�C temperature range
- Logic gate output
- Strobable output (single channel devices)
- Wired OR-open collector
Applications
Communications & Networking, Power Management, Computers & Computer Peripherals, Industrial
Product details
| Optocoupler Case Style | SOIC |
| No. of Channels | 1 Channel |
| Packaging | Each |
| Product Range | - |
| Data Rate | 10Mbps |
| Isolation Voltage | 3.75kV |
| No. of Pins | 8Pins |
Other details
| Brand | FAIRCHILD SEMICONDUCTOR |
| Part Number | FOD060LR2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.73
Original: $2.44
-70%FAIRCHILD SEMICONDUCTOR FOD060LR2 Optocoupler, Digital Output, 1 Channel, 3.75 kV, 10 Mbps, SOIC, 8 Pins—
$2.44
$0.73Product Information
