Hammond 1551V3GY Plastic Enclosure Small ABS 60 mm 20 IP30

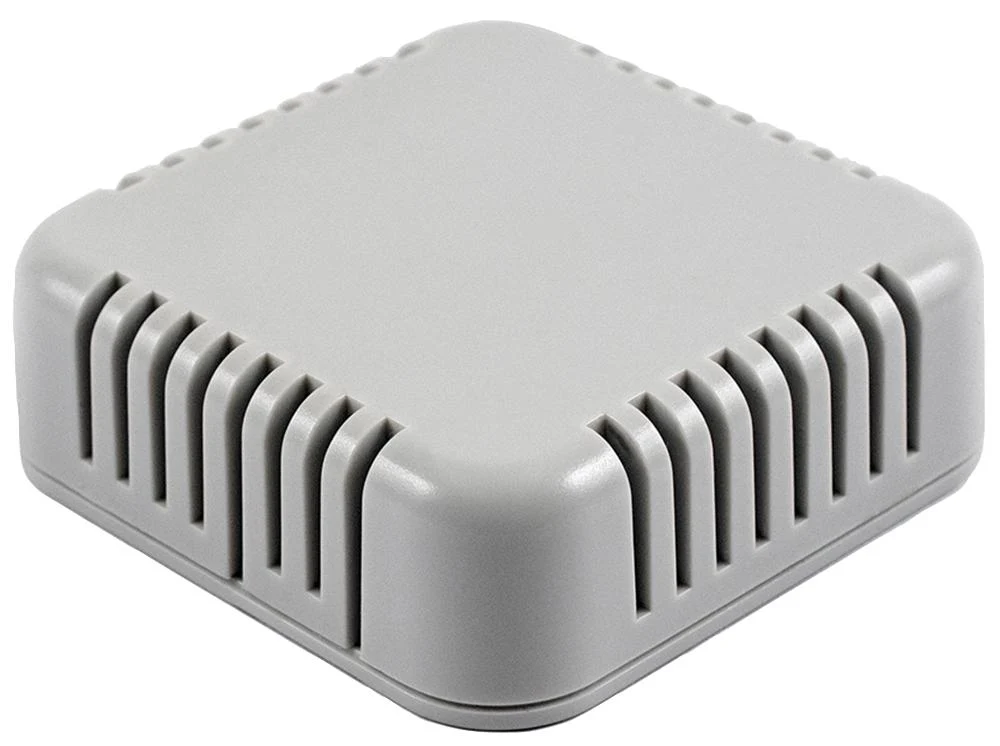

A general purpose ABS miniature vented enclosure that protects electronics from harmful contact with hands or tools, but allows entry of air and moisture for applications which require environmental exposure. Ideally suited for mounting of printed circuit boards.

• Slots on the base of the enclosure allow for easy wall-mounting.
• Knockout on the base can be removed with a screwdriver and used for wire entry.
• Molded in ABS plastic (material has a UL94-HB rating).
• Satin texture finish.
• Enclosure features a snap-fit assembly and can be reopened repeatedly as needed. No hardware required.
• 4 PC board standoffs molded into interior
• To secure PC board use self tapping #2 x 3/16" screws (not included)
• Enclosure base features: Assembly hooks, wall-mounting slots, snap-fit closures, wire entry knockout, PC board standoffs
• Flammability rating: UL94-HB
• IP Rating: IP30

• Weight: 23g

Product details

Enclosure Type	Small
Enclosure Material	ABS
External Height - Metric	60mm
External Width - Metric	60mm
External Depth - Metric	20mm
IP Rating	IP30
Body Colour	Grey
NEMA Rating	-
External Height - Imperial	2.36"
External Width - Imperial	2.36"
External Depth - Imperial	0.79"
Product Range	1551V Series

Other details

Brand	HAMMOND
Part Number	1551V3GY
Quantity	Each
Technical Data Sheet EN
