Infineon BTS436L2GATMA1 Power Load Switch High Side N-MOSFET 1 Output 0.038 ohm On State 60 V 40 A TO-263-5

Smart high-side power switch. Suitable for use in µC compatible high-side power switch with diagnostic feedback for 5V, 12V and 24V grounded loads, all types of resistive, inductive and capacitive loads, most suitable for loads with high inrush currents so as lamps, replaces electromechanical relays, fuses and discrete circuits applications.

• AEC qualified
• Very low standby current and CMOS compatible input
• Fast demagnetization of inductive loads and stable behaviour at undervoltage
• Wide operating voltage range
• Logic ground independent from load ground
• Short circuit protection, overload protection, overvoltage protection with external resistor
• Current limitation, thermal shutdown
• Reverse battery protection with external resistor
• Loss of ground and loss of Vbb protection
• Electrostatic discharge protection (ESD)

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	INFINEON
Part Number	BTS436L2GATMA1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN

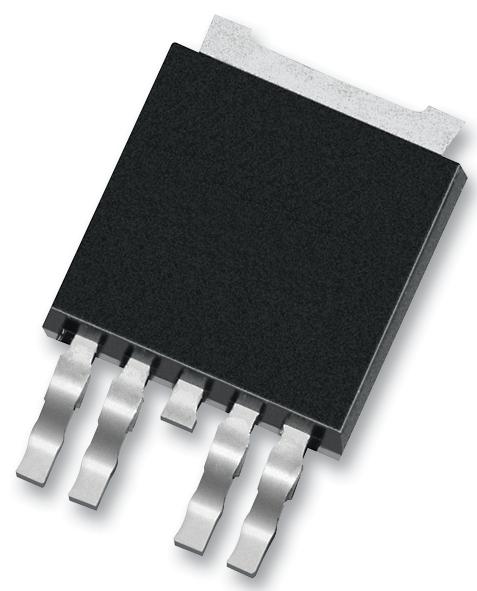

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
