Intel Core i5-12400F 2.5 GHz 6-Core LGA 1700 Processor
Intel i5-12400F Overview
- 1Description
- 2PCIe 4.0 & 5.0
- 3Intel Deep Learning Boost
- 4Gaussian & Neural Accelerator 3.0
Power up your productivity, gaming, and content-creation experiences by installing the Intel Core i5-12400F 2.5 GHz 6-Core LGA 1700 Processor into your desktop computer system. Built using the Alder Lake architecture with the Intel 7 process, this 12th generation 2.5 GHz desktop processor's six Performance cores support up to 12 threads and provide the speed for demanding applications and games. Additionally, this processor has a 4.4 GHz Boost 2.0 frequency with 18MB of cache for fast and reliable performance. The Core i5-12400F also includes support for up to PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz to help run and multitask a variety of demanding applications.
The Core i5-12400F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. An Intel Laminar RM1 thermal solution is included. The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.
In the Box

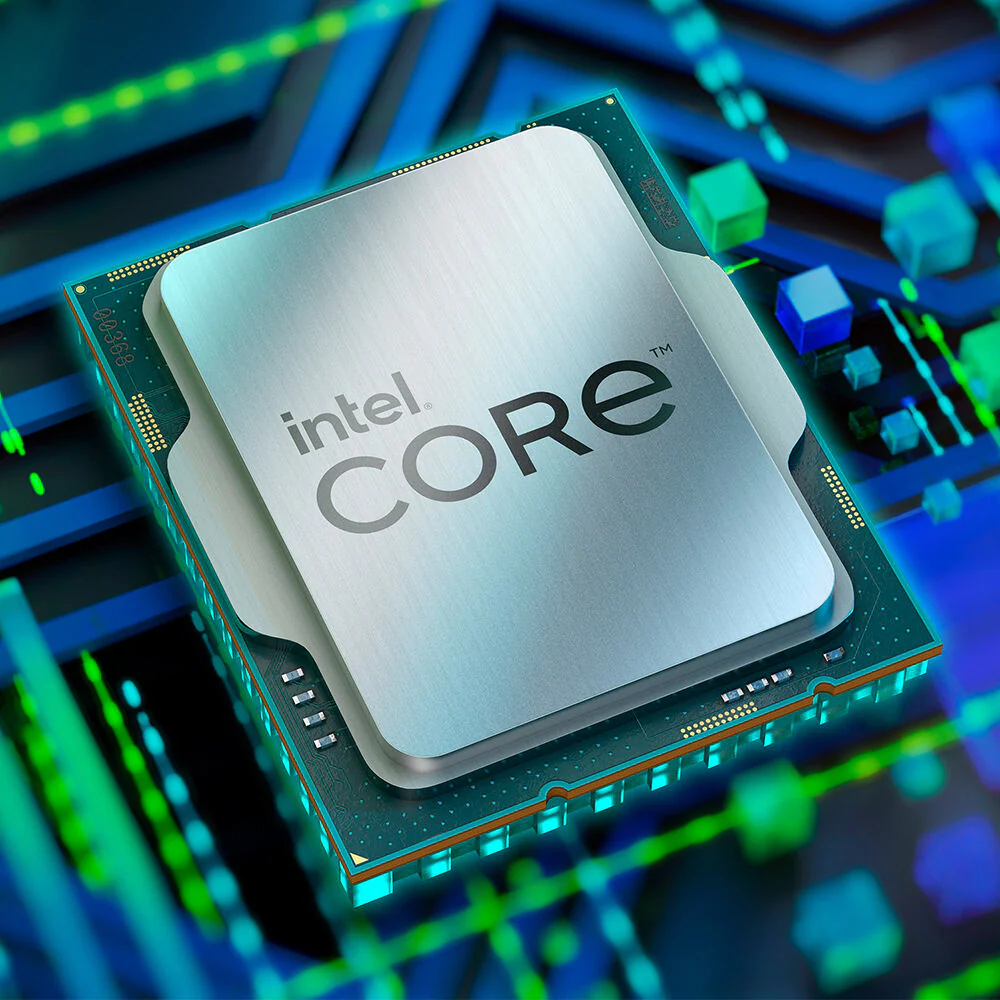

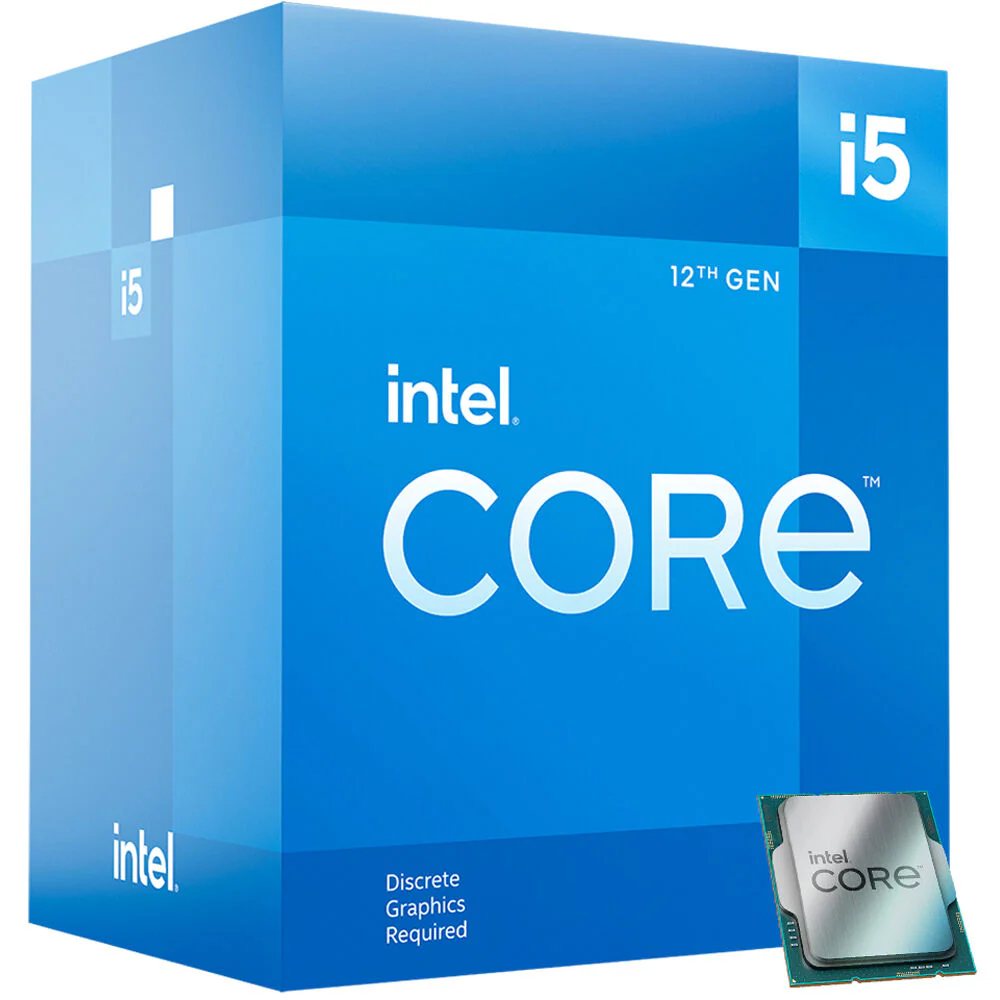

- Intel Core i5-12400F 2.5 GHz 6-Core LGA 1700 Processor

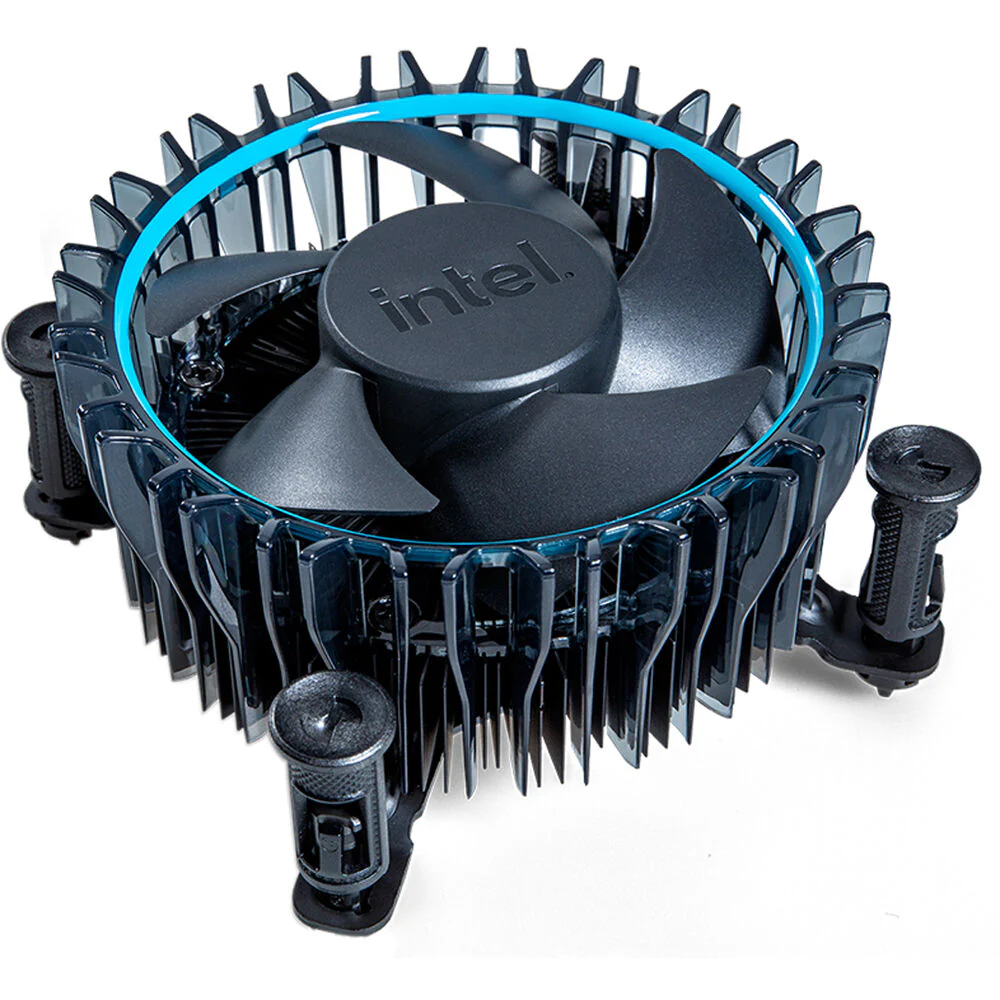

- Intel Laminar RM1 CPU Cooler
- Limited 3-Year Manufacturer Warranty
- Description
- PCIe 4.0 & 5.0
- Intel Deep Learning Boost
- Gaussian & Neural Accelerator 3.0
Intel i5-12400F Specs
| CPU Model | Intel Core i5-12400F (12th Gen) |
| CPU Socket | LGA 1700 |
| Manufacturing Process | 10 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 16 (Revision 5.0) 4 (Revision 4.0) |
| Unlocked | No |
| Number of Cores | 6 (6 x P-Cores) |
| Number of Threads | 12 |
| Base Clock Speed | P-Core: 2.5 GHz |
| Maximum Boost Speed | P-Core Turbo: 4.4 GHz |
| L3 Cache | 18 MB |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 Up to 3200 MHz DDR5 Up to 4800 MHz |
| ECC Memory | No |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 76.8 GB/s |
| Optane Memory Support | Yes |
| Thermal Design Power (TDP) | 65 W |
| Included Thermal Solution | Laminar RM1 (117 W) |
| Maximum Temperature | 212Ā°F / 100Ā°C |
| Thermal Monitoring Technologies | Yes |
| AES Support | Yes |
| Extension | AVX 2.0, AVX-512, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| DMI | DMI4 (16 GT/s) |
| vPro Support | Yes |
| Performance Technologies | Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, SpeedShift, Turbo Boost 2.0 |
| Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key |
| Integrated Graphics | None |
| Package Weight | 1.015 lb |
| Box Dimensions (LxWxH) | 4.9 x 4.3 x 3.1" |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
