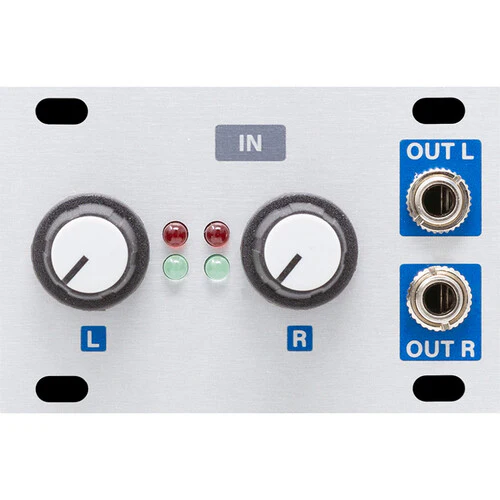

intellijel Stereo / Dual Mono Balanced Line Input 1U Eurorack Module
intellijel STLIN-1U Overview
- 1Description
- 2At a Glance
- 3Stereo Line In 1U System
- 4Eurorack Ready
Take control of the inputs for your modular rig with the intellijel Stereo Line In 1U, a Eurorack module that's part of the Stereo Line In 1U system, which is designed to bring external audio into your modular system for processing. The system works with balanced +4 dBu professional audio products and with -10 dBV unbalanced gear.
The Stereo Line In 1U connects to the Stereo In Jacks 1U module and adds up to +15 dB of gain. The two 3.5mm connectors output the signal at proper Eurorack levels. The Stereo Line In 1U can also be used with the 1/4" jacks that are built into intellijel's Palette case or 7U Performance cases (with a 2nd generation Audio Jacks board). The module includes a power ribbon cable.
- Stereo/dual mono balanced line-level inputs
- Connects to Stereo In Jacks 1U or intellijel cases
- Two attenuators for level control
- 15 dB of gain
- Outputs Eurorack level signal via two 3.5mm outputs
- Stereo line in 1U module
- Either a stereo input / dual mono jacks 1U module
- Eurorack format module
- Maximum depth: 1.5" (38mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 18mA, -12V: 12mA
In the Box
- intellijel Stereo / Dual Mono Balanced Line Input 1U Eurorack Module
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
- Description
- At a Glance
- Stereo Line In 1U System
- Eurorack Ready
intellijel STLIN-1U Specs
| Sound Generation |
Analog
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
2x 1/8" / 3.5 mm TS Output
|
| Eurorack Current Consumption |
18 mA on +12 V Rail
12 mA on -12 V Rail |
| Horizontal Pitch |
12 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
2x 1/8" / 3.5 mm TS Output
|
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
18 mA on +12 V Rail
12 mA on -12 V Rail |
| Rackmount Size |
1 RU
|
| Horizontal Pitch |
12 HP
|
| Included Accessories |
No
|
| Package Weight |
0.225 lb
|
| Box Dimensions (LxWxH) |
5.4 x 3.8 x 2.3"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
