ITT Cannon KPTC6F14-5PD KPTC6F14-5PD Circular Connector Kptc Straight Plug 5 Contacts Crimp Pin Bayonet 14-5

The KPTC6F14-5PD from ITT Cannon is KPTC series, MIL-DTL-26482 series I equivalent straight plug with 5 contacts. The KPTC series miniature circular connectors conforms to meet the performance specification to MIL-DTL-26482 with a positive three point quick disconnect bayonet coupling, five keyway polarization and high insert arrangement contact density. These connectors are designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The high versatility general purpose KPTC series connectors are intermateable, intermountable and interchangeable with all connectors manufactured according to MIL-DTL-26482 and VG95328. Design modifications can be achieved easily at low cost.

• Bayonet coupling assures fast and reliable mating/unmating
• Environmental sealed
• Operating temperature range from -55°C to 125°C
• 500 mating cycles
• 200m/s² at 10Hz to 2000Hz vibration
• Insulation resistance is 5000Mohm
• Resilient polychloroprene insulator and grommet
• Salt spray exposure of 500hour
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Copper alloy crimp pin contacts with gold plating

Applications

Commercial, Industrial

Other details

Brand	ITT CANNON
Part Number	KPTC6F14-5PD
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN

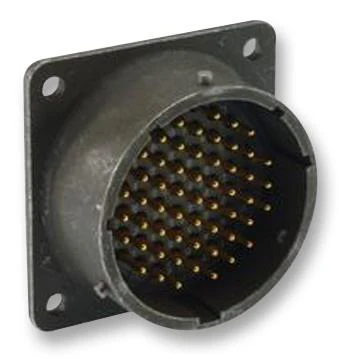

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
