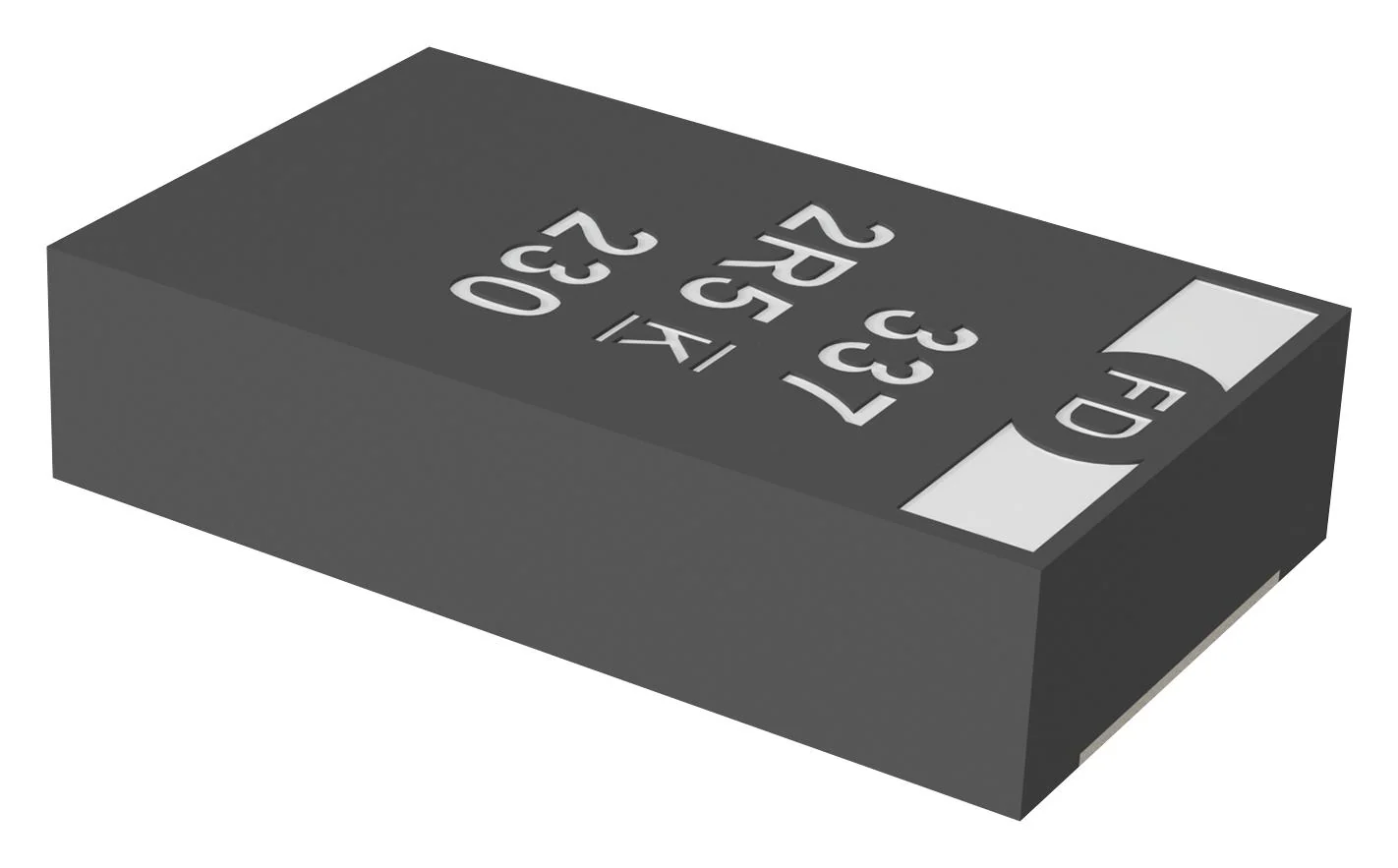

Kemet T523H477M016APE070 Tantalum Polymer Capacitor 470 µF 16 V T52X KO-CAP® Series ± 20% H 0.07 ohm

The T520 series Organic Capacitor (KO-CAP) is a solid electrolytic capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. Suitable for general purpose DC applications up to 12.8V. This series is ideal for DC-to-DC converters, bulk decoupling and hold-up.

• Volumetrically efficient
• High frequency capacitance retention
• 100% Accelerated steady state aging
• 100% Surge current tested
• EIA standard case sizes

Product details

Capacitance	470µF
Voltage Rating	16V
Product Range	T52X KO-CAP® Series
Capacitance Tolerance	± 20%
Manufacturer Size Code	H
ESR	0.07ohm
Operating Temperature Min	-55°C
Operating Temperature Max	85°C
Automotive Qualification Standard	-
RoHS Phthalates Compliant	To Be Advised

Other details

Brand	KEMET
Part Number	T523H477M016APE070
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
