Lilliput FA1016-NP/C 10.1" Class WUXGA IPS LCD Monitor
Lilliput FA1016-NP/C Overview
Add a video screen to your system with the Lilliput FA1016-NP/C 10.1" Class WUXGA IPS LCD Monitor . It features a native resolution of WUXGA 1920 x 1200, but it accepts signals up to 4K at 30 fps. With a brightness rating of 320 cd/m², a contrast ratio of 1000:1, and viewing angles up to 175°, colors should appear clear in most installation settings. The monitor is equipped with HDMI and VGA video inputs, an 1/8" headphone output, and a built-in speaker.
- Supports 4K 30 Hz video inputs
- Glass+Glass technology helps smooth the monitor's appearance while retaining a wide 175° viewing angle
- Full lamination design eliminates air bubbles between the glass layers
- Dustproof front panel design

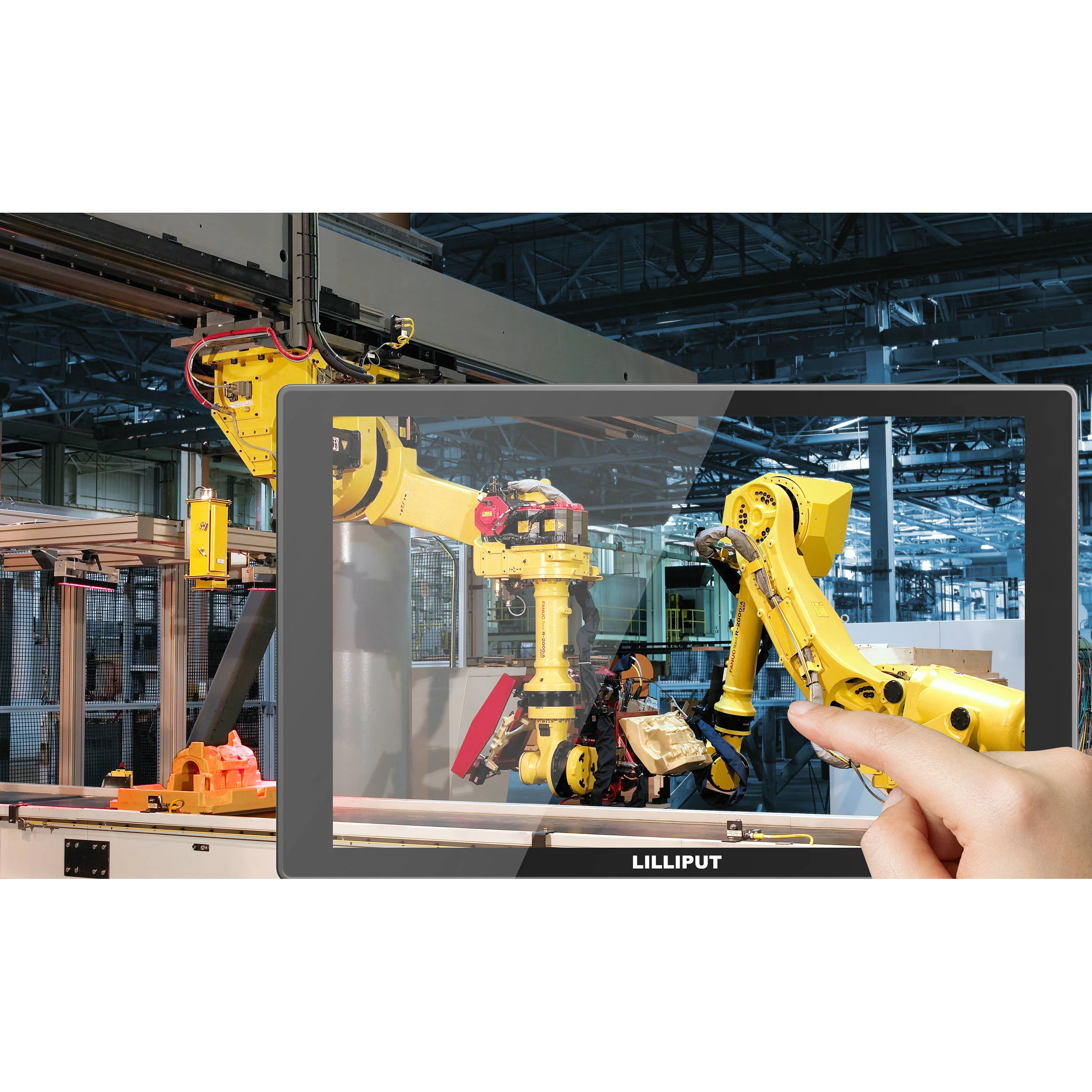

- Suitable for use in commercial public display, industrial applications, and more
- Supports 7 to 24V power supplies for use in a variety of applications
- Designed for low power consumption
- Works safely with low power currents
- Engineered for ease of use

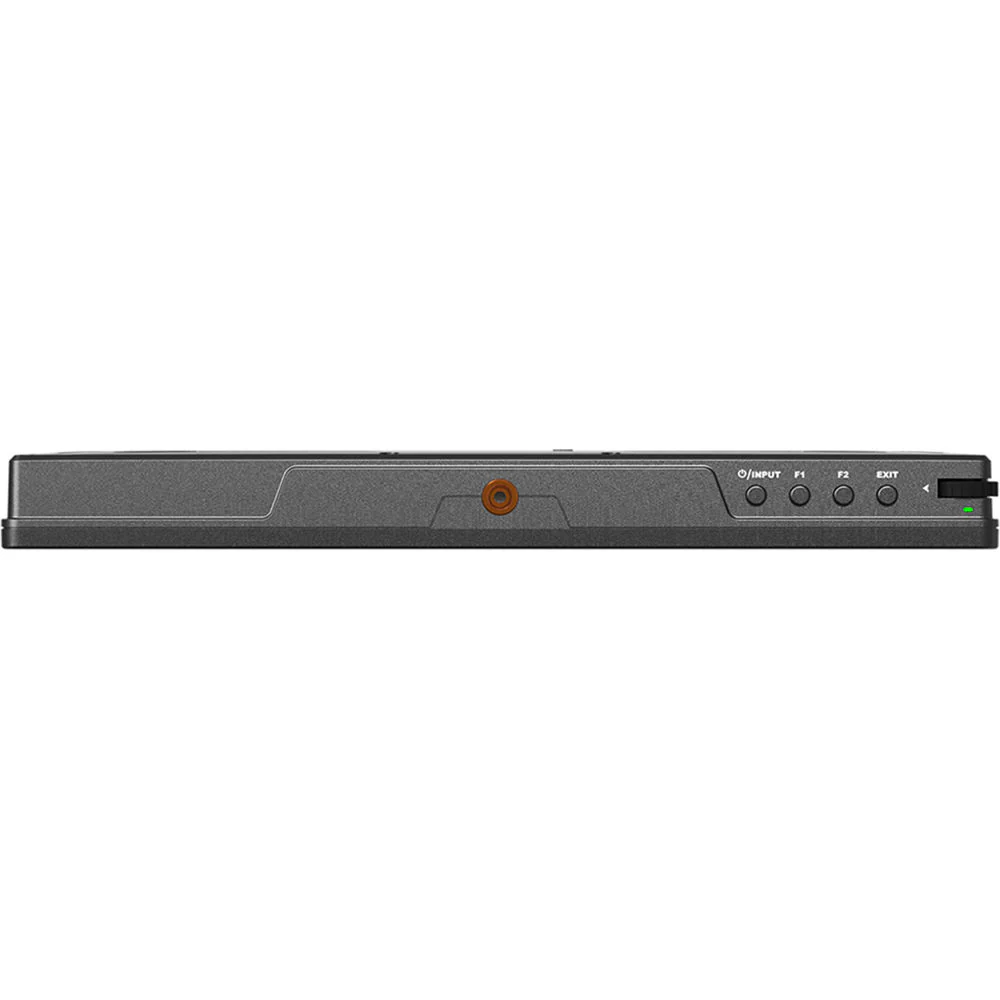

- Two user-definable function buttons for quick shortcuts, such as scan, aspect, check field, zoom, freeze, etc.
- Dial selection and adjustment of sharpness, saturation, tint, and volume
- Input button doubles as a power button
- Optional folding bracket available separately
In the Box
- Lilliput FA1016-NP/C 10.1" Class WUXGA IPS LCD Monitor
- Limited 1-Year Warranty
Lilliput FA1016-NP/C Specs
Display
| Screen Size (Diagonal) | 10.1" |
| Resolution | 1920 x 1200 |
| Supported Display Resolutions | Maximum: 3840 x 2160 / 30 Hz |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Brightness | 320 cd/m² |
| Viewing Angle (H x V) | 175 x 175° |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 1000:1 |
Connectivity
| Primary Connectivity Location | Display |

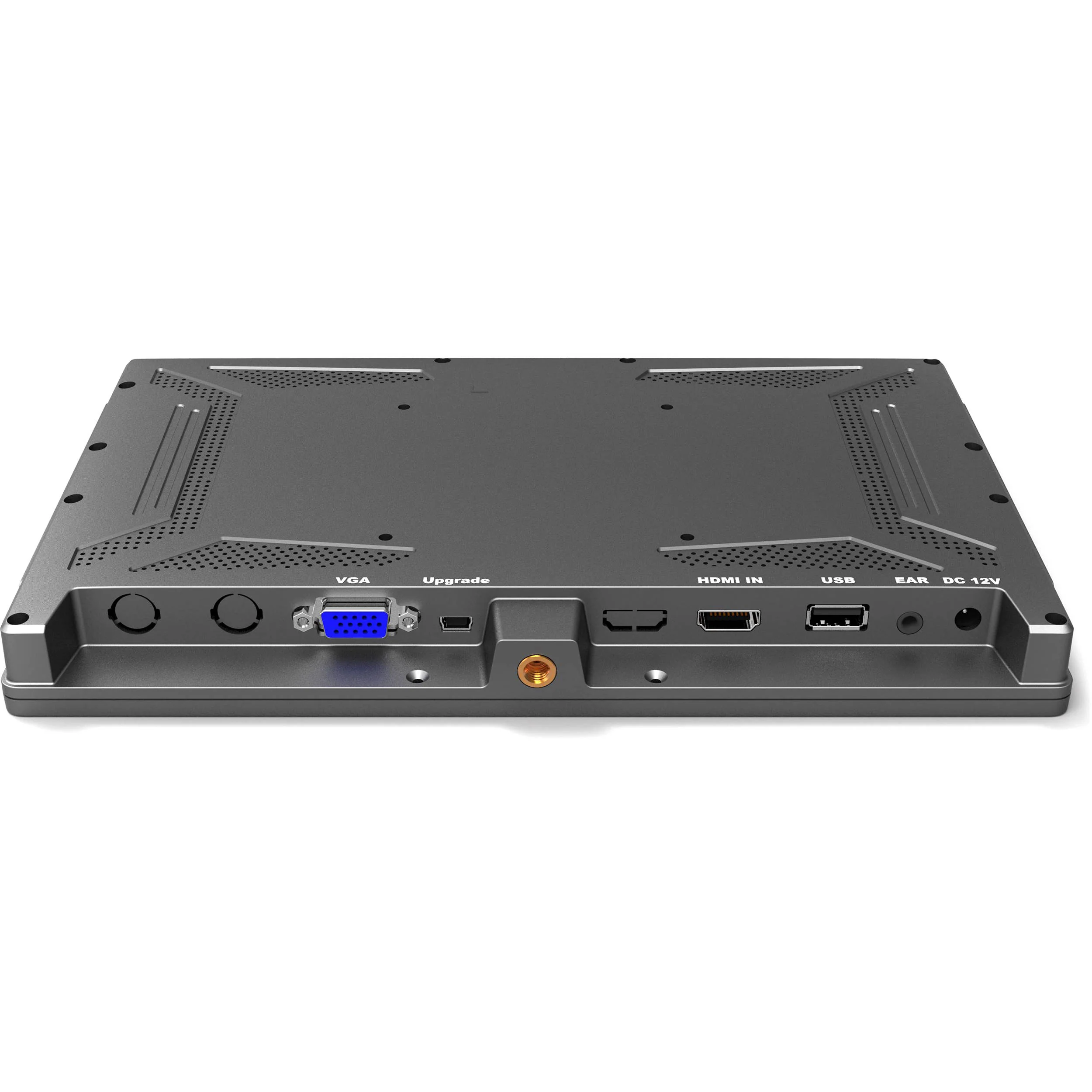

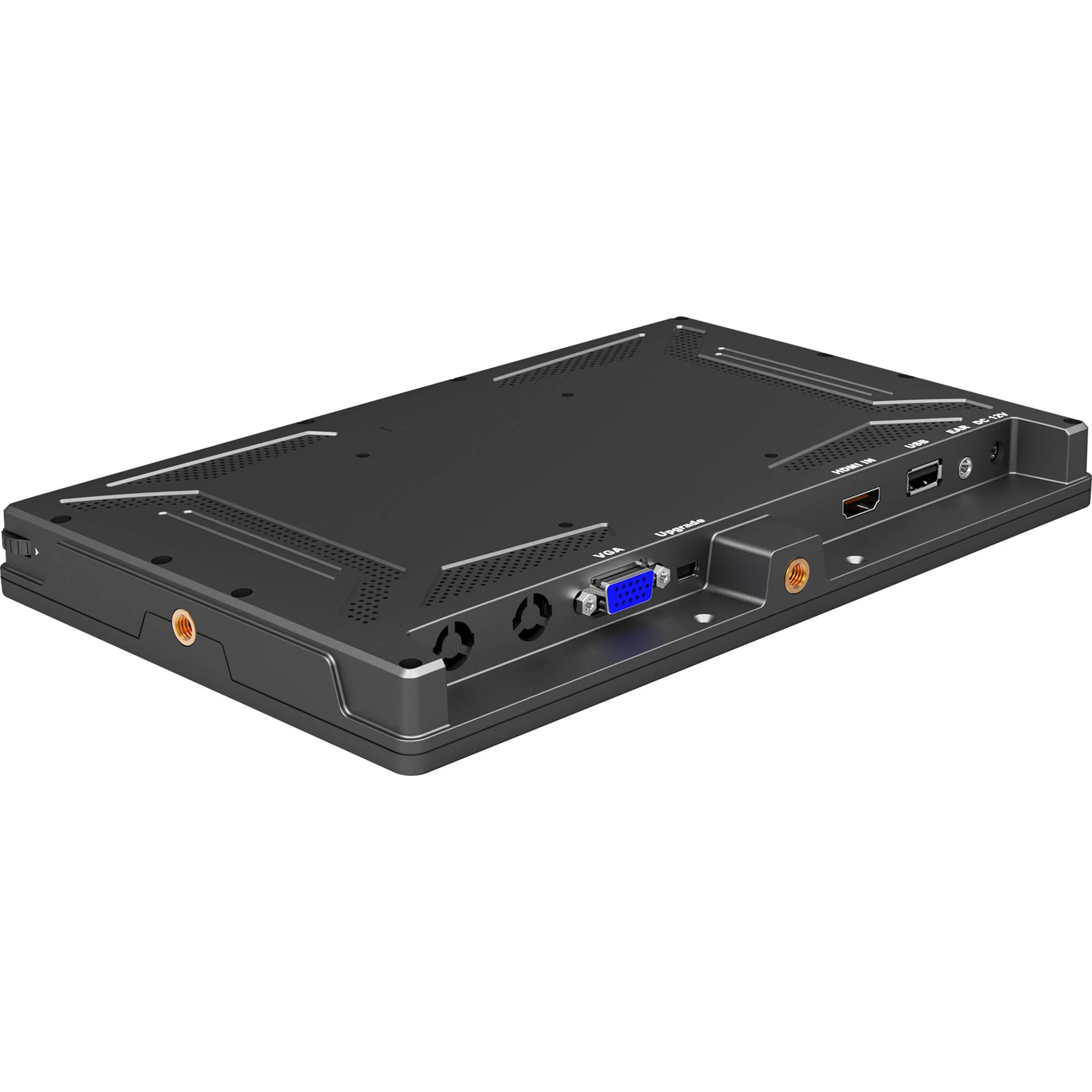

| Input Ports | 1 x HDMI � Audio, Video (Bottom) 1 x 15-Pin VGA � Video (Bottom) |
| Output Ports | 1 x 1/8" / 3.5 mm � Headphone (Bottom) |
| Ethernet Ports | None |
Audio
| Built-In Speakers | Yes, 1 |
| Speaker Configuration | 1-Channel |
Electrical
| Power Consumption | Operational: 10.0 W |
| DC Input Power | 7 to 24 VDC 12 VDC at 750 mA |
Environmental
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
Physical

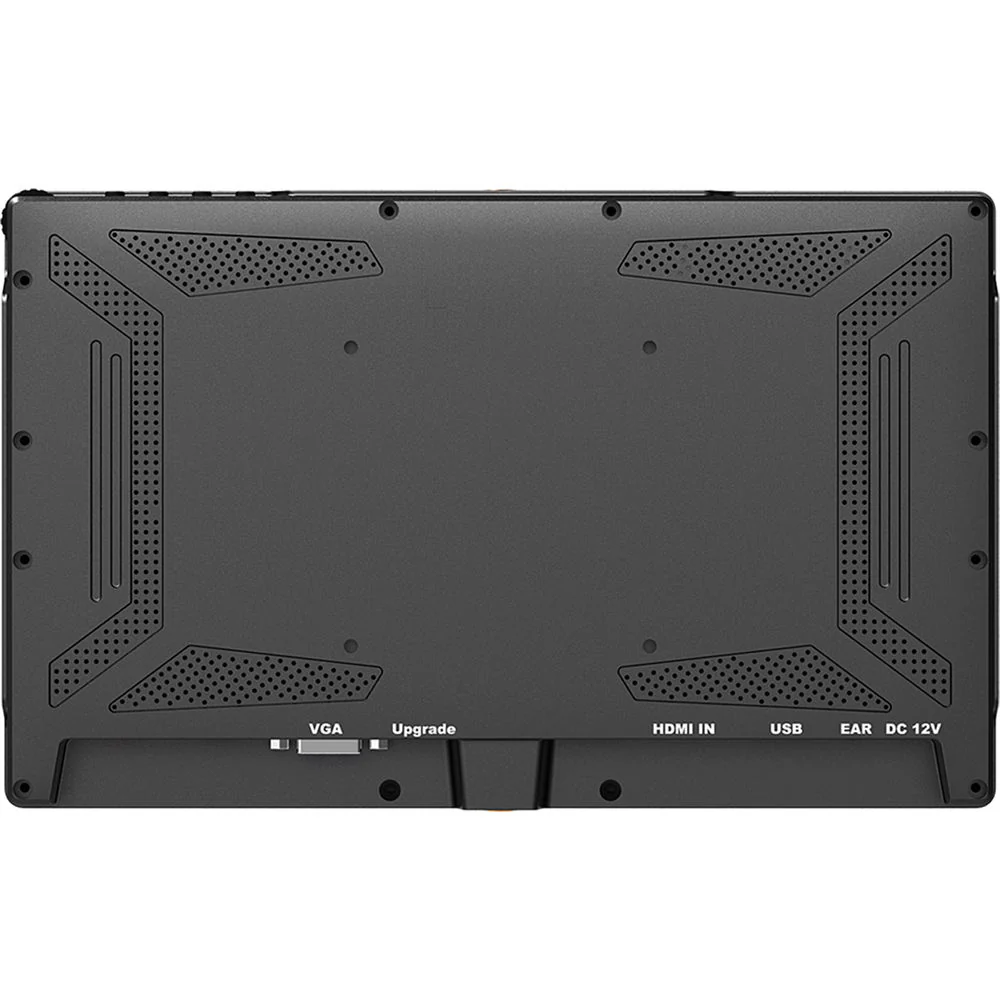

| Wall Mounting | 75 x 75mm |
| Dimensions | 9.9 x 6.2 x 1.0" / 252.0 x 157.0 x 25.0 mm |
| Weight | 1.18 lb / 535 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
