Lilliput Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
Lilliput Q23-8K Overview
Lilliput Q23 23.8 inch broadcast and video production monitor, supports remote control.
Lilliput Q Series 8K 12G-SDI Production Monitors Official Guide

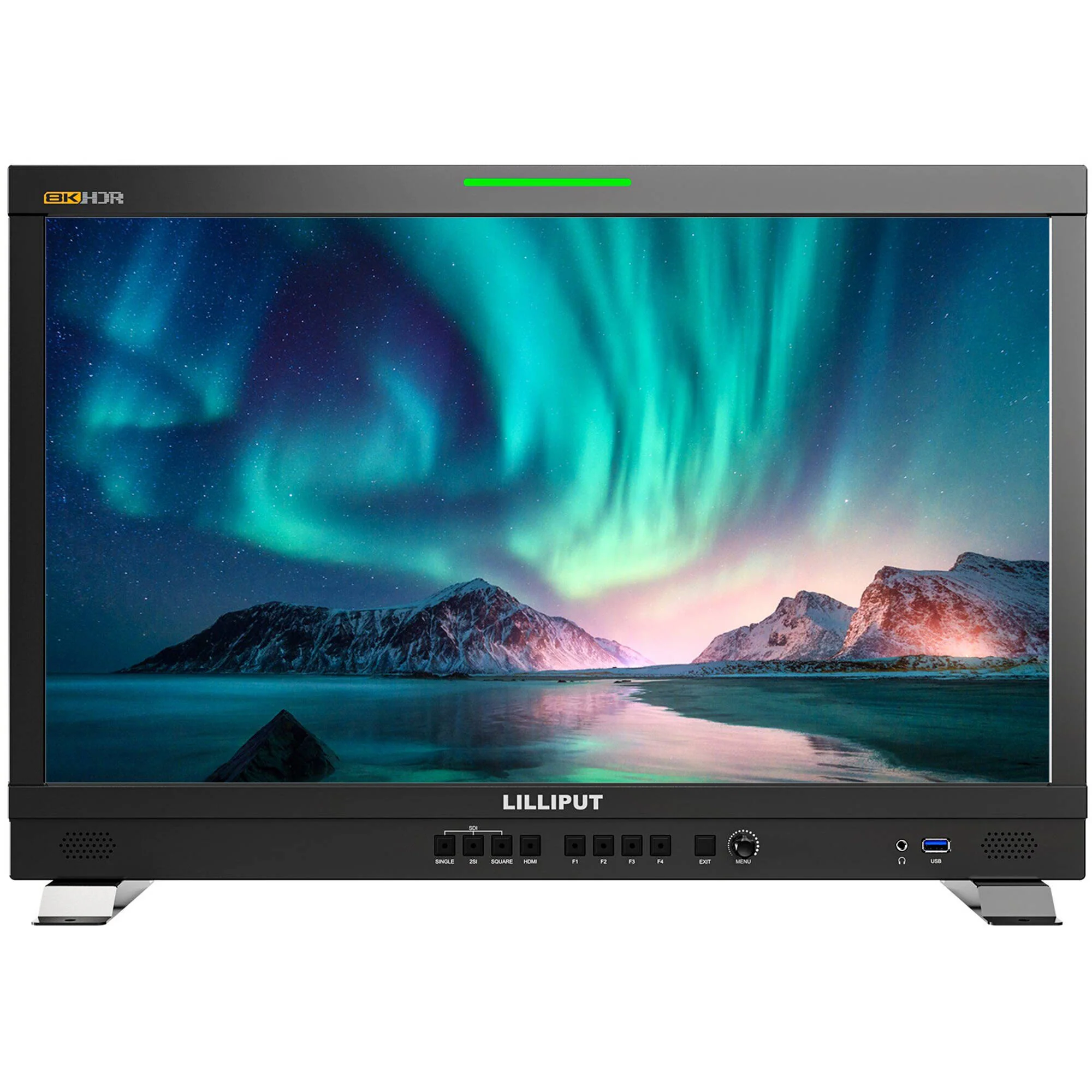

The Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio MonitorĀ from Lilliput is a 23.3" broadcast studio and field monitor with a V-mount battery plate and a native resolution of 3840 x 2160. It can support up to UHD 8K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a 1000:1 contrast ratio, a viewing angle of 178Ā°, and 300 cd/mĀ² brightness. The Q23-8K features an HDMI 2.0 input and an HDMI 2.0 output, four 12G-SDI inputs and four12G-SDI outputs, and an SFP+ input that can be used with an optional fiber module.
The monitor supports HDR color spaces and the importing of custom 3D LUTs for quick access to a variety of color reference options. A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment, or you may also power the unit with a V-mount battery using the included battery plate.
Features

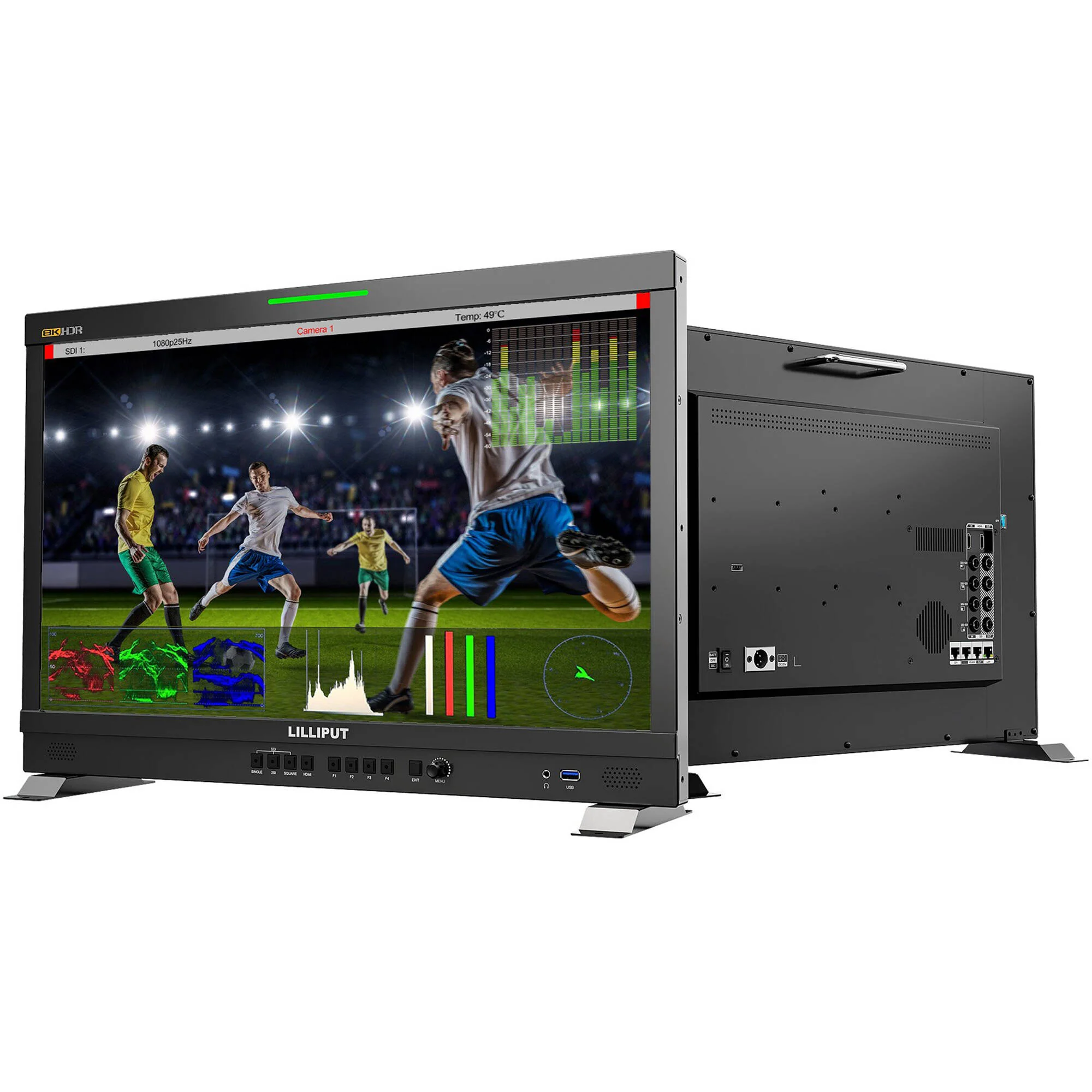

Monitoring Tools
- Peaking
- Check field
- Image freeze
- Pixel-to-pixel
- False color
- ExposureĀ
- HistogramĀ
- Timecode
- Screen markers
- Color space
- HDR
- Color temperature adjustment
HDR and 3D LUTs
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.
Supported Log Formats
SLog2. SLog3, CLog, NLog, ARRILiog, JLog, and User.
Supported HDR
ST2084 300/1000/10000/HLG.
Audio
The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.
Remote Control

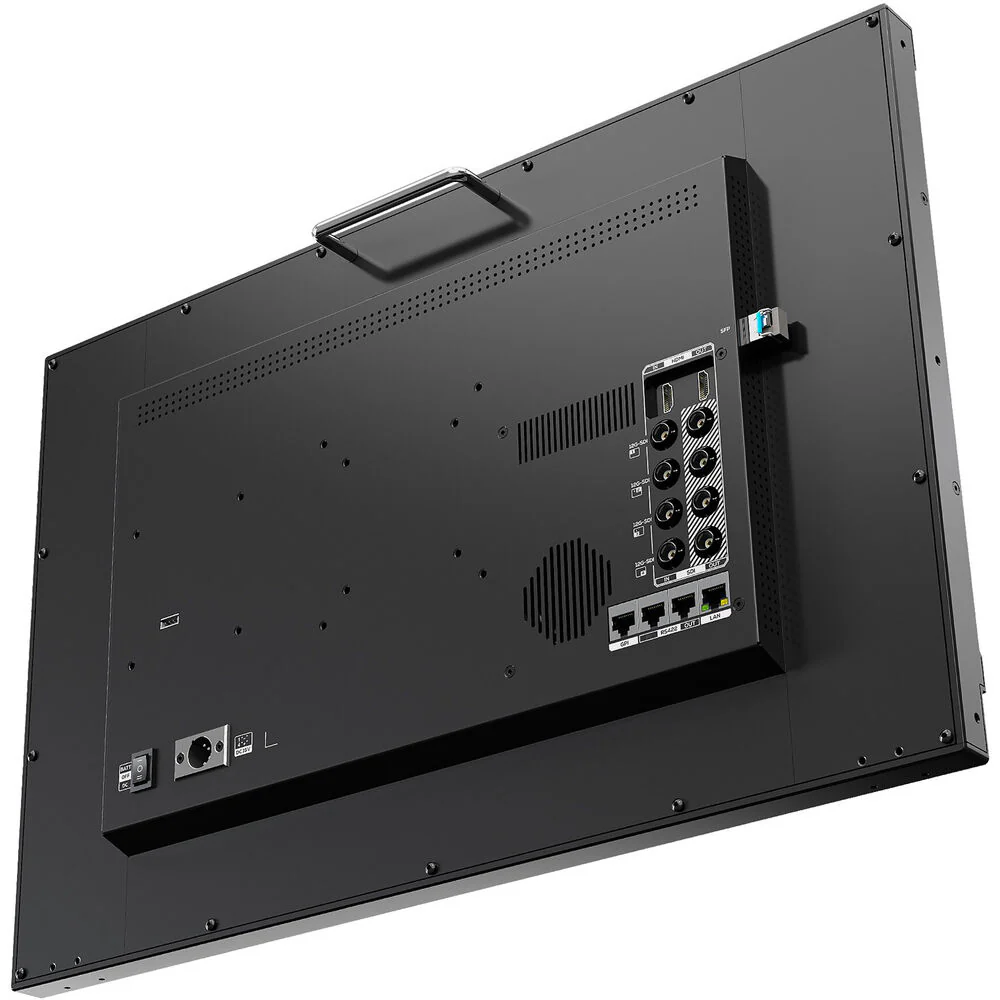

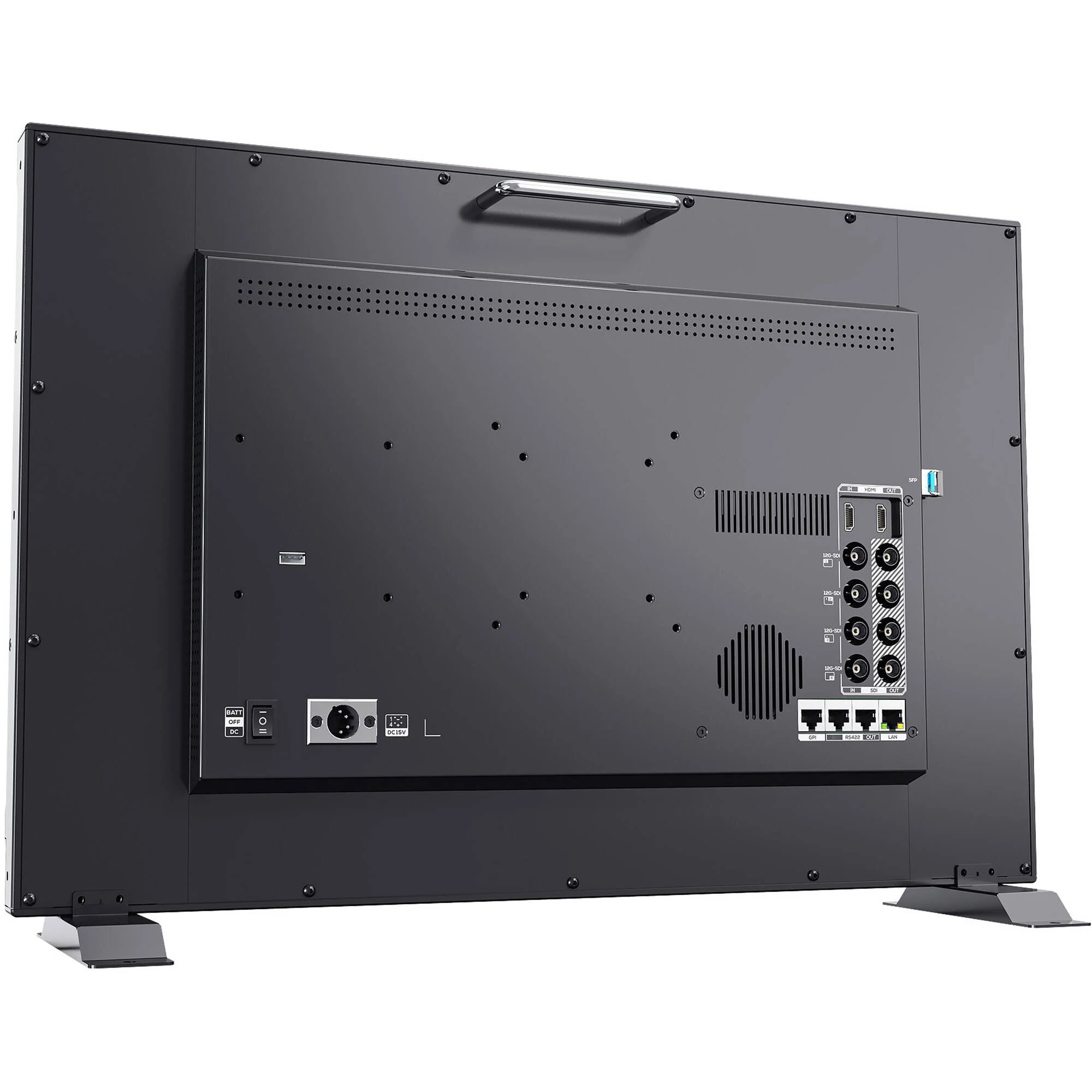

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.
Calibration
The monitor supports color calibration using an optional PRO/LTE version of ColourSpace CMS to ensure your monitor is displaying your image accurately.
Fiber
An integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.
In the Box
- Lilliput Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
- V-Mount Battery Plate
- Power Adapter
- VESA Mount Plate
- Base Bracket
- Limited 1-Year Manufacturer Warranty
Additional Resources
Lilliput Q23-8KSpecs
Key Specs
| Display Size |
23.8" / 60.5Ā cm
|
| Native Resolution |
3840 x 2160
|
| Touchscreen |
No
|
| HDR Support |
Yes
|
| Video I/O |
4x BNC (12G-SDI) Input
4x BNC (12G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output 1x SFP+ (12G-SDI) Input |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 Fiber UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 SDI 8K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| Battery Type |
1x V-Mount
|
| Power Consumption |
60 W
|
Display
| Panel Type |
IPS-Type LCD
|
| Display Size |
23.8" / 60.5Ā cm
|
| Native Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178Ā°
Vertical: 178Ā° |
| Touchscreen |
No
|
| Maximum Brightness |
300 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Support |
Yes
|
| Pixels Per Inch (ppi) |
185 ppi
|
| Image Controls |
Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Image Flip, Picture-in-Picture, Underscan
|
Inputs/Outputs
| Video I/O |
4x BNC (12G-SDI) Input
4x BNC (12G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output 1x SFP+ (12G-SDI) Input |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Input
|
| Built-In Speaker |
Mono
|
| Power I/O |
1x XLR 4-Pin (15 VDC) Input
|
| Other I/O |
1x DE-15/DB-15 (Tally)
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 Fiber UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 SDI 8K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
Power
| Input Power |
12 to 24 VDC
|
| Battery Type |
1x V-Mount
|
| Power Consumption |
60 W
|
General
| Operating Conditions |
32 to 122Ā°F / 0 to 50Ā°CĀ
|
| Storage Conditions |
-4 to 140Ā°F / -20 to 60Ā°CĀ
|
| Dimensions |
22.3 x 14.8 x 1.8" / 567 x 376.4 x 45.7Ā mm
|
| Weight |
16.3Ā lb / 7.4Ā kg
|
Packaging Info
| Package Weight |
25.91 lb
|
| Box Dimensions (LxWxH) |
25.8 x 22.8 x 6.4"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
