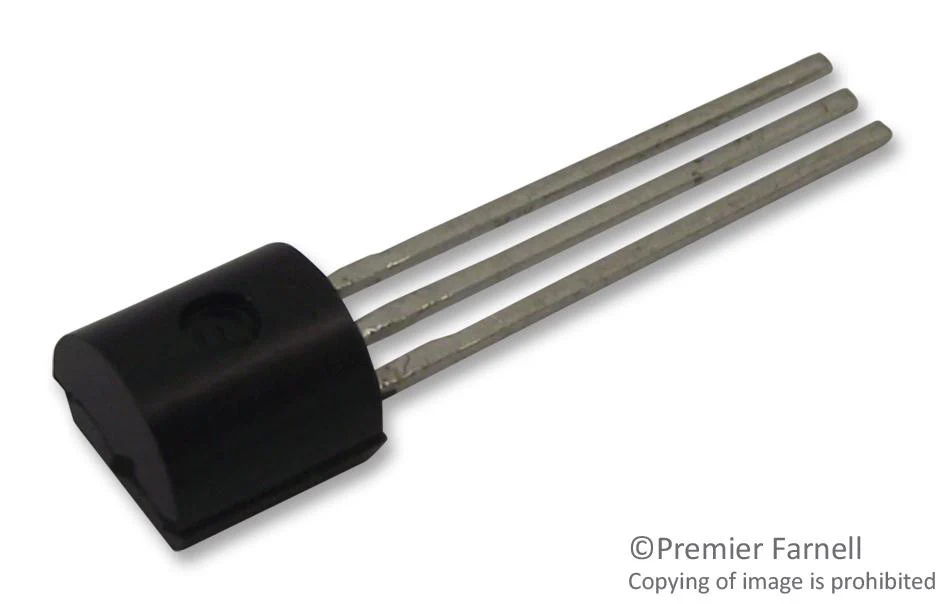

MICROCHIP MCP100-315DI/TO Supervisory Circuit, Active-Low Reset, 1V-5.5Vin, TO-92-3
The MCP100-315DI/TO is a Microcontroller Supervisory Circuit with CMOS push-pull and active-low RESET output. The voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. It will assert the RESET/RESET signal whenever the voltage on the VDD pin is below the trip-point voltage.
- Holds microcontroller in reset until supply voltage reaches stable operating level
- Resets microcontroller during power loss
- Precision monitoring of 3, 3.3 and 5V systems
- 7 Voltage trip points available
- Accuracy of Ā±125mV for 5V systems and Ā±75mV for 3V systems over-temperature
- 45ĀµA Typical operating current
Applications
Computers & Computer Peripherals
Product details
| Operating Temperature Min | -40Ā°C |
| Digital IC Case | TO-92 |
| Threshold Voltage | 3.075V |
| Operating Temperature Max | 85Ā°C |
| Reset Type | Active-Low |
| No. of Pins | 3Pins |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| No. of Supervisors / Monitors | 1Monitors |
| Supply Voltage Min | 1V |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| Delay Time | 350ms |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | MCP100-315DI/TO |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.79
MICROCHIP MCP100-315DI/TO Supervisory Circuit, Active-Low Reset, 1V-5.5Vin, TO-92-3ā
$0.79
