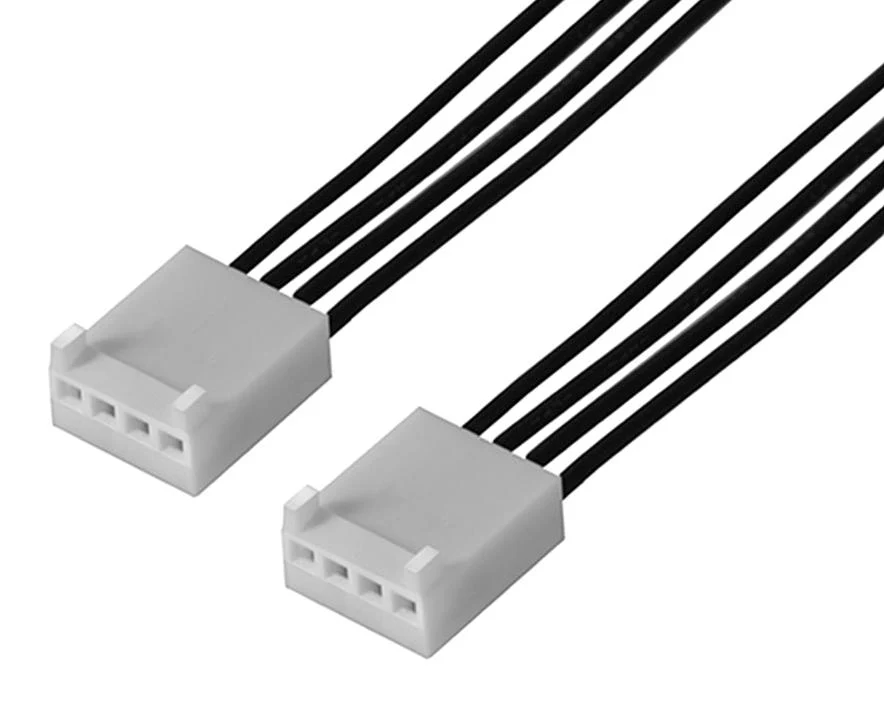

Molex 217796-1042 217796-1042 Cable Assembly KK 254 Receptacle to 4 Ways 2.54 mm 1 Row 300 11.8 "

Off-the-shelf (OTS) KK2.54 tin discrete cable assemblies facilitate both prototyping and global preproduction. Dual-catilever terminal helps ensure reliable electrical contact and performance with low insertion force. Polarizing header backwalls, polarizing ribs on receptacles and polarizing pegs prevent accidental mismating during assembly. Friction-lock headers and receptacles help ensure secure mating and prevent accidental disengagement. KK RPC headers offered in high temperature nylon and reflow matte-tin plating allow for 260°C wave and reflow solder processing, Applications include automotive, consumer, data/telecommunications and MedTech.

• 217796 series 2.54mm pitch, single row KK 254-to-KK 254 off-the-shelf (OTS) cable assembly
• Enables highly automated termination processing and accurate PCB placement
• UL file number: E29179, CSA file number: LR19980
• Maximum voltage of 500VAC/(600VDC), maximum current up to 4A
• Maximum durability of 25 cycles
• Nylon housing, brass contact, tin plating
• Operating temperature range from -40 to +105°C
• Mates with KK254 PCB headers 42375, 42377, 42376, 4030, 6373, 6410, 1718 56, 171857
• UL 11028 wire/cable type
• Crimp or compression termination style

Other details

Brand	MOLEX
Part Number	217796-1042
Quantity	Each
Drawing EN
