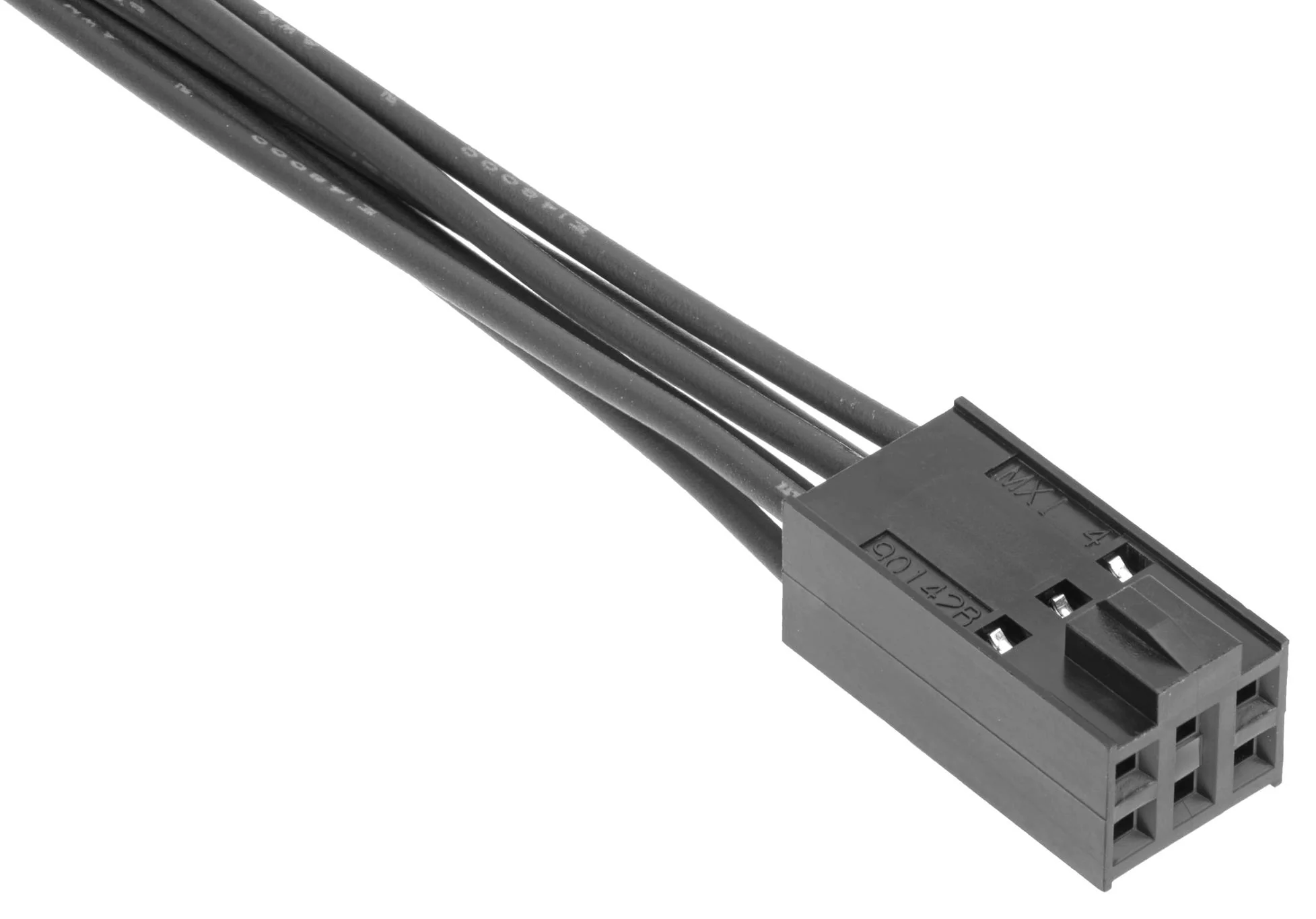

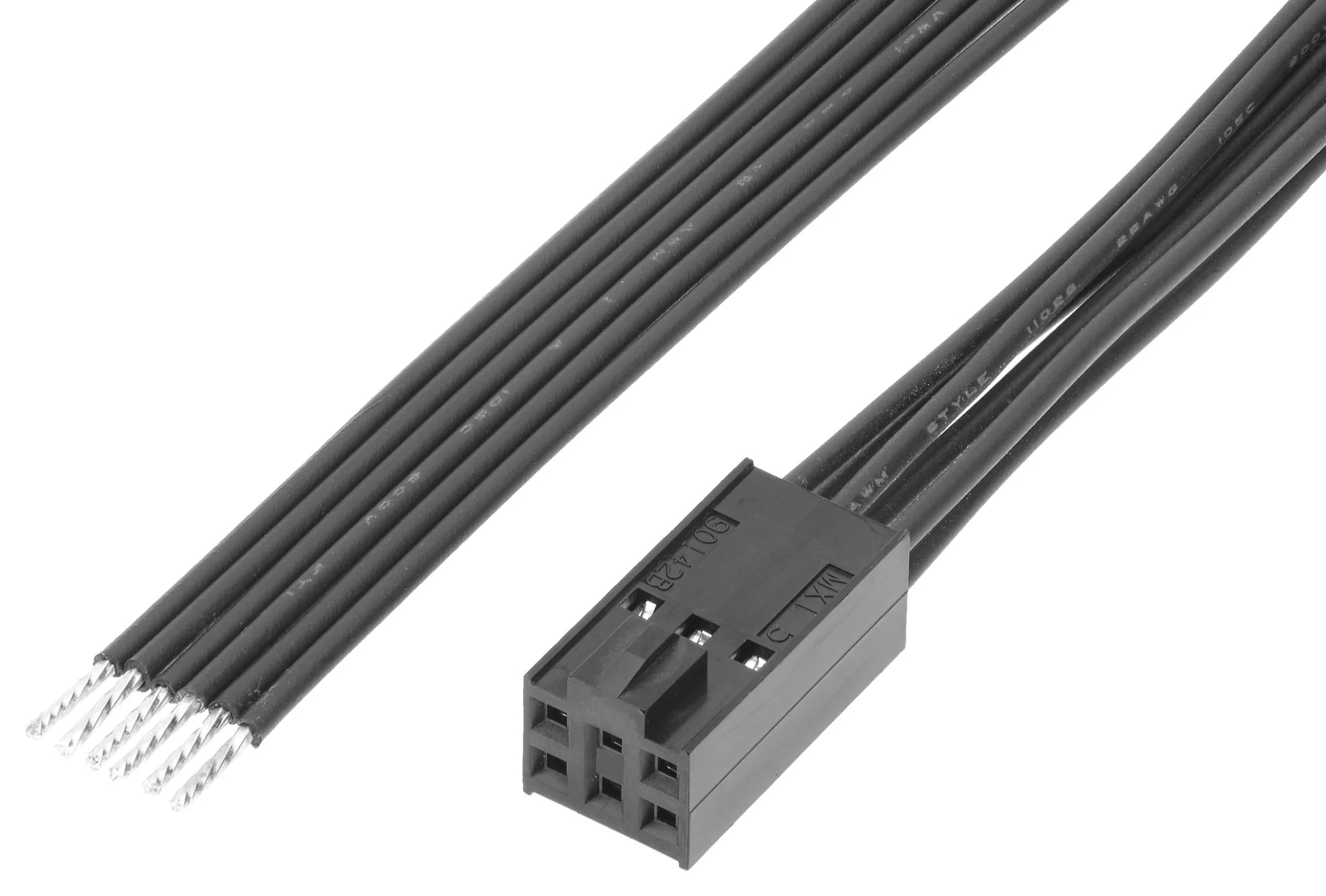

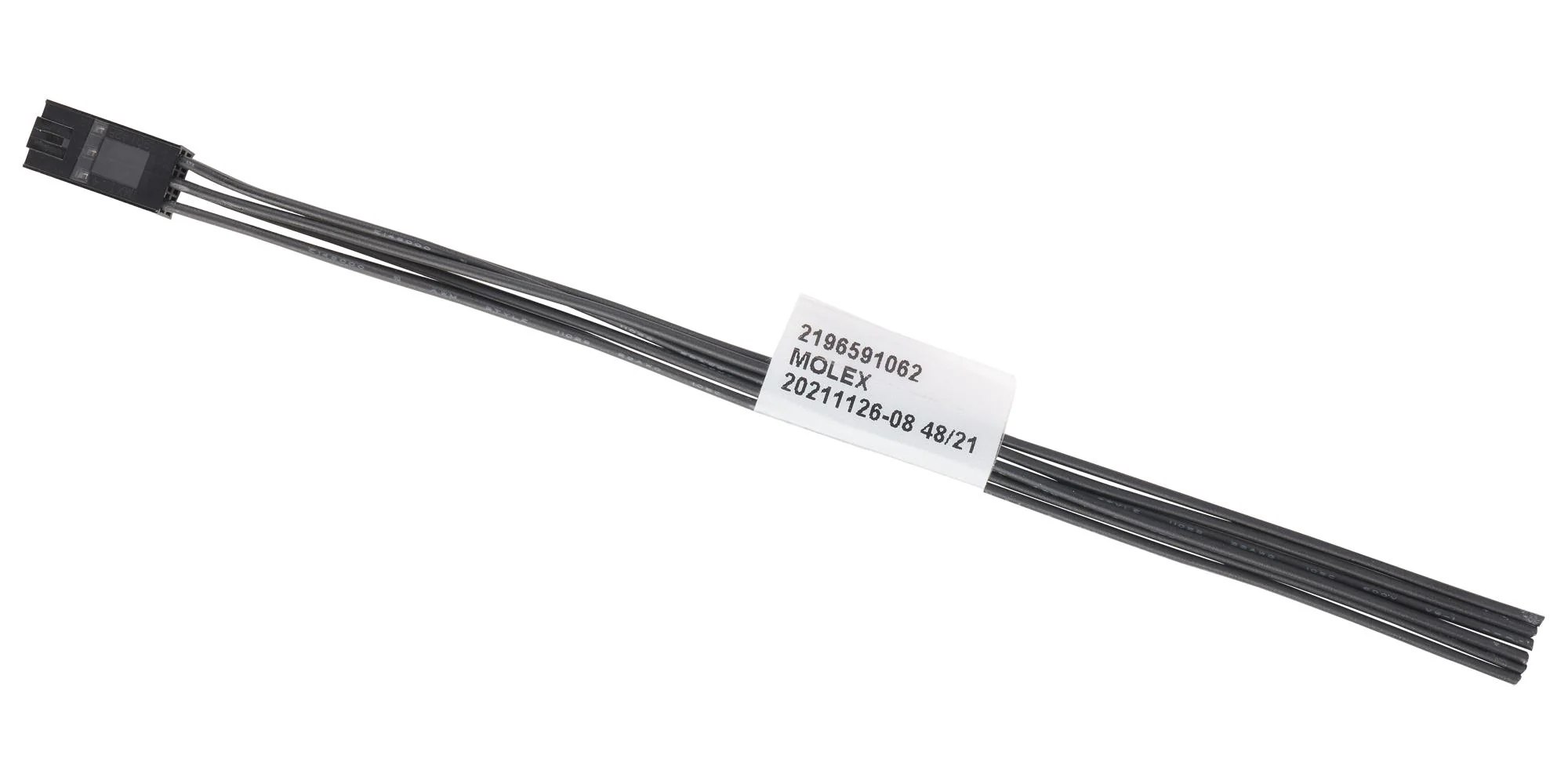

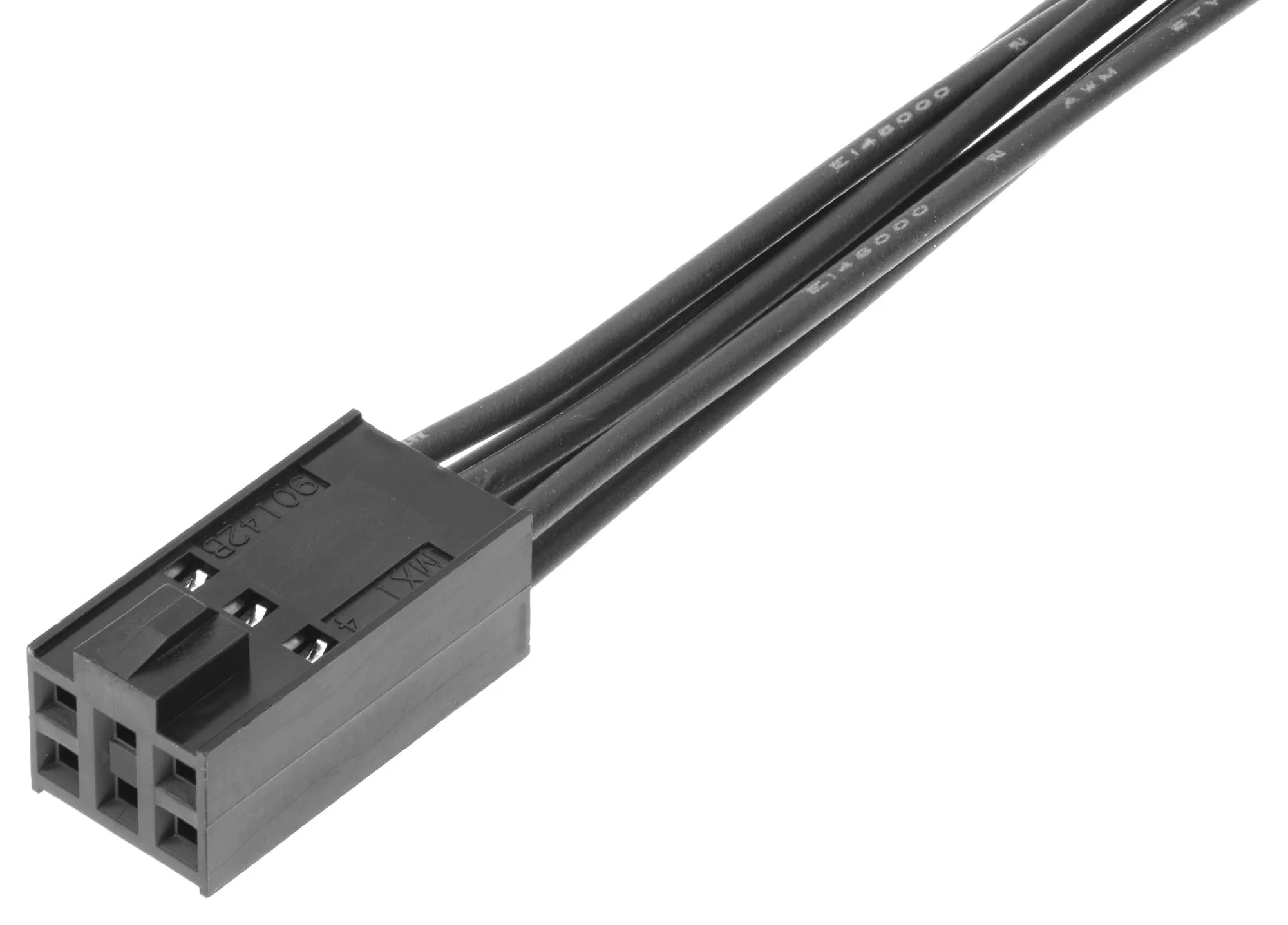

Molex 219659-1062 Cable Assembly C-Grid III Receptacle to Free End 6 Ways 2.54 mm 2 Row 150 5.9 "

Off-the-shelf (OTS) C-Grid III cable assemblies offer complete design flexibility and unique design features to facilitate both prototyping and global preproduction. High pin retention force provides excellent retention for secure locking and proper mating. Easy breakaway feature produces smaller sizes for design flexibility and quick turn around. Typical application includes automotive, consumer, industrial, medtech, telecom/datacom.

• 219659 series C-Grid III female-to-pigtail off-the-shelf (OTS) cable assembly
• Polarization and friction-lock feature helps to prevent mismating during assembly
• High mechanical stability after soldering helps to ensure reliable connector performance
• Single ended, provides design flexibility, tin material mating plating
• UL file number E29179 (specification given is based on the connector used)
• Suitable for use with 90119 series crimp terminals
• Maximum current rating of 3A, minimum durability of 30 cycle
• Polyphenylene oxide 94 VI housing, phosphorous bronze contact, black resin
• 2.54mm mating interface pitch, crimp or compression termination interface style, 22AWG wire size
• Operating temperature range from -55 to +125°C

Other details

Brand	MOLEX
Part Number	219659-1062
Quantity	Each
Technical Data Sheet EN
Drawing EN
