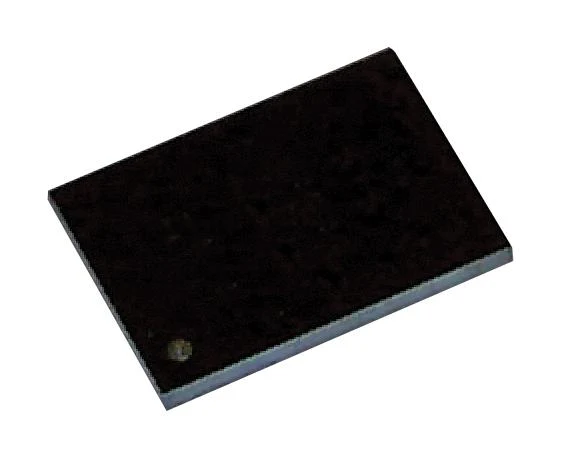

Monolithic Power Systems (MPS) MP4571GQB-P MP4571GQB-P DC-DC Switching Synchronous Buck Regulator Adjustable 4.5 V to 60 in 1 V-54 V/1A out QFN-12

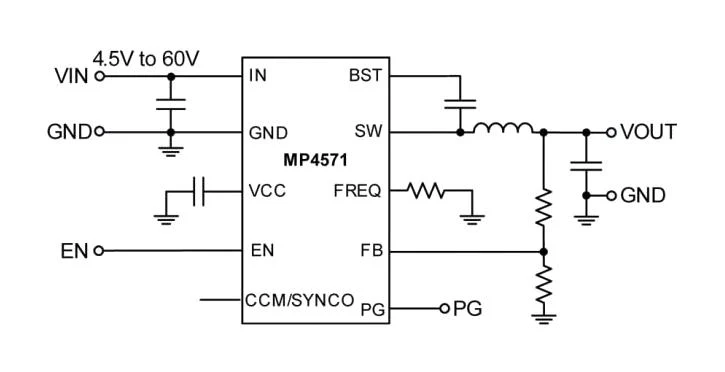

MPQ4571 is a fully integrated, fixed frequency, synchronous step-down converter. It can achieve up to 1A of continuous output current with peak current control for excellent transient response. The wide 4.5V to 60V input voltage range accommodates a variety of step down applications in an automotive input environment. The device's 2µA shutdown mode quiescent current makes it ideal in battery-powered applications. The MPQ4571 integrates internal high-side and low-side power MOSFETs for high efficiency without an external schottky diode and is available in a 12-pin QFN package. The MP4571 employs advanced asynchronous modulation (AAM) which achieves high efficiency during light load by scaling down the frequency to reduce the switching and gate driver losses. Typical applications include automotive infotainment, automotive lamps and LEDs, automotive motor control and industrial power systems.
- High efficiency synchronous mode control
- 250mohm/45mohm internal power MOSFETs
- Configurable frequency up to 2.2MHz
- 180° out-of-phase SYNCO clock
- 40µA quiescent current
- Selectable AAM or forced CCM operation at light load
- Internal 0.45ms soft start, remote EN control, power good indicator
- Low dropout mode, VIN undervoltage lockout (UVLO)
- Thermal shutdown, overcurrent protection, short-circuit protection with hiccup mode
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | MP4571GQB-P |
| Quantity | |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
