Multicomp PRO MP005944 MP005944 RF / Coaxial Cable Assembly 5G IP47 SMA Bulkhead Jack to 90° MHF 4L Plug 1.37mm 50 ohm 7.9 "

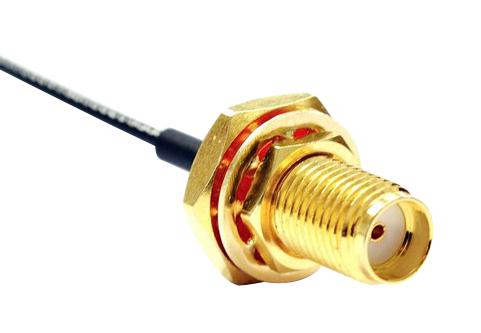

The MP005944 is a 200mm RF Coaxial Cable Assembly, IP67 waterproof SMA bulkhead jack to a IPEX (MHF4) plug. It features a 1.37mm low-loss cable. Ideal for outdoor RF communications applications. Utilizing 1.37mm low-loss cable. Ideal for outdoor RF communications applications
- 1.37mm low-loss micro coaxial cable
- Impedance: 50 R
- Frequency range: DC to 6 GHz
- Working voltage: 60Vrms max.
- Dielectric withstanding voltage: 200Vrms max.
- Insulator resistance: 500MR min.
- VSWR: 1.65: 1 max.
- Insertion loss: -1.45dB max.
- Sheath colour black
- Temperature range-20-+70 degC
- IP67
RF Communications
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP005944 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
