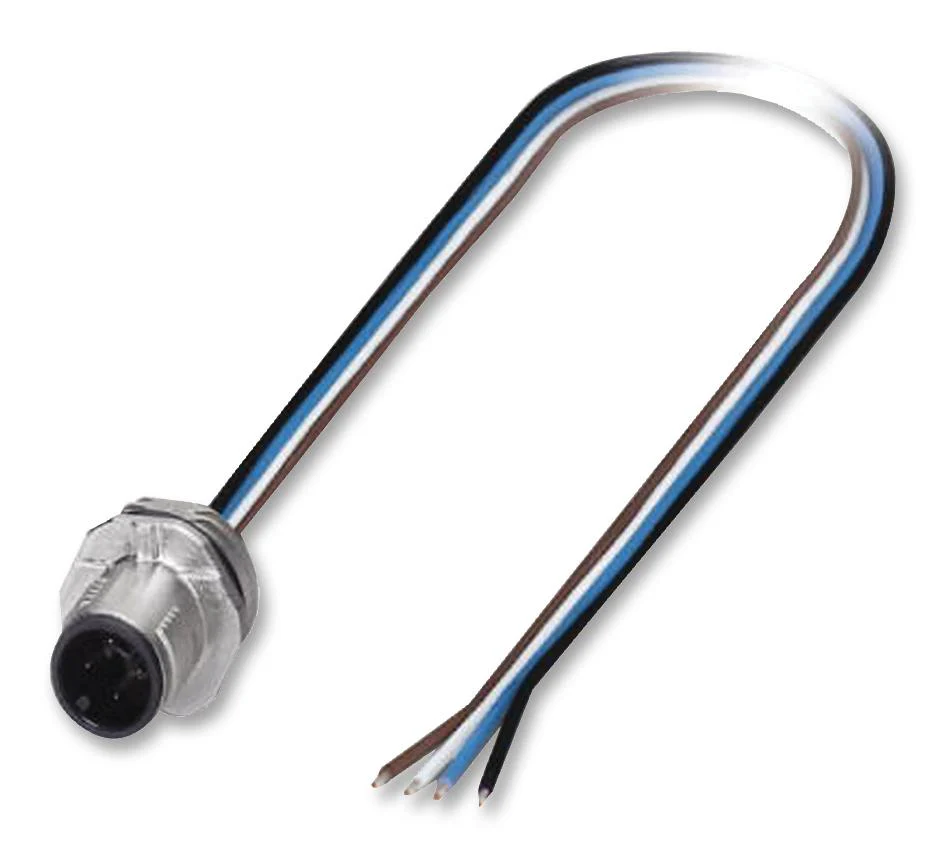

Phoenix Contact SACC-E-MS-4CON-M16/05 SCO SACC-E-MS-4CON-M16/05 SCO Sensor Cable M12 Plug Free End 4 Positions 500 mm 19.6 "
The SACC-E-MS-4CON-M16/0,5 SCO is a 0.5m A-coded Sensor Cable with 4-position flush-type plug to free end connection. This sensor cable comes with CuZn contacts, PA 66 (polyamide 66) contact carrier and nickel-plated zinc die-cast knurls.
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- Standard pin assignments and coding for power transmission with uniform design-in design
- For high transmission safety - Shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times
- FKM sealing
- TPE conductor insulation
- 4A Rated current at 40°C
- 250V Rated voltage
- 2.5kV Rated surge voltage
- >=100MR Insulation resistance
- 0.34mm² Conductor cross section
- IP67 Protection
Sensing & Instrumentation
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SACC-E-MS-4CON-M16/0,5 SCO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
