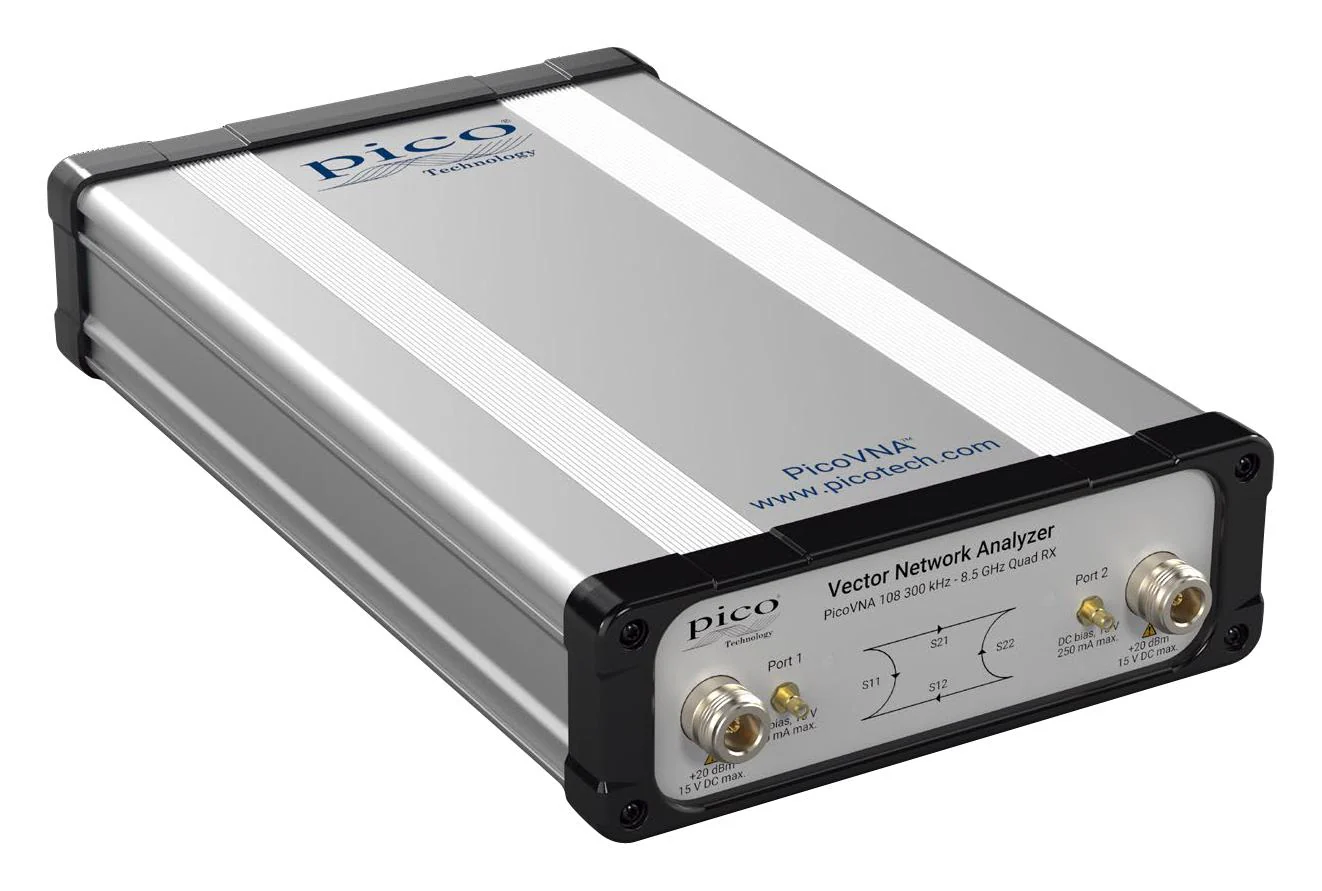

Pico Technology PICOVNA 108 PICOVNA 108 Vector Network Analyser PC Based 300kHz to 8.5GHz 3 Years
- Professional USB-controlled, laboratory grade 8.5GHz vector network analyser
- 300KHz to 8.5GHz operation
- High speed of > 5500 dual port S-parameters per second
- Quad RX four-receiver architecture for best accuracy
- 124dB dynamic range at 10Hz bandwidth
- 0.005dB RMS trace noise at maximum bandwidth of 140KHz
- Half-rack, small-footprint, lightweight package
- PC-controlled over USB from a Microsoft Windows interface
- Reference plane offsetting and de-embedding, time domain and port impedance transformations
- Tabular and graphic print and save formats
PicoVNA vector network analyser, PS010 Universal input 12 V 4.5 A output power supply, PA153 PicoVNA 106 carry case, DI111 PicoVNA 2 software and documents on USB flash drive, TA486 PicoWrench RF combination wrench for N, SMA, PC3.5 and K-type connectors, MI106 Pico blue USB 2.0 cable 1.8m.
Product details
| Vector Network Analyzer Type | PC Based |
| Test Frequency Range | 300kHz to 8.5GHz |
| Sensitivity dBm | - |
| Manufacturer Warranty | 3 Years |
| Product Range | - |
| Plug Type | - |
Other details
| Brand | PICO TECHNOLOGY |
| Part Number | PICOVNA 108 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
