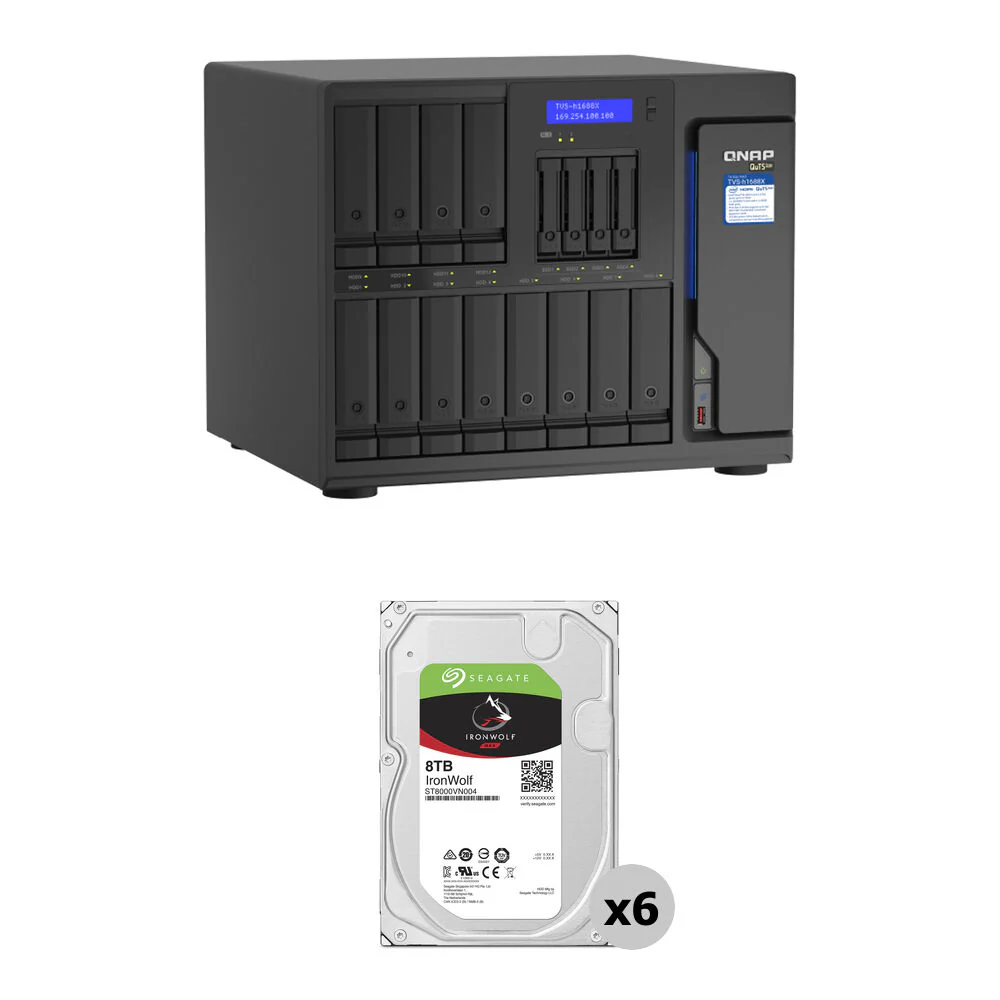

QNAP 48TB TVS-h1688X 16-Bay NAS Enclosure Kit (6 x 8TB)

QNAP 48TB TVS-h1688X 16-Bay NAS Enclosure Kit (6 x 8TB)

Kit Contains:
QNAP TVS-h1688X 16-Bay NAS Enclosure
Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (OEM)

This Kit combines the QNAP TVS-h1688X 16-Bay NAS Enclosure with six Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDDs for a total storage capacity of 48TB.

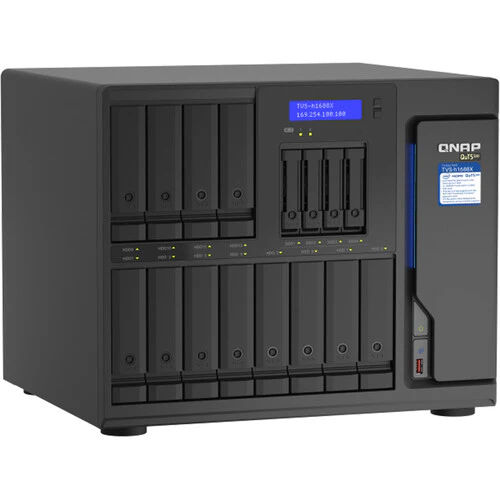

QNAP TVS-h1688X 16-Bay NAS Enclosure

Expand your network storage capacity to support demanding workflows such as video post-production and archiving with the TVS-h1688X 16-Bay NAS Enclosure from QNAP. This 16-bay NAS enclosure includes twelve 3.5" and four 2.5" SATA III drive bays. Installed drives can be configured in RAID 0, 1, 5, 6, 10, 50, or 60 mode with support for triple parity and triple mirror setups for added data security. Performance can be further enhanced by installing up to two M.2 PCIe solid-state cache drives into the available slots. Combined with its 3.3 GHz Intel Xeon W-1250 six-core processor and 32GB of ECC memory, which can be expanded to 128GB, the TVS-h1688X-W1250-32G can deliver sequential read speeds of up to 1403 MB/s. With four 2.5G Ethernet and two 10G Ethernet ports, this NAS enclosure is designed to deliver the bandwidth to support virtualization, intensive file access, large backup and restoration tasks, and media transfers.

PCIe Expansion
Three PCIe 3.0 ports are available for compatible expansions such as Thunderbolt 3 adapters, high-speed network interface cards, and graphics cards. A dual-port 10G Ethernet adapter occupies the PCIe 3.0 x8 slot.
USB 3.2 Gen 2 Support
Connect compatible peripherals to the four USB 3.2 Gen 2 Type-A and two Type-C ports to transfer up to 10 Gb/s directly to the NAS.
Real-Time 4K Transcoding
Connect a compatible 4K, 30 Hz monitor to the HDMI port to watch media in real-time, driven by the integrated Intel UHD Graphics P630 GPU.
High Versatility
The TVS-h1688X-W1250-32G supports virtual machines and containerized apps in addition to centralized storage, backup, sharing, disaster recovery, and storage expansion.
QuTS Hero Operating System
By combining the app-based QTS operating system with the 128-bit ZFS file system, QuTS hero provides flexible storage management, comprehensive data protection, and optimized performance to handle demanding applications including high-bandwidth storage management, virtualization, and collaborative media workflows.
UPC: 885022020423
Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (OEM)

Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.

General Features
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
IronWolf Health Management
IronWolf Health Management focuses on prevention, intervention, and recovery
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
Rotational Vibration (RV) Sensors
IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
Multi-User Environments
IronWolf provides a workload rate of 180TB per year, which means that multiple users can upload and download data to the NAS server, knowing that IronWolf can handle the workload, whether you are a creative professional or small business
Designed for Always-On, Always-Accessible 24/7 Performance
Access data on your NAS virtually any time, whether remotely or on site
Cache Memory
IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
1.0 Million Hours MTBF | Limited 3-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24x7 Performance
Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
1-8 bay business network attached storage (NAS)
Desktop RAIDs and servers
Multimedia server storage
Private cloud
UPC: 763649125069

Items Included

  • QNAP TVS-h1688X 16-Bay NAS Enclosure
    • Power Cable
    • Ethernet Cable
    • 36 x Flat Head Screws for 3.5" HDDs
    • 36 x Flat Head Screws for 2.5" HDDs
    • 2 x M.2 SSD Heatsink
    • 2 x Drive Bay Keys
    • Limited 3-Year Manufacturer Warranty
  • 6 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (OEM)
    • Limited 3-Year Manufacturer Warranty

Additional Resources

Guides & Manuals

    Kit Contains:
    QNAP TVS-h1688X 16-Bay NAS Enclosure
    Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (OEM)

    QNAP TVS-h1688X 16-Bay NAS Enclosure

    Key Specs
    RAID
    Yes: Supported RAID Modes: 6 / 10 / 50 / 5 / 60 / 0 / 1
    Number of Bays
    2x M.2 (2280/22110) NVMe
    12x 2.5"/3.5" SATA II, SATA III
    4x 2.5" SATA II, SATA III
    Inputs/Outputs
    4x RJ45 2.5GbE
    2x RJ45 10GbE
    2x USB-C 3.1/3.2 Gen 2
    4x USB-A 3.1/3.2 Gen 2
    1x HDMI
    Computing
    CPU
    6-Core: 3.3 to 4.7 GHz
    Processor
    Intel Xeon W-1250
    GPU
    Intel UHD Graphics 630
    Memory
    32 GB ECC DDR4
    RAM Configuration / Capacity
    2x User-Replaceable 16 GB / 4 Slots Supporting up to 128 GB
    Drives
    RAID
    Yes: Supported RAID Modes: 6 / 10 / 50 / 5 / 60 / 0 / 1
    General
    Number of Bays
    2x M.2 (2280/22110) NVMe
    12x 2.5"/3.5" SATA II, SATA III
    4x 2.5" SATA II, SATA III
    Inputs/Outputs
    4x RJ45 2.5GbE
    2x RJ45 10GbE
    2x USB-C 3.1/3.2 Gen 2
    4x USB-A 3.1/3.2 Gen 2
    1x HDMI
    Media Card Slots
    No
    PCI Expansion
    1x PCIe 3.0
    2x PCIe 3.0
    Networking
    Link Aggregation and Failover Support
    No
    iSCSI Support
    Yes: 256 LUN
    Software
    Installed Operating System
    QTS 4.5
    OS Compatibility
    macOS 10.10 or Later
    Windows 7 or Later
    Windows Server 2008 or Later
    UNIX
    Ubuntu 10.4 or Later
    CentOS 7 or Later
    Linux
    Mobile App Compatible
    No
    Security
    Encryption
    Yes, 256-Bit AES
    Security Features
    Kensington Security Slot, Lockable Bay Door
    VPN Connections
    100 (Client)
    Electrical
    Input Power
    100 to 240 VAC, 60 / 50 Hz
    Power Consumption
    108.67 W (Typical)
    91.26 W (Idle)
    PSU
    1 x 500 W
    Physical
    Operating Conditions
    32 to 72?F / 0 to 40?C at 5 to 95% Humidity
    Storage Conditions
    -4 to 158?F / -20 to 70?C
    Certifications
    No
    Cooling
    3x 80 mm Fans
    Noise Level
    25.8 dBA
    Dimensions
    14.56 x 12.59 x 11.96" / 36.98 x 31.98 x 30.38Ā cm
    Weight
    29.6Ā lb / 13.4Ā kg
    Packaging Info
    Package Weight
    37 lb
    Box Dimensions (LxWxH)
    19.3 x 18.1 x 17.4"

    All product and company names are trademarksā„¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
