RCF Bi-Directional 5" Full-Range Sound Projector
RCF BD-5EN Overview
BD 5EN is a 20 W weatherproof sound projector in compliance with EN 54-24:2008 regulations. It is suitable for all those installations where high intelligibility for alarm messages broadcasting and great sound reproduction quality are required; moreover, thanks to its IP 65 protection grade, it can be installed both indoor and outdoor. A modern and endearing design makes it the perfect product for environments where projectors are intended also as architectural elements and contribute to improve global aesthetics.
- 5'' full range speaker for alarm voice messages broadcasting and high quality background music
- ABS cabinet with steel mesh grille
- It can be installed both indoors and outdoors (IP 65 protection grade)
- Equipped with transformer for 100 V (70 V) constant voltage lines
- Internal power setting

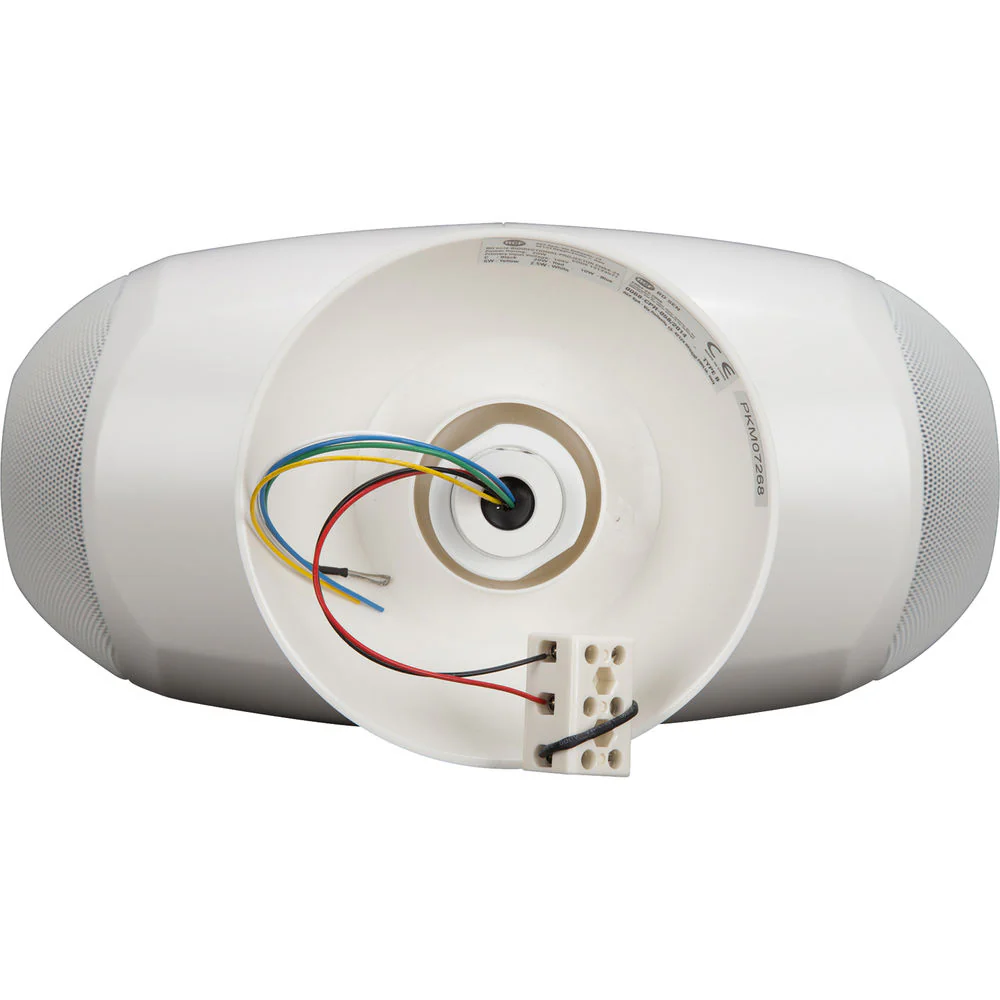

- Ceramic screw terminal for connection
- Internal thermal fuse
In the Box
- RCF Bi-Directional 5" Full-Range Sound Projector
RCF BD-5EN Specs
| Product Type | Sound projector - for PA system |
| Features | Bi-directional |
| Protection | Weatherproof |
| Enclosure Color | White |
| Enclosure Material | ABS plastic |
| Speaker Type | Passive |
| Nominal Output Power | 20 Watt |
| Max (RMS) Output Power | 40 Watt |
| Frequency Response | 150 - 18000 Hz |
| Max Output Level (Max SPL) | 99 dB |
| Sensitivity | 86 dB |
| Amplifier | Integrated |
| Integrated Transformer | 70V/100V operation |
| Coverage | 130Ā° x 130Ā° |
| Recommended Placing | Indoor / outdoor |
| Driver Details | Speaker: 2 x full-range driver - 5" |
| Compliant Standards | IP65 |
| Width | 7.1 in |
| Depth | 13.4 in |
| Height | 7.1 in |
| Weight | 7.91 lbs |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
